New York Small-Plate Mortise Entry Set with Rosette Interior
Description

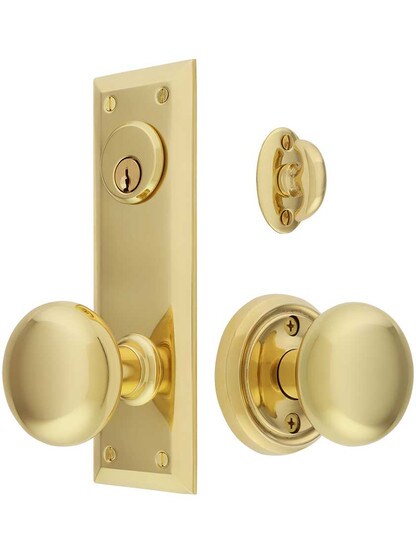

This New York Small-Plate Mortise Entry Set with Rosette Interior is made the old fashioned way - from stamped and wrought sheet brass. The timeless combination of plain beveled plates and simple round knobs looks as good today as it did a hundred years ago. A premium quality, precision made mortise lock completes the set. Choose from five period finish options.

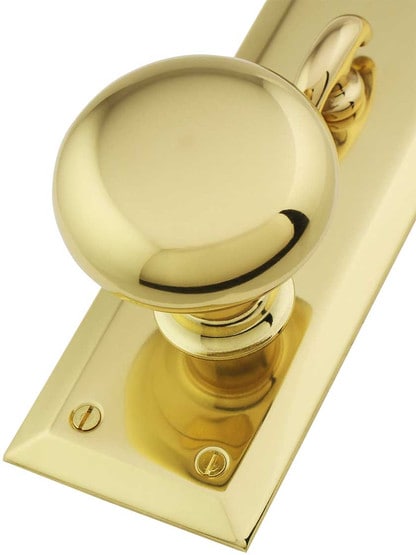

Dimensions. Exterior door plate: 7" H x 2 1/4" W and projects 1/4". Knobs: 2 1/4" diameter.

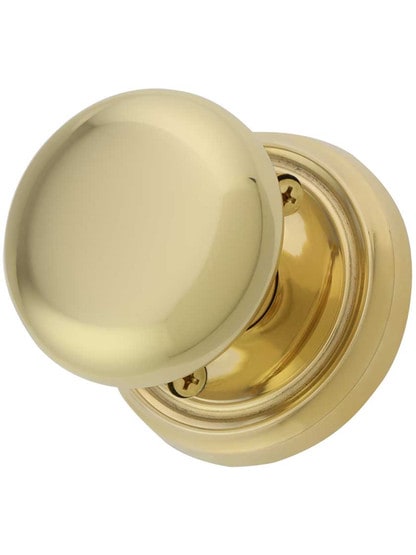

Interior rosette: 2 3/4" Diameter. Thumbturn plate: 1 3/4" H x 1 3/16" W.

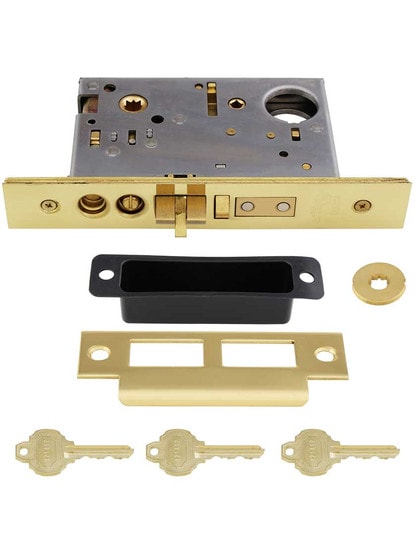

Mortise lock dimensions: Lock case: 5 1/2" H x 13/16" T x 3 3/4" W. Lock face plate: 8" H x 1 1/4" W. The brass strike plate measures 4 7/8" tall by 1 1/4" wide with a 5/8" tongue projection. The lock is field reversible for left or right hand doors and includes a 1 1/8" keyed cylinder and three standard keys.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
This set is designed to fit doors 1 3/4" thick +/- 1/8" (range 1 5/8" to 1 7/8" ).
Dimensions. Exterior door plate: 7" H x 2 1/4" W and projects 1/4". Knobs: 2 1/4" diameter.
Interior rosette: 2 3/4" Diameter. Thumbturn plate: 1 3/4" H x 1 3/16" W.
Mortise lock dimensions: Lock case: 5 1/2" H x 13/16" T x 3 3/4" W. Lock face plate: 8" H x 1 1/4" W. The brass strike plate measures 4 7/8" tall by 1 1/4" wide with a 5/8" tongue projection. The lock is field reversible for left or right hand doors and includes a 1 1/8" keyed cylinder and three standard keys.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
This set is designed to fit doors 1 3/4" thick +/- 1/8" (range 1 5/8" to 1 7/8" ).
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Entry | Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware
Pictured in Polished Brass Finish. Your hardware will match the finish selected.
Hardware Tip
Entry Mortise Lock: A large mortise lock that is operated by knobs, levers or thumb latches and has either a modern keyed cylinder or a skeleton key operated deadbolt.
