New York Grip Handle Mortise Entry Set With Rosette Interior Set
Description

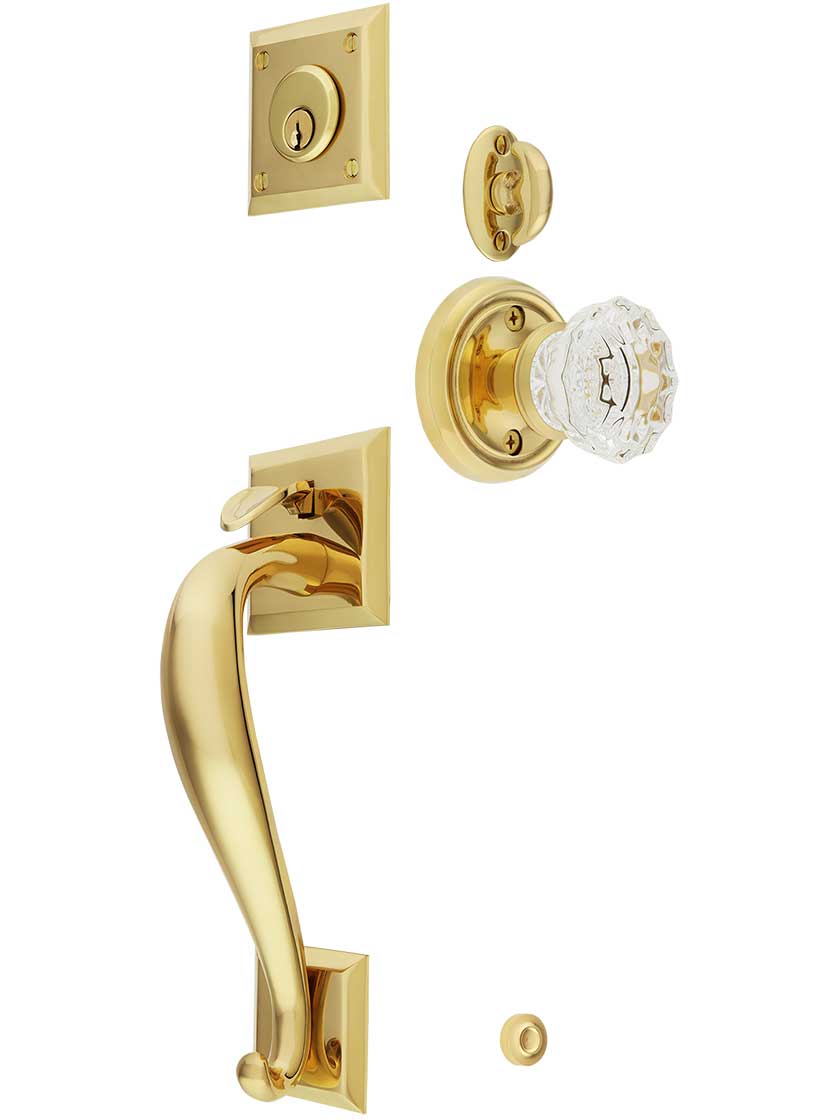

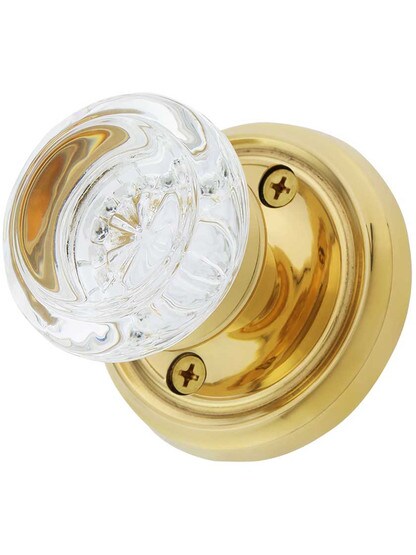

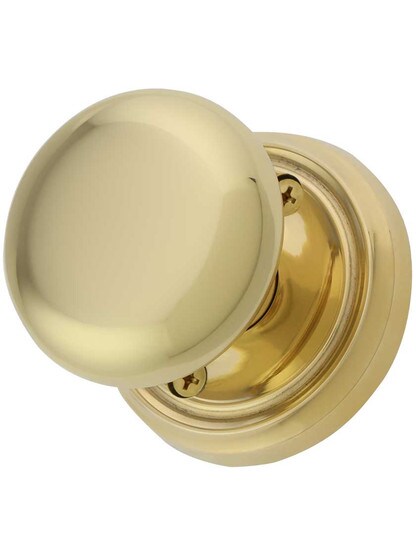

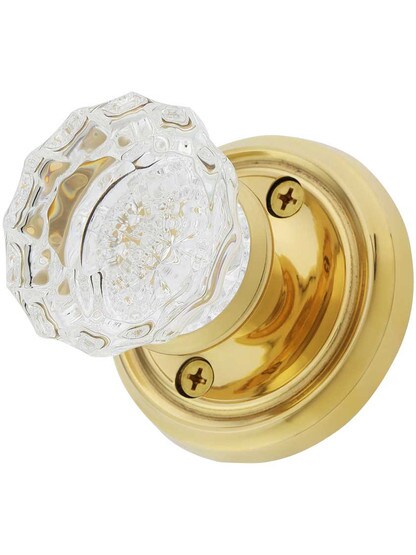

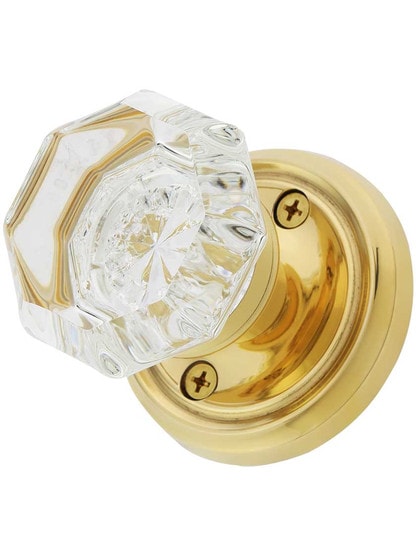

Our solid brass New York entry set is a timeless classic. Dating from the early 20th century, this versatile design works with everything from colonial revival to mid-century modern. It features a handsome "S" grip handle, premium forged interior rosette, and a heavy-duty, precision made mortise lock. Choose from 4 knob and 2 finish options! The lock has egress and is available with 2 1/2" or 2 3/4" backset.
Dimensions. Exterior handle: 9 1/2" H by 2 3/4" W (including the bevelled mounting plates). Projection: 3". Center to center distance for mounting bolts: 6 1/2". Handle is installed with two steel thru bolts (brass bolt covers for inside of door included).

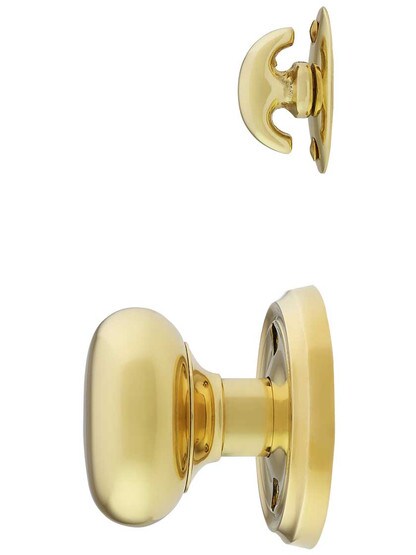

Cylinder plate: 2 1/2" H by 2 1/2" W and projects 1/4". Interior rosette: 2 3/4" Diameter. Thumbturn plate: 1 3/4" H x 1 3/16" W.

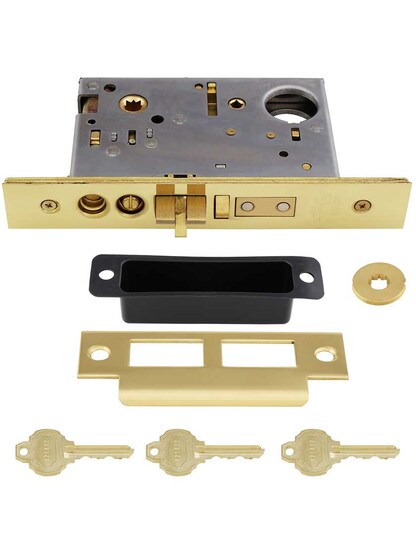

Mortise lock dimensions: Lock case: 5 1/2" H x 13/16" T x 3 3/4" W. Lock face plate: 8" H x 1 1/4" W. The brass strike plate measures 4 7/8" tall by 1 1/4" wide with a 5/8" tongue projection. The lock is field reversible for left or right hand doors and includes a 1 1/8" keyed cylinder and three standard keys.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
This set is designed to fit doors 1 3/4" thick +/- 1/8" (range 1 5/8" to 1 7/8" ).
Dimensions. Exterior handle: 9 1/2" H by 2 3/4" W (including the bevelled mounting plates). Projection: 3". Center to center distance for mounting bolts: 6 1/2". Handle is installed with two steel thru bolts (brass bolt covers for inside of door included).
Cylinder plate: 2 1/2" H by 2 1/2" W and projects 1/4". Interior rosette: 2 3/4" Diameter. Thumbturn plate: 1 3/4" H x 1 3/16" W.
Mortise lock dimensions: Lock case: 5 1/2" H x 13/16" T x 3 3/4" W. Lock face plate: 8" H x 1 1/4" W. The brass strike plate measures 4 7/8" tall by 1 1/4" wide with a 5/8" tongue projection. The lock is field reversible for left or right hand doors and includes a 1 1/8" keyed cylinder and three standard keys.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
This set is designed to fit doors 1 3/4" thick +/- 1/8" (range 1 5/8" to 1 7/8" ).
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Entry | Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware
Pictured in Un-Lacquered Brass Finish. Your hardware will match the finish selected.
Hardware Tip
Entry Mortise Lock: A large mortise lock that is operated by knobs, levers or thumb latches and has either a modern keyed cylinder or a skeleton key operated deadbolt.
