New York Large-Plate Mortise Entry Set with Rosette Interior
Description
Give your door a vintage look with our classic New York Large-Plate Mortise Entry Set with Rosette Interior. Dating from the early 20th-century, this tightly tailored design suits everything from Colonial-Revival to Mid-Century modern. The set includes premium forged-brass plates, wrought-brass knobs, and a heavy-duty, precision made mortise lock. Choose from and array of period finish options.

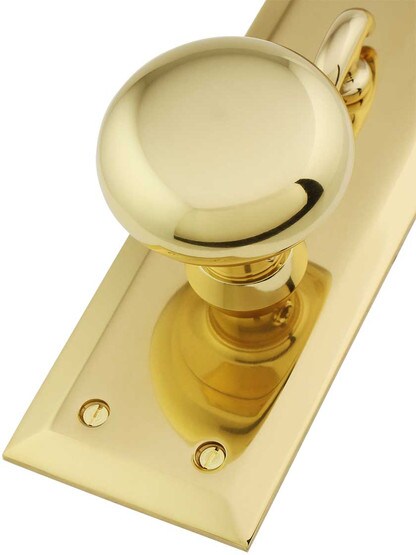

Dimensions. Exterior door plate: 8" H x 2 1/2" W and projects 1/4". Knobs: 2 1/4" diameter.

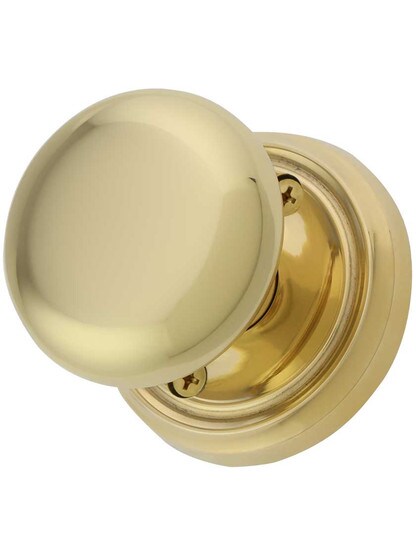

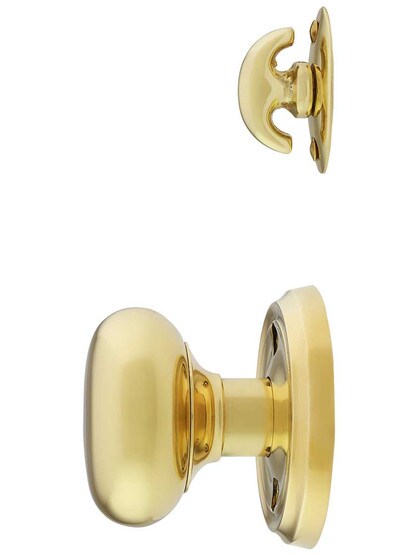

Interior rosette: 2 3/4" Diameter. Thumbturn plate: 1 3/4" H x 1 3/16" W.

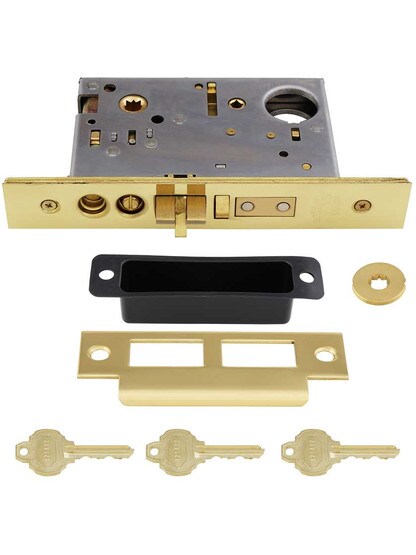

Mortise lock dimensions: Lock case: 5 1/2" H x 13/16" T x 3 3/4" W. Lock face plate: 8" H x 1 1/4" W. The brass strike plate measures 4 7/8" tall by 1 1/4" wide with a 5/8" tongue projection. The lock is field reversible for left or right hand doors and includes a 1 1/8" keyed cylinder and three standard keys.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
This set is designed to fit doors 1 3/4" thick +/- 1/8" (range 1 5/8" to 1 7/8" ).
Dimensions. Exterior door plate: 8" H x 2 1/2" W and projects 1/4". Knobs: 2 1/4" diameter.
Interior rosette: 2 3/4" Diameter. Thumbturn plate: 1 3/4" H x 1 3/16" W.
Mortise lock dimensions: Lock case: 5 1/2" H x 13/16" T x 3 3/4" W. Lock face plate: 8" H x 1 1/4" W. The brass strike plate measures 4 7/8" tall by 1 1/4" wide with a 5/8" tongue projection. The lock is field reversible for left or right hand doors and includes a 1 1/8" keyed cylinder and three standard keys.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
This set is designed to fit doors 1 3/4" thick +/- 1/8" (range 1 5/8" to 1 7/8" ).
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Entry | Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware

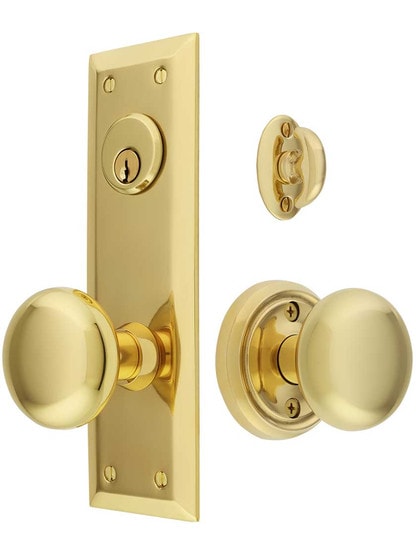

Pictured in Polished Brass Finish. Your hardware will match the finish selected.
Hardware Tip
Entry Mortise Lock: A large mortise lock that is operated by knobs, levers or thumb latches and has either a modern keyed cylinder or a skeleton key operated deadbolt.
