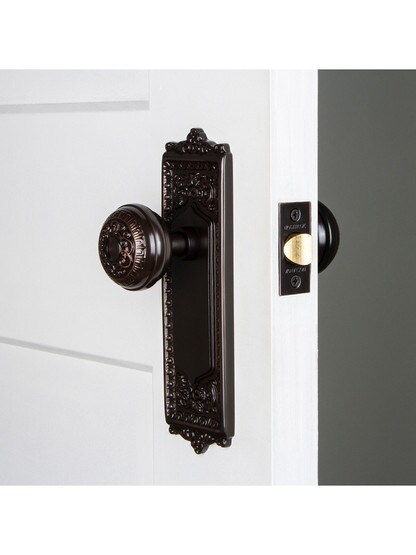

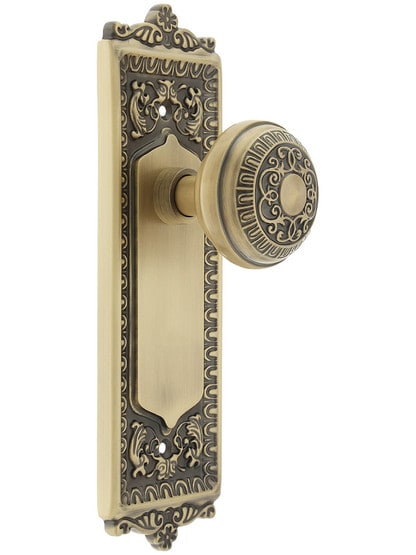

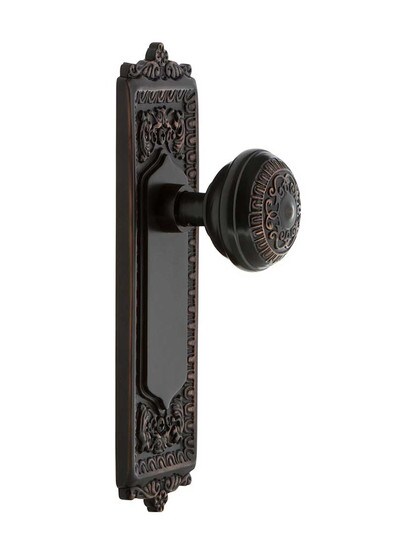

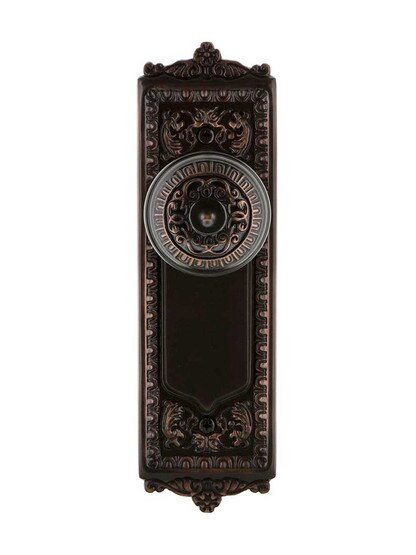

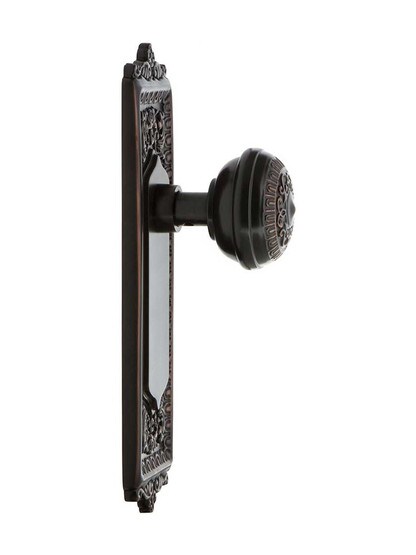

Egg & Dart Style Door Set With Egg & Dart Knobs
Description
From the White House to your house, this imposing door set is at home in any formal setting. The large back plates and knobs, lavished with traditional neo-classical designs, add instant elegance to your doors. Inspired by Corbin's 1905 "Mantua" pattern, our modern recreation is finely made of solid forged brass. Enduring quality, simple installation, and our five year warranty make this an excellent choice for restoration and new construction alike.
Door set dimensions: doorknobs measure 2 1/4" in diameter. Back plates are 8 3/4" H x 2 5/8" W.
Latch dimensions: Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W.
Standard door range: 1 3/8" to 1 3/4" thick.
Door set dimensions: doorknobs measure 2 1/4" in diameter. Back plates are 8 3/4" H x 2 5/8" W.
Latch dimensions: Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W.
Standard door range: 1 3/8" to 1 3/4" thick.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Passage | Latch but no lock - The knobs or levers turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt. |
|
Privacy | Latch and lock - This set has a privacy pin next to the inside knob or lever which is pushed in to lock. The door is unlocked by turning the knob or lever on the inside and can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors. |
|
Double Dummy | No latch or lock - the knobs or levers on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door. |
|
Single Dummy | No latch or lock - Like a cabinet knob, the knob or lever mounts on one side of the door and doesn't turn or operate a latch. Typically found on closet or pantry doors. This set can't be installed on a pre-drilled door. |
|
Included Hardware
Pictured in Polished Brass. Your hardware will match the finish selected. Hardware not included with Dummy Sets.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. These are typically used for modern pre-bored doors.
