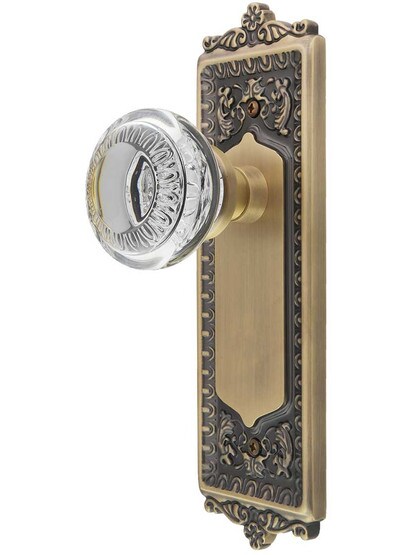

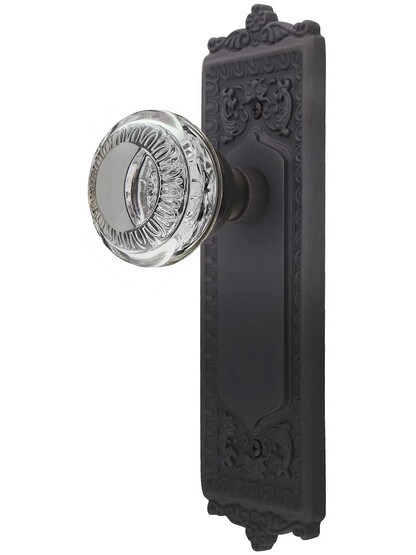

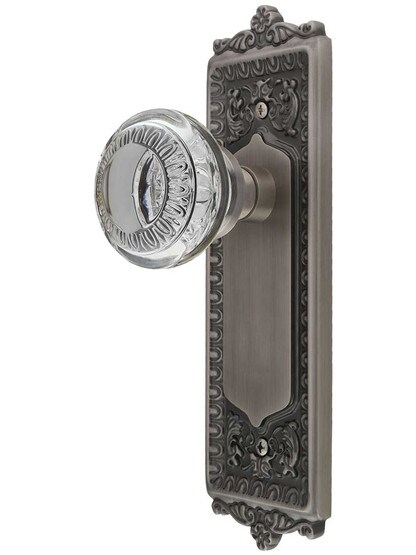

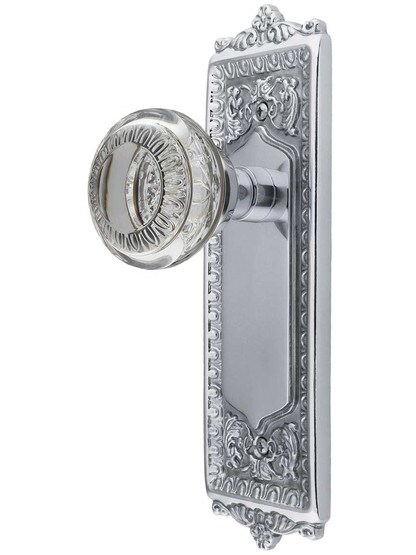

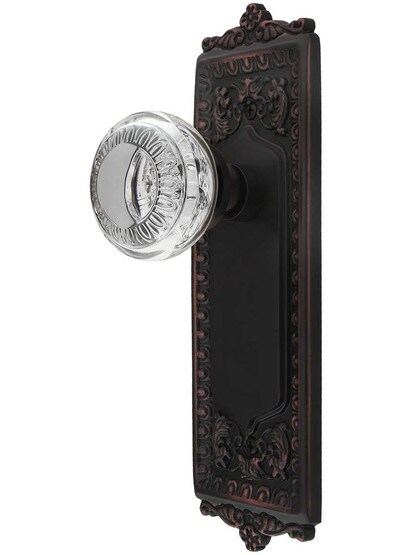

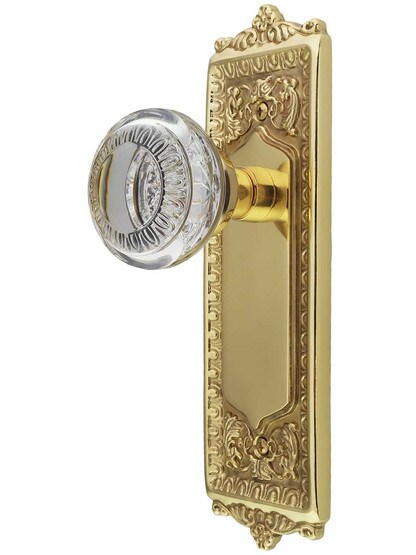

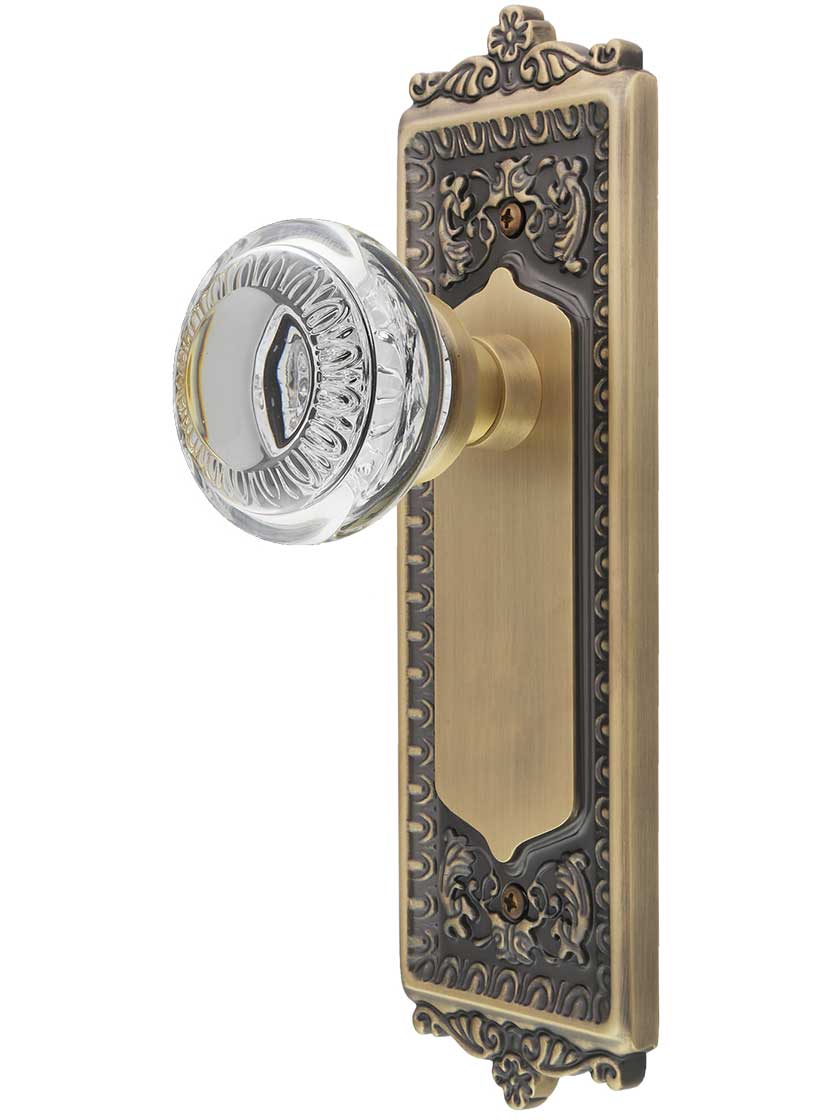

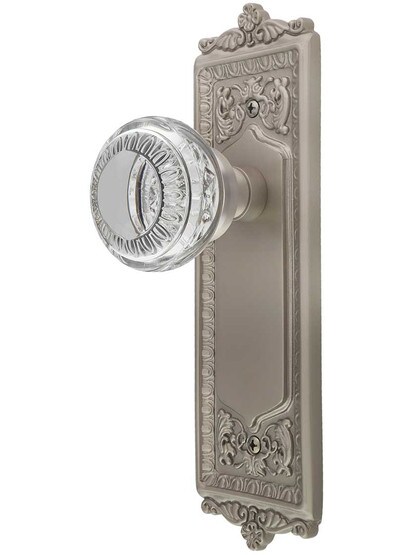

Egg & Dart Style Door Set with Ovolo Crystal-Glass Knobs
Description
Express your love of fine design, with our Egg and Dart Style Door Set with Ovolo Crystal-Glass Knobs. This imposing, door set features large back plates, lavished with traditional neo-classical designs, giving your doors instant elegance. Inspired by Corbin's 1905 Mantua pattern, our modern recreation is finely made of solid, forged brass. Enduring quality and simple installation make this an excellent choice for any restoration or new construction. Choose from an array of classic finish options.
Door set dimensions: Doorknobs: 2 3/16" D. Back plates: 8 3/4" H x 2 5/8" W.
Latch dimensions: Latch case: 7/8" diameter. Face plate: 2 1/4" H x 1" W.
Standard door range: 1 3/8" to 1 3/4" thick.
Door set dimensions: Doorknobs: 2 3/16" D. Back plates: 8 3/4" H x 2 5/8" W.
Latch dimensions: Latch case: 7/8" diameter. Face plate: 2 1/4" H x 1" W.
Standard door range: 1 3/8" to 1 3/4" thick.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Passage | Latch but no lock - The knobs or levers turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt. |
|
Privacy | Latch and lock - This set has a privacy pin next to the inside knob or lever which is pushed in to lock. The door is unlocked by turning the knob or lever on the inside and can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors. |
|
Double Dummy | No latch or lock - the knobs or levers on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door. |
|
Single Dummy | No latch or lock - Like a cabinet knob, the knob or lever mounts on one side of the door and doesn't turn or operate a latch. Typically found on closet or pantry doors. This set can't be installed on a pre-drilled door. |
|
Included Hardware
Pictured in Polished Brass. Your hardware will match the finish selected. Hardware not included with Dummy Sets.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. These are typically used for modern pre-bored doors.
