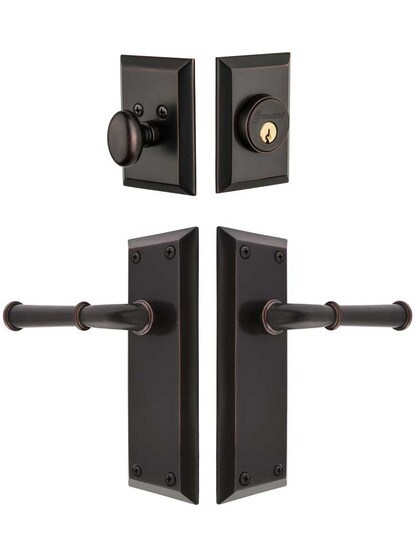

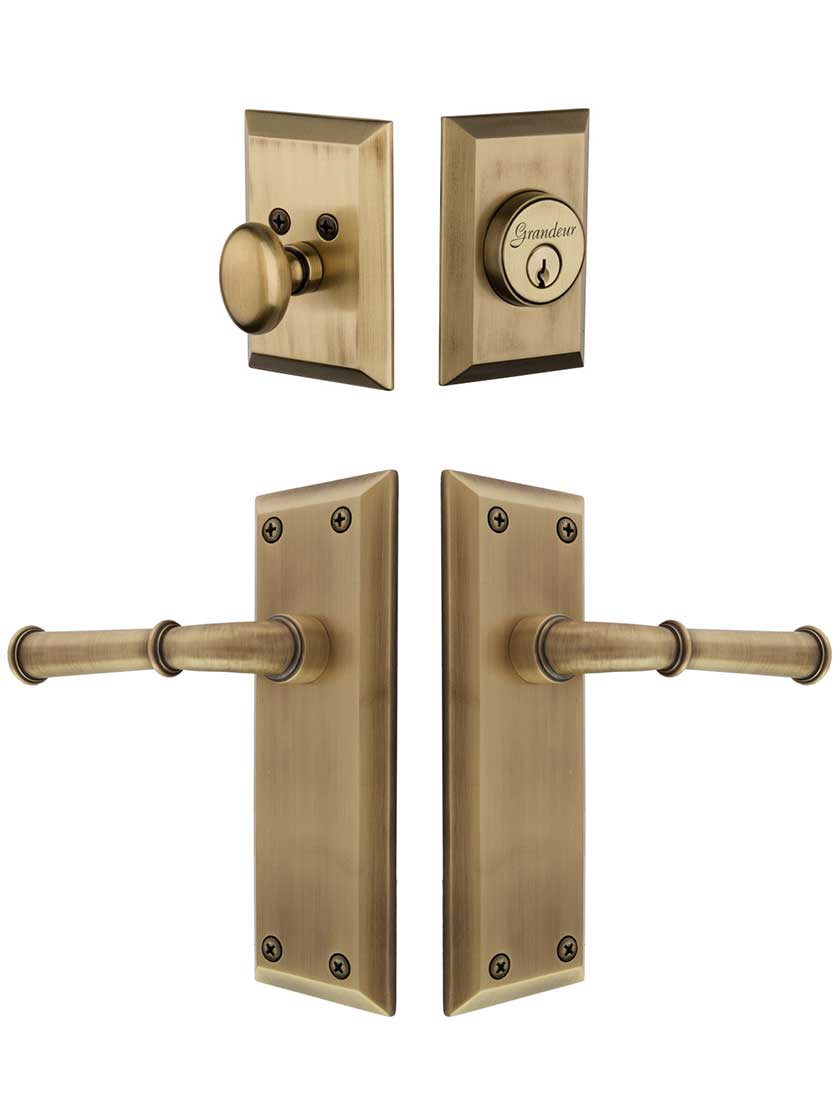

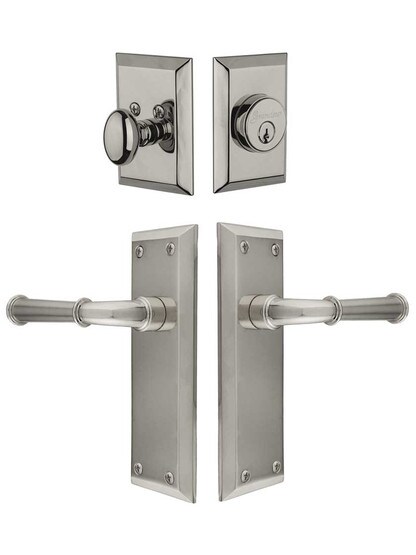

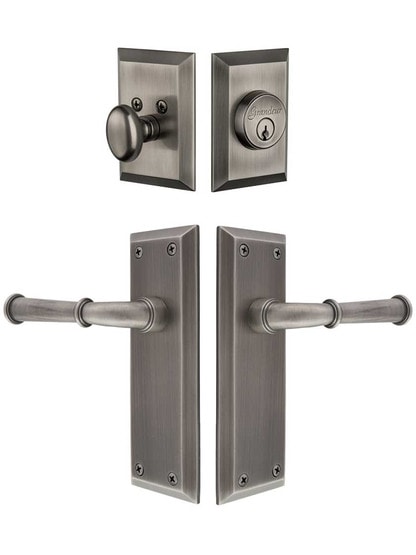

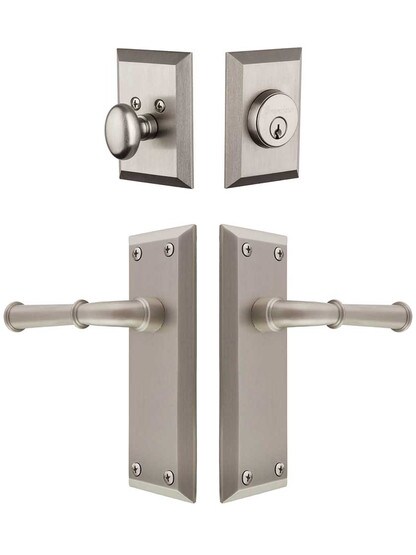

Grandeur Fifth-Avenue Entry Door Set with Georgetown Levers
Description
The Grandeur Fifth-Avenue Entry Door Set with Georgetown Levers has a universal appeal that works well with almost any home. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals or home owners alike. Exceptional solid brass forgings and a 10-year warranty make Grandeur entry hardware the perfect choice for your fine home.
Door set dimensions: Georgetown levers measure 4 3/4" W x 3/4" H x 2 5/8" projection. Backplates are 7 1/4" H x 2 1/2" W.
Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.
Deadbolt specs: Decorative face plates are 3 1/2" H x 2 1/2" W. The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order.
This set will fit doors from 1 3/4" - 2" in thickness, with a minimum 5 1/2" center to center boring for the latch and deadbolt. A "thick door kit" for doors up to 2 1/4" in thickness is available for a small fee. Please call for details.
Door set dimensions: Georgetown levers measure 4 3/4" W x 3/4" H x 2 5/8" projection. Backplates are 7 1/4" H x 2 1/2" W.
Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.
Deadbolt specs: Decorative face plates are 3 1/2" H x 2 1/2" W. The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order.
This set will fit doors from 1 3/4" - 2" in thickness, with a minimum 5 1/2" center to center boring for the latch and deadbolt. A "thick door kit" for doors up to 2 1/4" in thickness is available for a small fee. Please call for details.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Entry | Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware

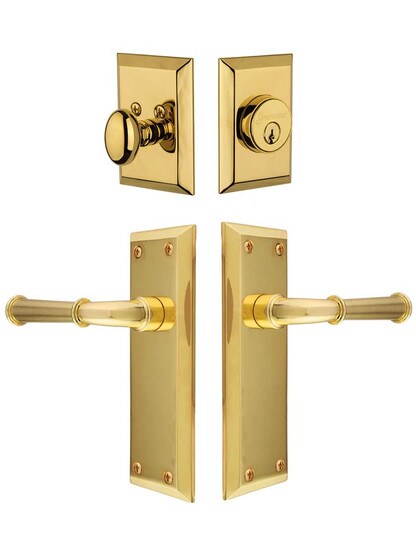

Pictured in PVD Finish. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. These are typically used for modern pre-bored doors.
