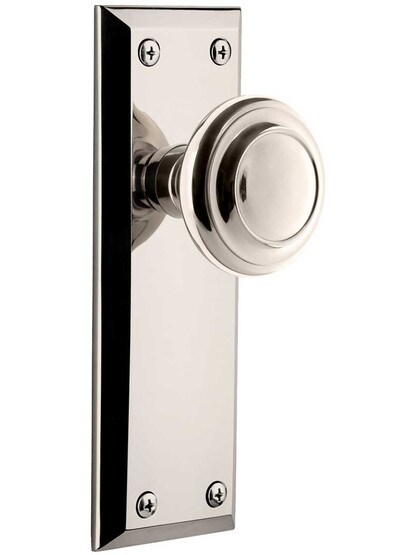

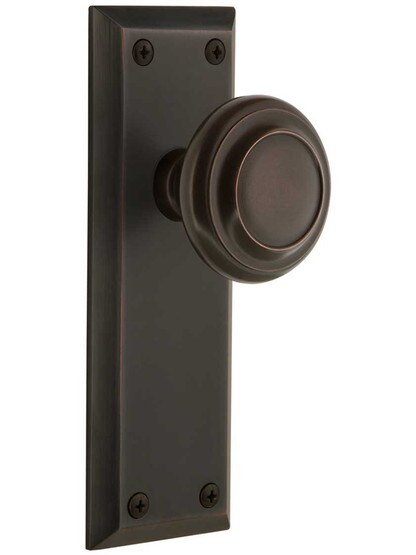

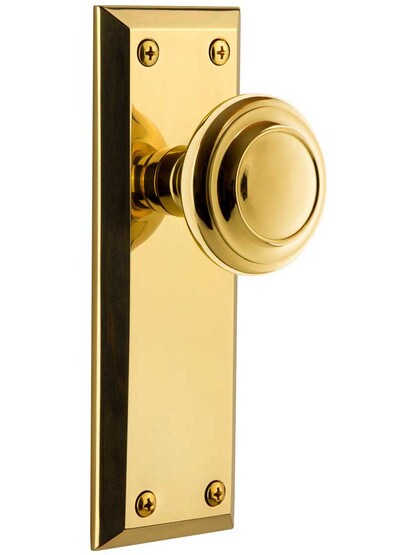

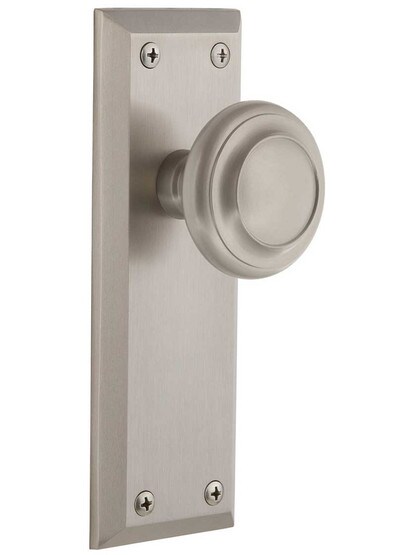

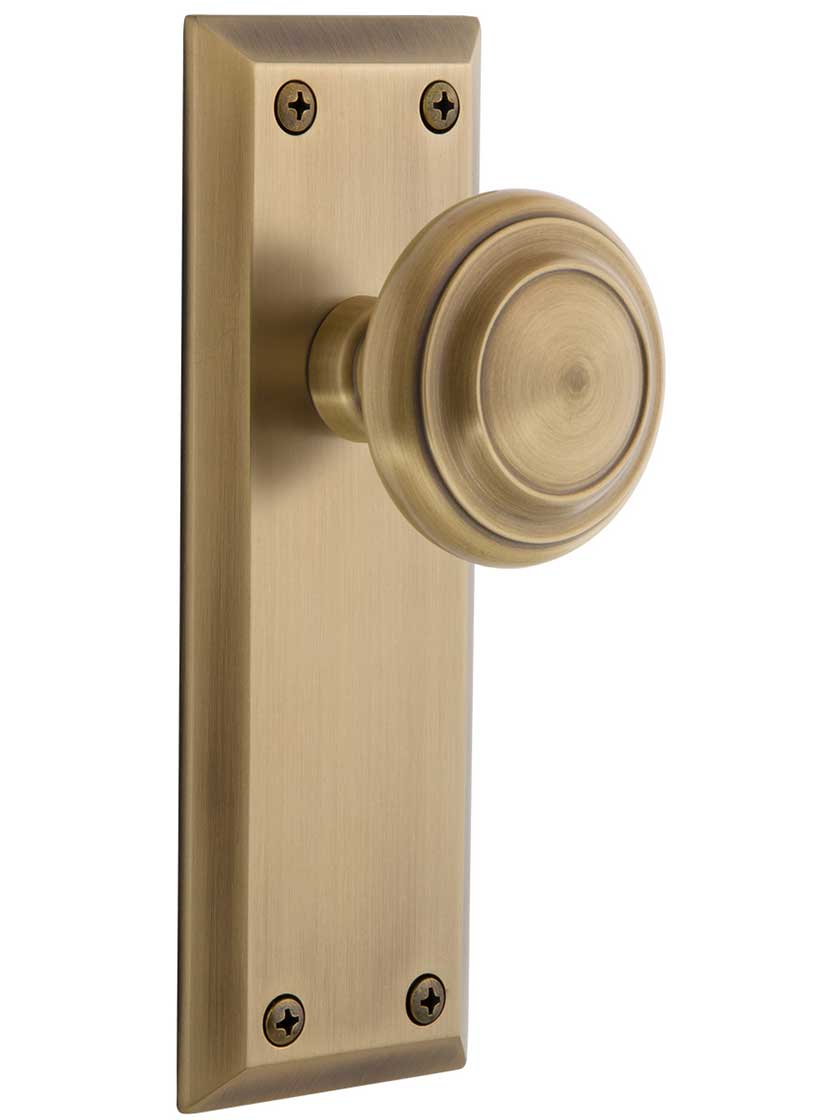

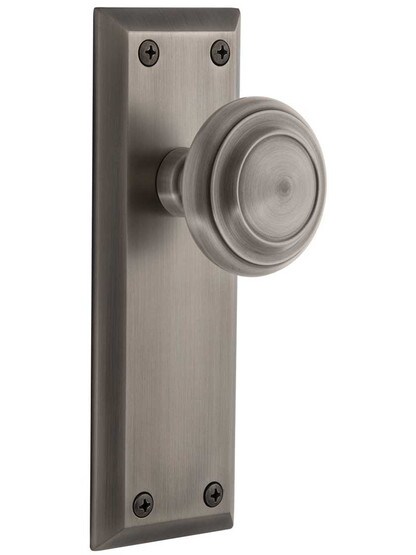

Grandeur Fifth-Avenue Door Set with Circulaire Knobs
Description
The Grandeur Fifth-Avenue Rosette Door Set with Circulaire Knobs has a universal appeal that works well with almost any home. Constructed of solid forged brass, this classic design is exhibited in refined detail, while smooth, yet sturdy mechanics offer silk-like operation. Easy and quick installation makes restoration or new construction efficient and exact.
Door set dimensions: circulaire doorknobs measure 2 3/8" D. Projection: 2 1/2". Backplates are 7 1/4" H x 2 1/2" W.
Latch dimensions: Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W. Standard door range: 1 3/8" to 1 3/4" thick. A "thick door kit" for doors up to 2 1/4" in thickness is available for a small fee.
Door set dimensions: circulaire doorknobs measure 2 3/8" D. Projection: 2 1/2". Backplates are 7 1/4" H x 2 1/2" W.
Latch dimensions: Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W. Standard door range: 1 3/8" to 1 3/4" thick. A "thick door kit" for doors up to 2 1/4" in thickness is available for a small fee.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Passage | Latch but no lock - The knobs turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt. |
|
Privacy | Latch and lock - This set has a privacy pin next to the knob which is pushed to lock and pulled to unlock. The door can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors. |
|
Double Dummy | No latch or lock - the knobs on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door. |
|
Included Hardware
Pictured in Polished Brass. Your hardware will match the finish selected. Hardware not included with Dummy Sets.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. These are typically used for modern pre-bored doors.
