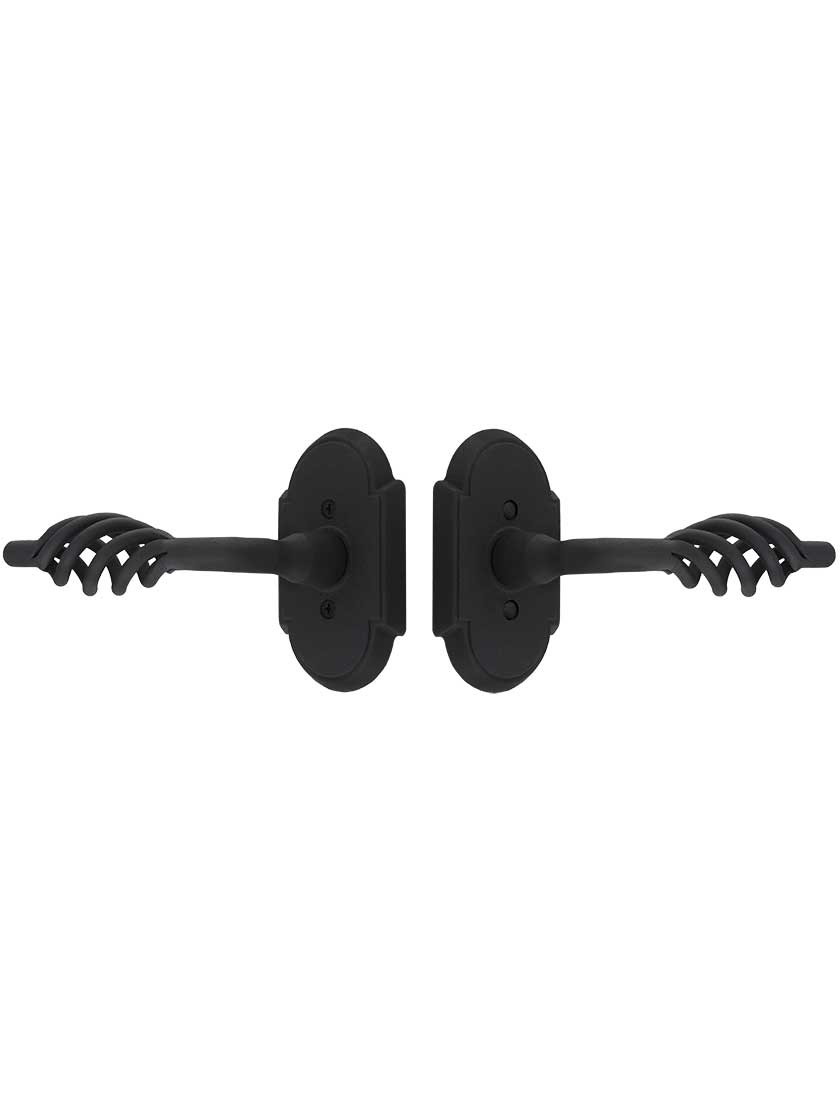

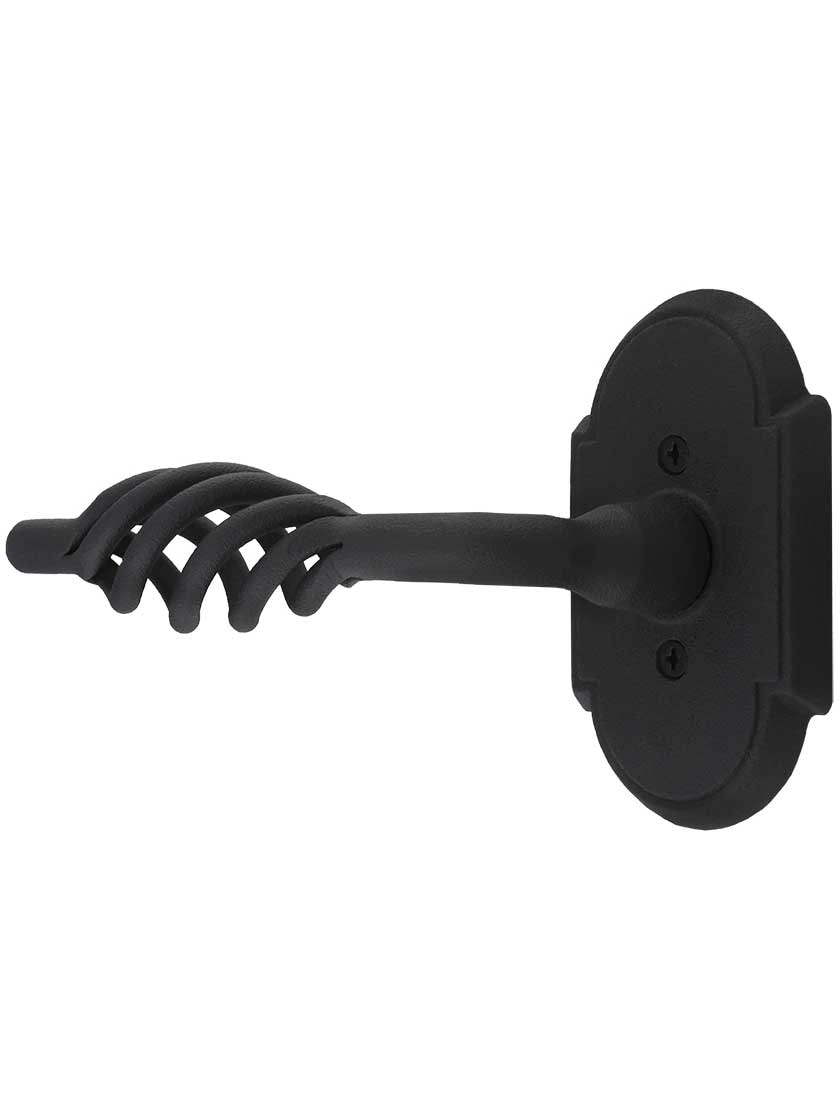

Wrought Steel Arched-Rosette Door Set with Lafayette Levers

Your Selection:

Select Your Finish:


$160.90 Sold Out
Quantity discounts available
QuantityPrice
Item #: RS-01EM-7101LX

Description

With its rugged texture and weathered finishes, our Wrought Steel Arched-Rosette Door Set with Lafayette Levers is a perfect choice for your Colonial, Tudor or other rustic style of home. Each set is hot forged, then distressed and relieved to achieve an appearance of graceful wear. Equipped with heavy-duty spring assisted mechanics, this handsome design will give you a lifetime of quality performance.

Dimensions:
Door set:

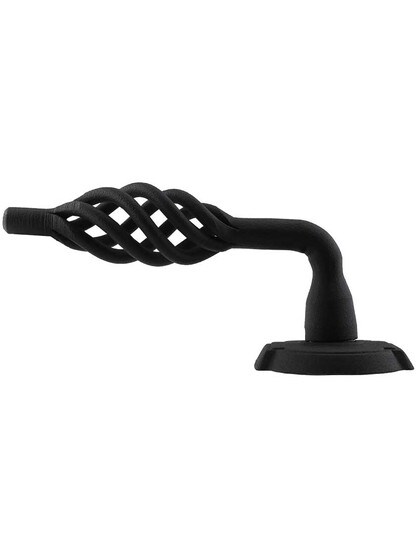

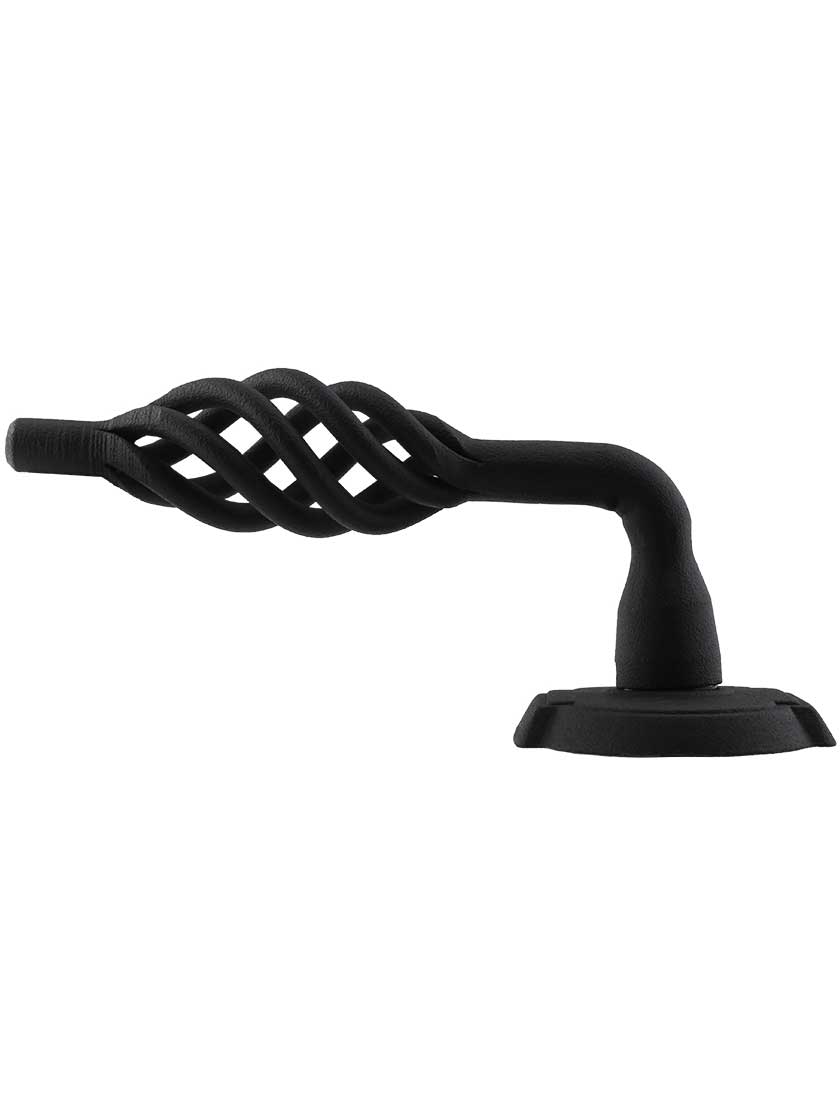

Lever: 6" L x 3" projection.

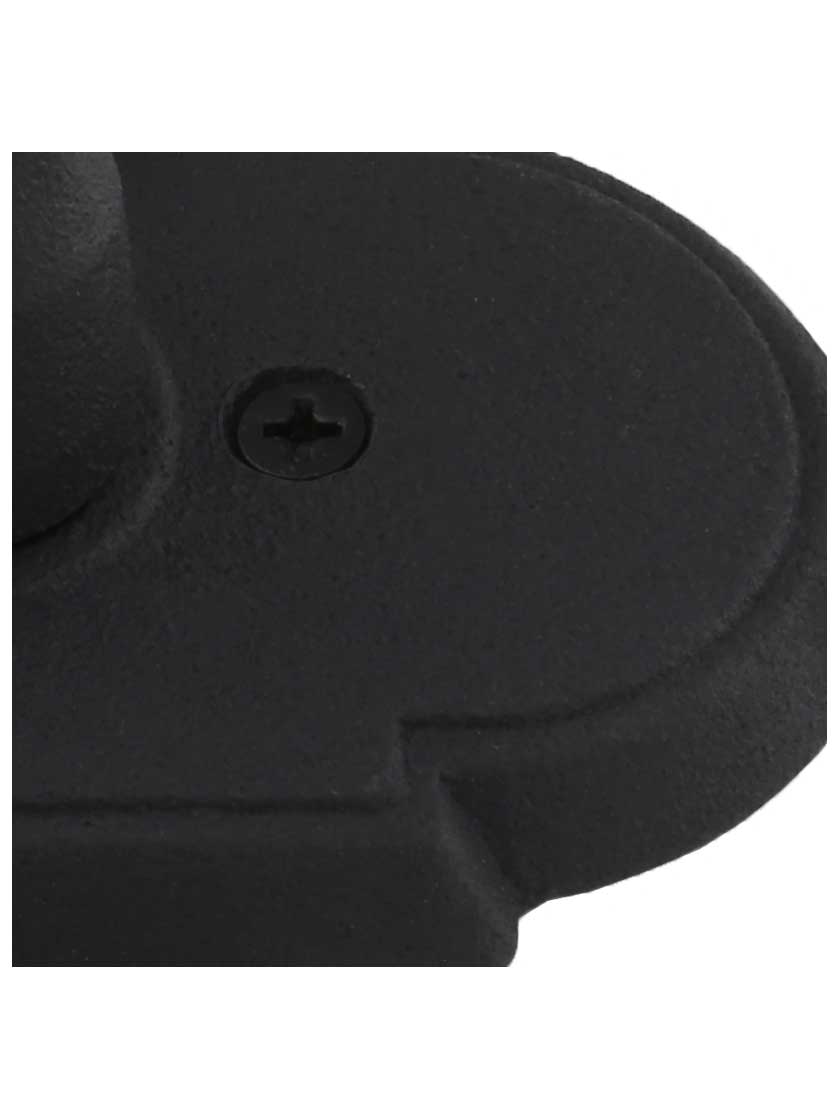

Rosette: 4 3/8" H x 2 9/16" W x 3/8" thick.

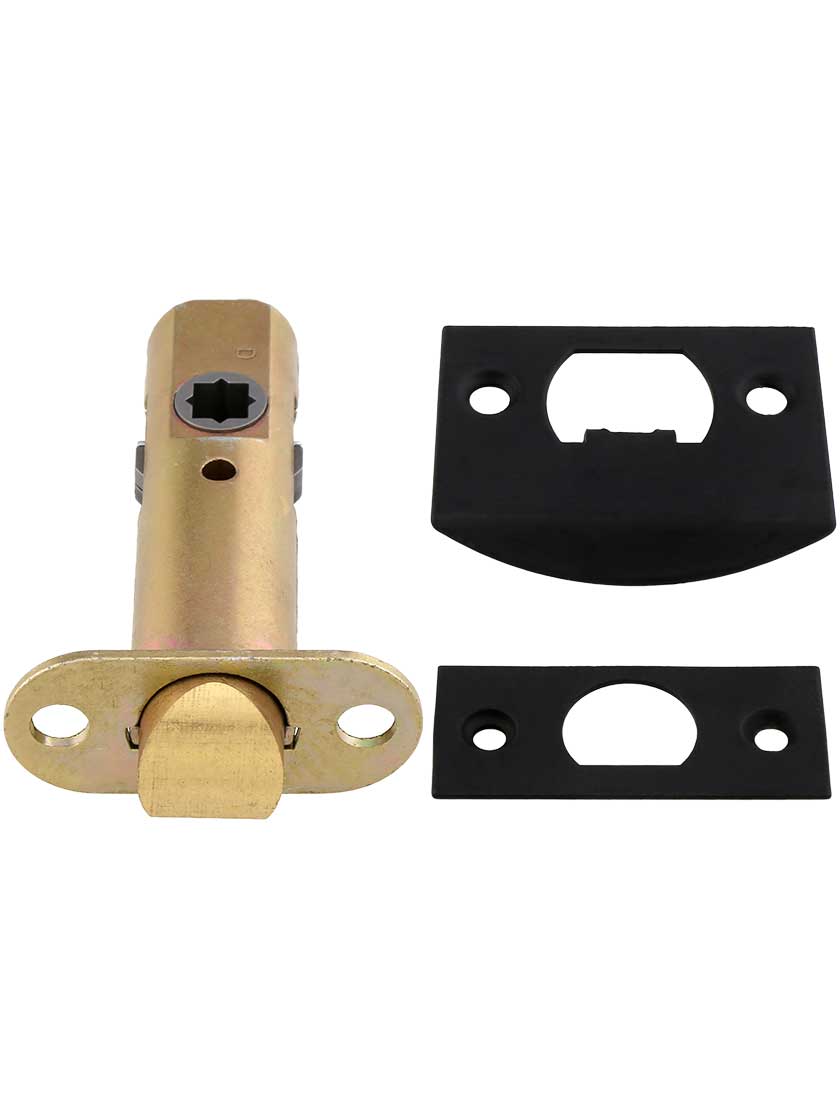

Latch:
Latch case: 7/8" D.
Latch face plate: 2 1/4" H x 1" W.
Standard door range: 1 3/8" to 2" thick. (available up to 3" call to order)

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Passage
Latch but no lock - The levers turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt.
  • 2 Levers
  • 2 Rosettes
  • 1 Passage Latch with matching face plate
  • 1 Matching strike plate
  • Matching screws
  • All necessary mounting accessories
Privacy
Latch and lock - This set has a privacy pin next to the knob which is pushed to lock and pulled to unlock. The door can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors.
  • 2 Levers
  • 2 Rosettes
  • 1 Privacy Latch with matching face plate and privacy pin
  • 1 Matching strike plate
  • Matching screws
  • All necessary mounting accessories
Double Dummy
No latch or lock - the levers on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door.
  • 2 Levers
  • 2 Rosettes
  • Matching Screws
  • All necessary mounting accessories

Included Hardware

Pictured in Matte Black. Your hardware will match the finish selected. Hardware not included with Dummy Sets.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle.

Specs

Product Specifications

Dimensions, specifications and detailed product info
