Streamline Moderne Mortise Lock Set with Matching Knobs with Keyhole
Description
Inspired by a 1930s original, our top-quality Streamline Modern door set features matching knobs, forged brass plates, and a heavy-duty mortise lock - perfect for your vintage Deco or Mid-Century home. The lock itself is made to the highest standards, ensuring trouble-free performance and reliable privacy. Enduring quality, authentic period style, and our five year warranty make this an excellent choice for new construction as well. Choose from seven popular finishes.
Dimensions: Deco knobs measure 2 1/8" in diameter. Back plates are 7" H x 2 1/4" W.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Dimensions: Deco knobs measure 2 1/8" in diameter. Back plates are 7" H x 2 1/4" W.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Skeleton Key | Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side. |
|
Included Hardware

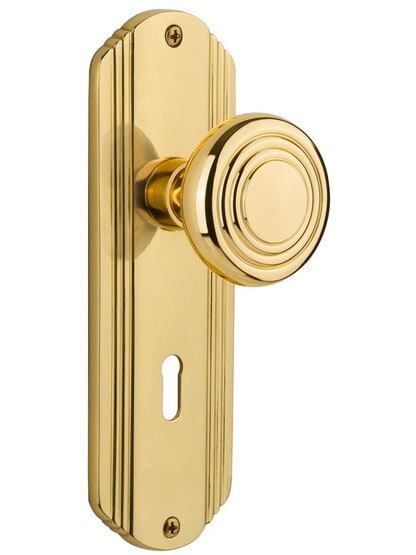

Pictured in Polished Brass.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Backset: On a lock or latch, it is the distance from the front of the face plate to the center of the knob hub. On the door, it is from the edge of the door to the center of the door knob.
