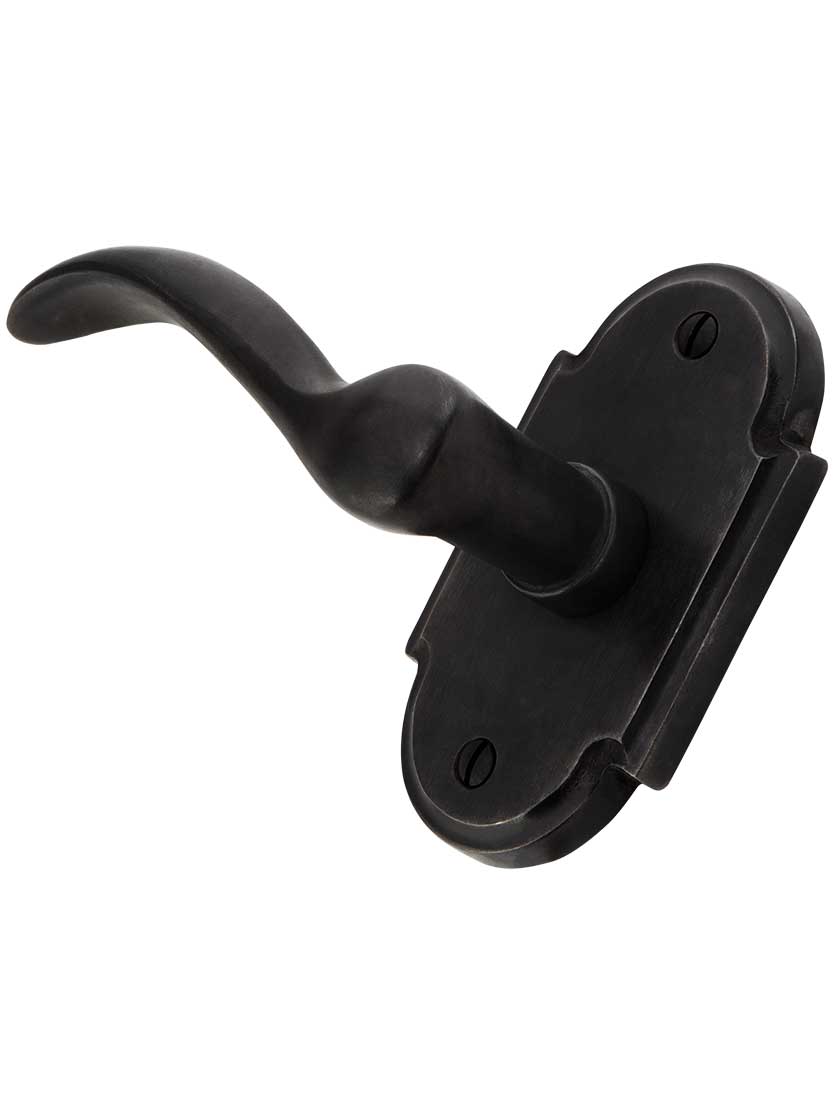

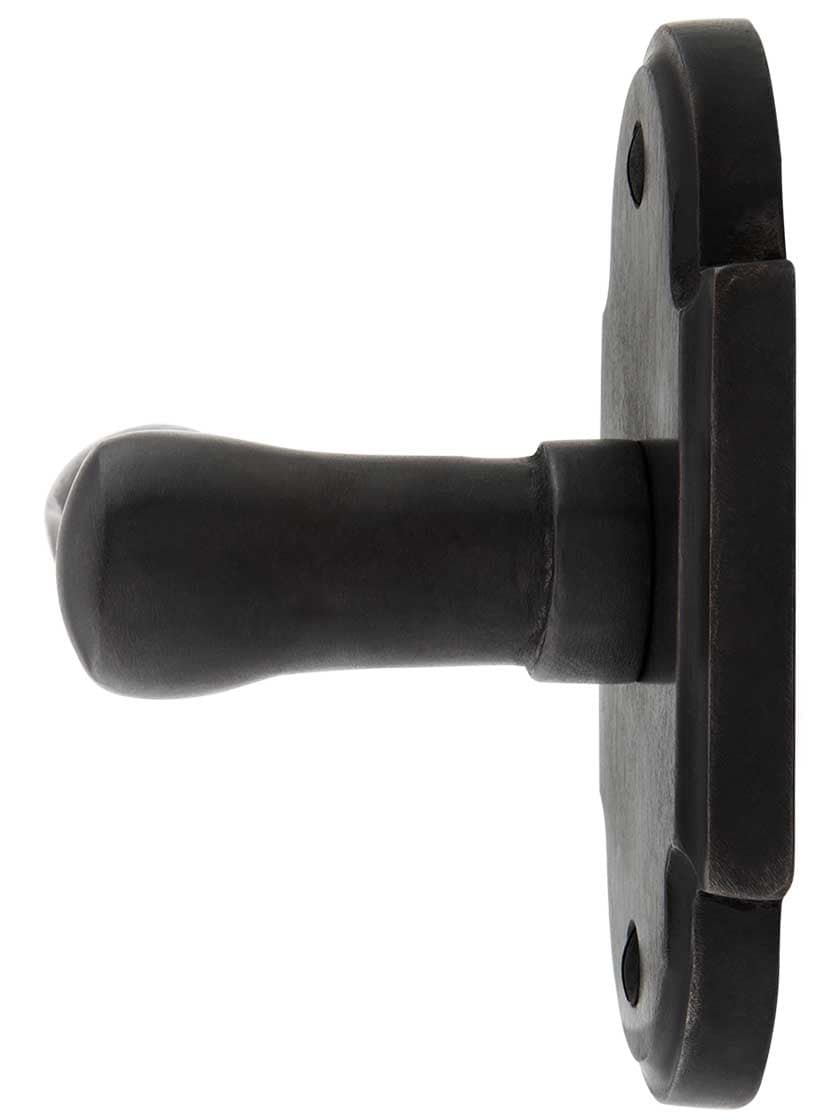

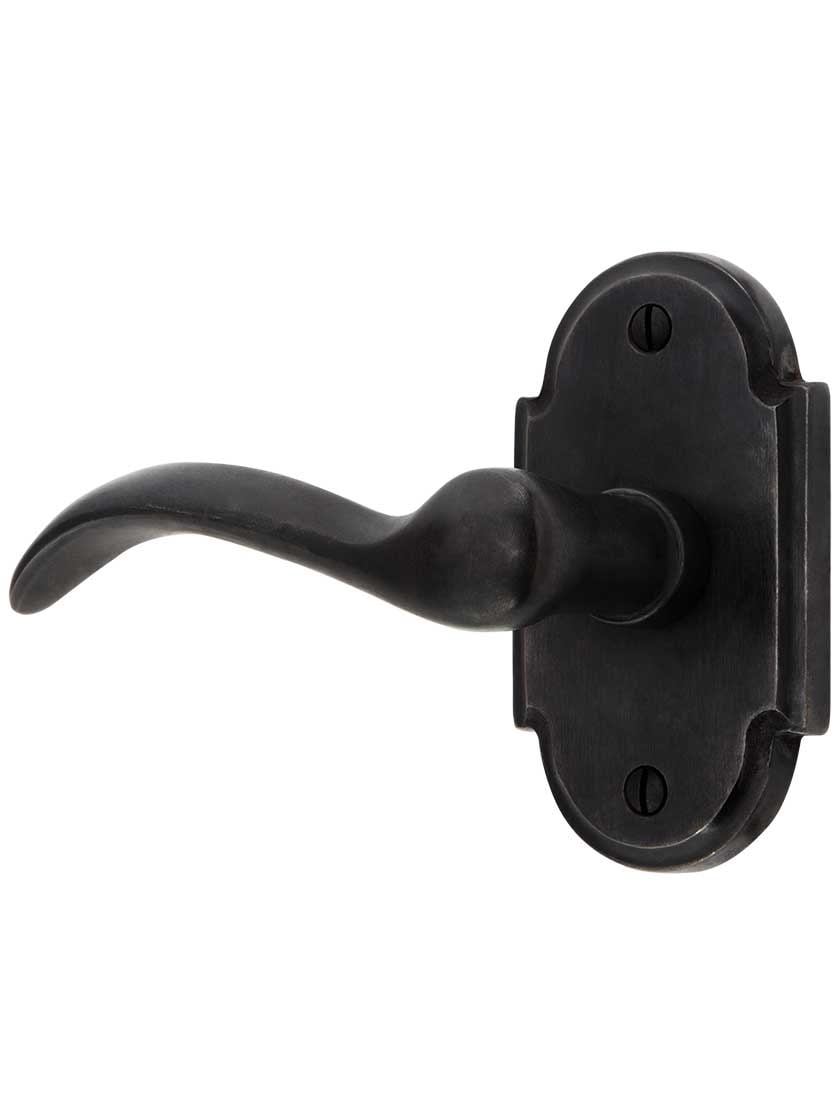

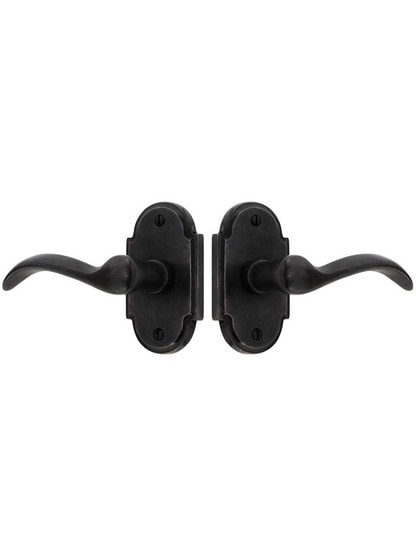

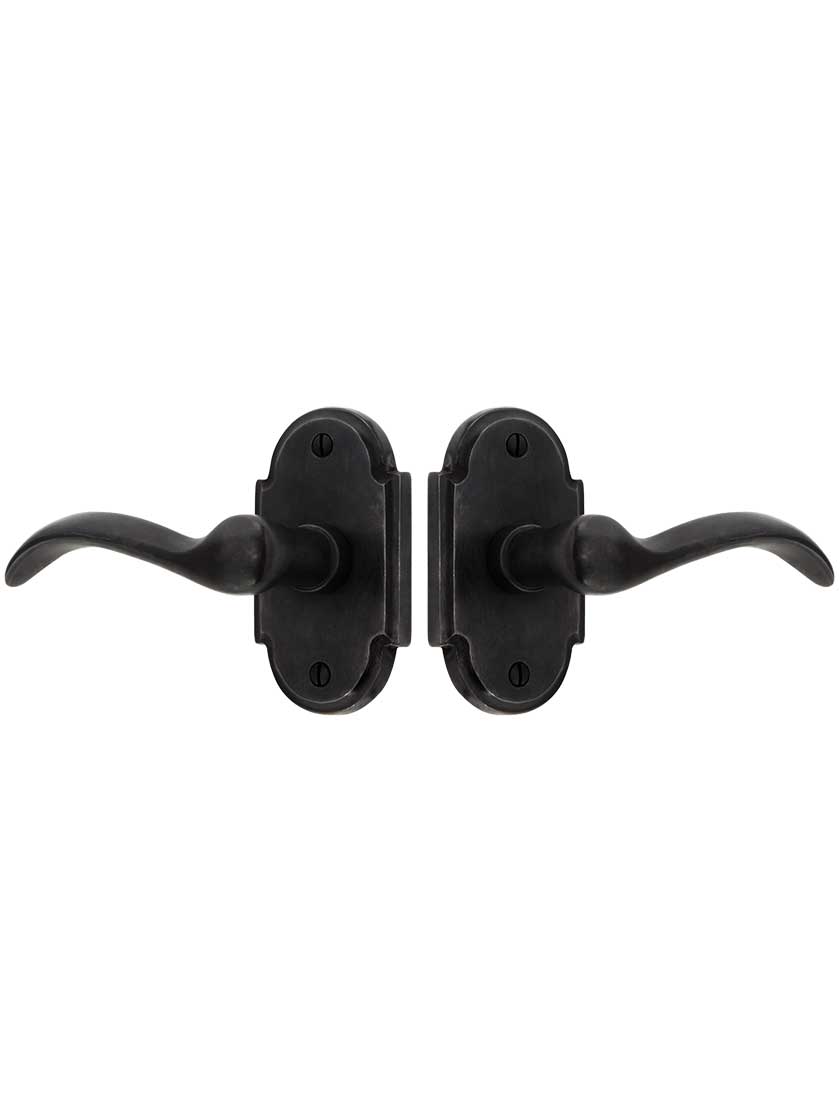

Solid Bronze Arched-Rosette Door Set with Churchill Levers
Description
With its rustic, yet refined presence, our Solid Bronze Arched-Rosette Door Set with Churchill Levers suits a variety of styles, from Traditional to Urban. The hand-applied finish ages gracefully, with frequently touched areas exposing the natural shades of the bronze, while other areas oxidize further. The result? An elegant and timeless display of contrasting color variations. Handcrafted from the finest-quality materials, each piece has its own, unique character. This door set boasts high-tech mechanics, resulting in silky smooth, trouble-free operation and zero lever sag. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals and home owners alike.
Door set dimensions: Lever: 4 5/8" L overall (4 1/4" to center) x 2 3/8" projection. Backplates: 4 1/4" H x 2 3/8" W x 2 1/8" Bottom to lever center.

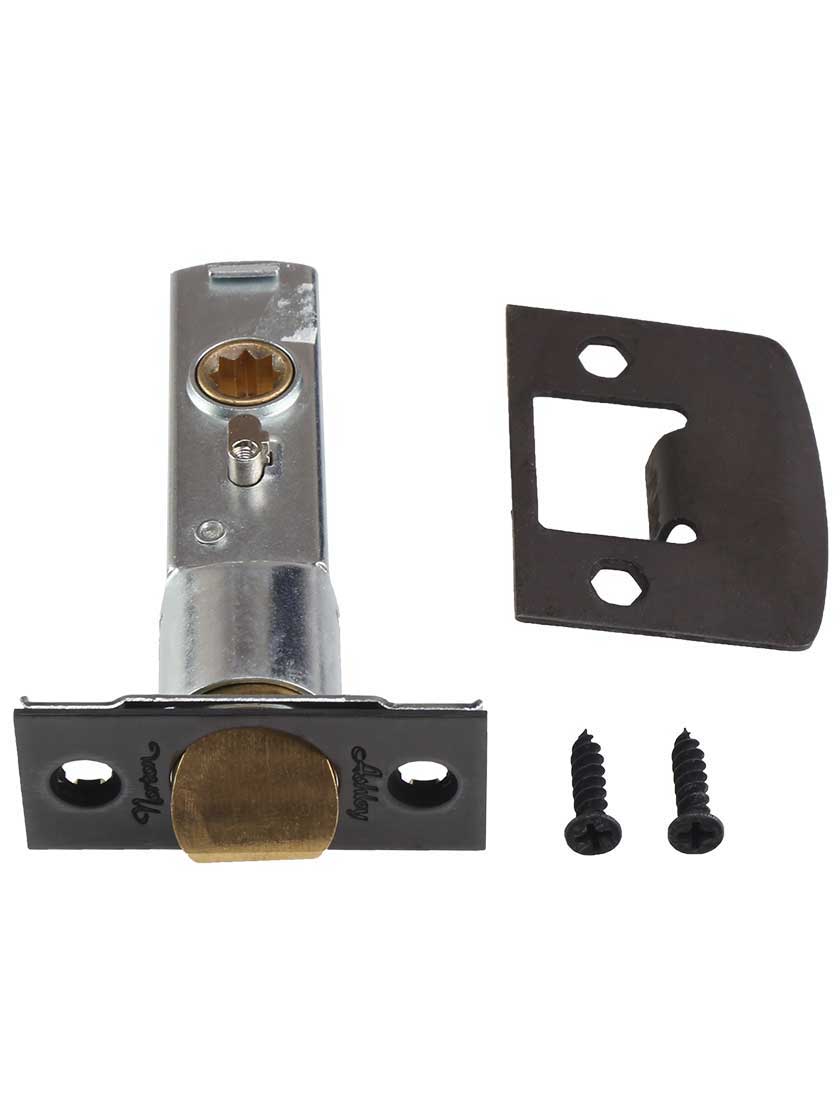

Latch dimensions: Latch case: 7/8" diameter. Face plate: 2 1/4" H x 1" W. Full liped strike: 2 1/4" H x 2 1/4" W.
Standard door range: 1 3/8" to 1 3/4" thick.
Door set dimensions: Lever: 4 5/8" L overall (4 1/4" to center) x 2 3/8" projection. Backplates: 4 1/4" H x 2 3/8" W x 2 1/8" Bottom to lever center.
Latch dimensions: Latch case: 7/8" diameter. Face plate: 2 1/4" H x 1" W. Full liped strike: 2 1/4" H x 2 1/4" W.
Standard door range: 1 3/8" to 1 3/4" thick.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Passage | Latch but no lock - The knobs or levers turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt. |
|
Privacy | Latch and lock - This set has a privacy pin next to the inside knob or lever which is pushed in to lock. The door is unlocked by turning the knob or lever on the inside and can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors. |
|
Double Dummy | No latch or lock - the knobs or levers on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door. |
|
Single Dummy | No latch or lock - Like a cabinet knob, the knob or lever mounts on one side of the door and doesn't turn or operate a latch. Typically found on closet or pantry doors. This set can't be installed on a pre-drilled door. |
|
Included Hardware
Pictured in Dark Bronze. Your hardware will match the finish selected. Hardware not included with Dummy Sets.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. These are typically used for modern pre-bored doors.
