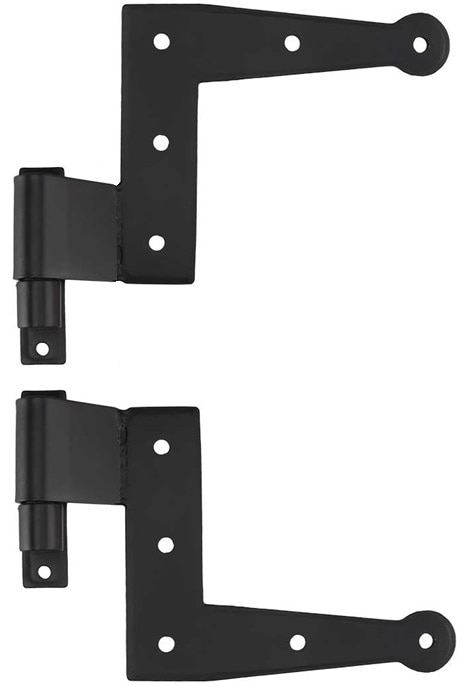

Set of Suffolk Style Stainless-Steel "L" Hinges with Narrow Plate Pintles - 3/4" Offset
Description
Our Set of 3/4" Offset Suffolk-Style "L" Hinges with Narrow Plate Pintles offer traditional Colonial style. Constructed from stainless steel, they feature a rust-resistant and durable black powder-coated finish. They can be mounted to show either when the shutters are open or closed.
Dimensions. Strap: 4 7/8" H x 6" W. Stile: 1 3/8". Reveal: 1 1/2". Thickness: 1/8". Screws: 10 each #8 x 3/4" Panhead Phillips Black SS
Mounting Plate: 3 1/2" H x 3/4" W x 1/8" thick. Pintle rod: 1/2" Diameter x 3/4" offset. Screws: 4 each #10 x 1 3/4" Panhead Phillips Black SS.
Technical Info with Diagram
Dimensions. Strap: 4 7/8" H x 6" W. Stile: 1 3/8". Reveal: 1 1/2". Thickness: 1/8". Screws: 10 each #8 x 3/4" Panhead Phillips Black SS
Mounting Plate: 3 1/2" H x 3/4" W x 1/8" thick. Pintle rod: 1/2" Diameter x 3/4" offset. Screws: 4 each #10 x 1 3/4" Panhead Phillips Black SS.
Technical Info with Diagram
Hardware Tip
The offset on shutter hinges is approximately the depth measurement from the back of the strap to the center of the pintle hole. Sometimes the offset measurement does not include the strap thickness.
