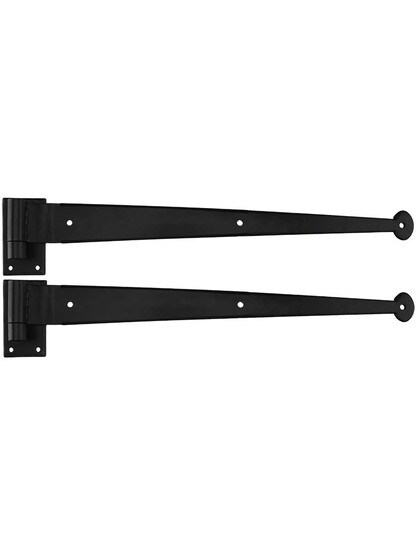

Pair of Suffolk Style Galvanized-Steel 18" Strap Hinges with Rectangular Plate Pintles - 1" Offset
Description
Our Pair of 1" Offset Suffolk-Style 18" Strap Hinges with Rectangular Plate Pintles offer traditional Colonial style. Constructed from galvanized steel, they feature a rust-resistant and durable black powder-coated finish. They can be mounted to show either when the shutters are open or closed.
Dimensions. Strap: 16 1/8" W - 18" W overall. Stile: 1 3/4" at base 1 1/4" at tip. Reveal: 1 1/2". Thickness: 1/8". Screws: 8 each #8 x 1" Panhead Phillips Black SS
Dimensions. Mounting Plate: 3 1/2" H x 2" W x 5/32" thick. Pintle rod: 1/2" Diameter x 1" offset. Screws: 8 each #10 x 1 1/2" Panhead Phillips Black SS
Technical Info with Diagram
Dimensions. Strap: 16 1/8" W - 18" W overall. Stile: 1 3/4" at base 1 1/4" at tip. Reveal: 1 1/2". Thickness: 1/8". Screws: 8 each #8 x 1" Panhead Phillips Black SS
Dimensions. Mounting Plate: 3 1/2" H x 2" W x 5/32" thick. Pintle rod: 1/2" Diameter x 1" offset. Screws: 8 each #10 x 1 1/2" Panhead Phillips Black SS
Technical Info with Diagram
Hardware Tip
The offset on shutter hinges is approximately the depth measurement from the back of the strap to the center of the pintle hole. Sometimes the offset measurement does not include the strap thickness.
