Prairie Design Mortise Lock Set With Round Brass Knobs
Description
The simple, homey look of our Prairie door set makes it a wonderful choice for your craftsman, cottage or colonial style home. The comfortable round knobs and sturdy back plates are forged from solid brass, with your choice of five traditional finishes. A heavy-duty mortise lock and two skeleton keys completes the set. Made to the highest standards, this lock guarantees you trouble-free operation and reliable privacy.
Door set dimensions: Round doorknobs measure 2" diameter. Back plates are 7 1/8" H x 2 5/8" W.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Door set dimensions: Round doorknobs measure 2" diameter. Back plates are 7 1/8" H x 2 5/8" W.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Skeleton Key | Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side. |
|
Included Hardware

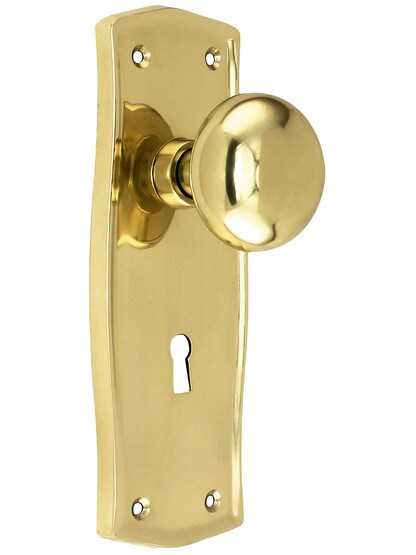

Pictured in Polished Brass. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Backset:On a lock or latch this is the distance from the front of the face plate to the center of the door knob hub.
