Pisano Design Mortise-Lock Set with Matching Knobs in Antique-By-Hand
Description
A House of Antique Hardware Exclusive! Our Victorian Mortise-Lock Set with Matching Knobs in Antique-by-Hand is the most intricate and elegant you'll find anywhere. The exquisite Italian Renaissance design, with they're fluted border and floral accents, is a faithful recreation of Russell and Erwin's Pisano pattern of 1897. Precision cast in solid brass, it is beautifully detailed and incredibly substantial. The hand-applied antique finish is not lacquered and will continue to age gracefully, developing highlights with use. Suited for restorations or new construction, this decorative set adds a touch of understated luxury to any interior.
Door set dimensions: Knobs: 2 5/16" Diameter. Back plates: 6 15/16" H (177mm) x 2 15/16" W (75mm). Projection: 2 9/16" overall.
Mortise lock dimensions: Lock case: 3 3/4" H x 2 7/8" W x 11/16" thick. Lock face plate: 6" H x 1" W x 1/8" thick. Strike plate: 4 5/16" H x 1" W. Backset is 2 1/4". Door thickness: 1 3/8" to 1 3/4".
Door set dimensions: Knobs: 2 5/16" Diameter. Back plates: 6 15/16" H (177mm) x 2 15/16" W (75mm). Projection: 2 9/16" overall.
Mortise lock dimensions: Lock case: 3 3/4" H x 2 7/8" W x 11/16" thick. Lock face plate: 6" H x 1" W x 1/8" thick. Strike plate: 4 5/16" H x 1" W. Backset is 2 1/4". Door thickness: 1 3/8" to 1 3/4".
Door Sets
Door Set Functions | ||
Function | Description | Includes |
Skeleton Key | Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side. |
|
Included Hardware

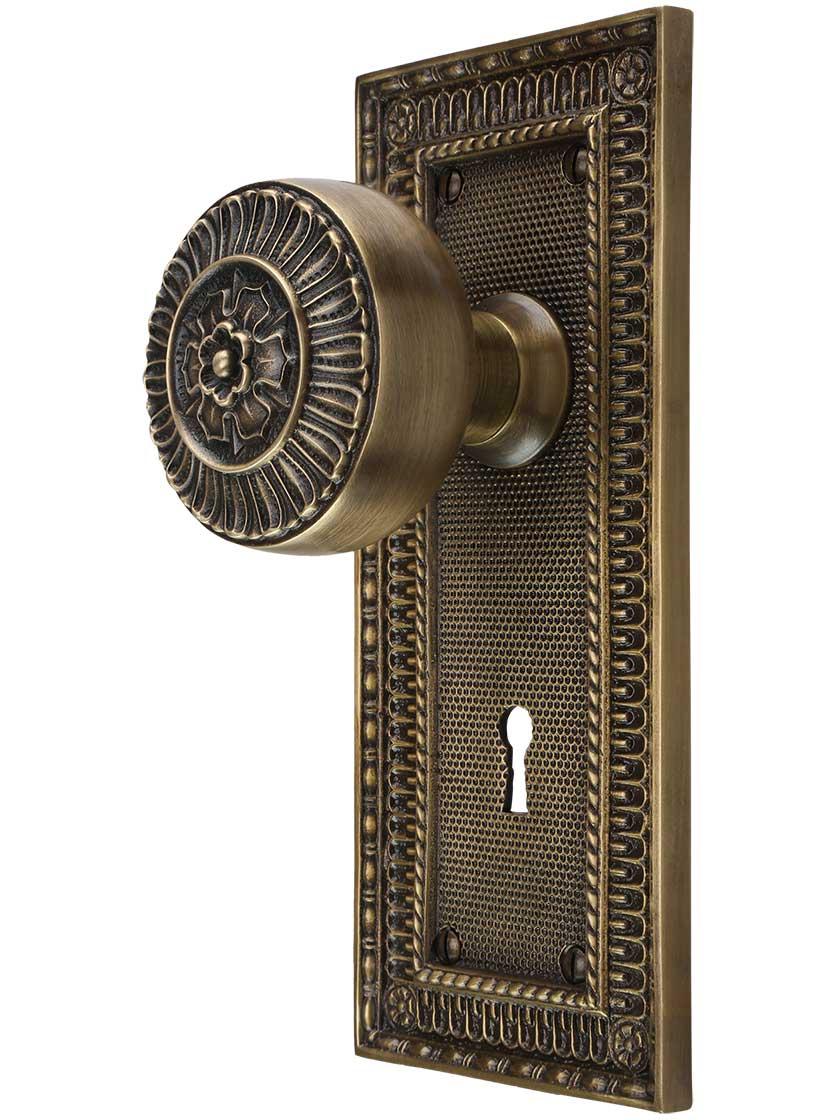

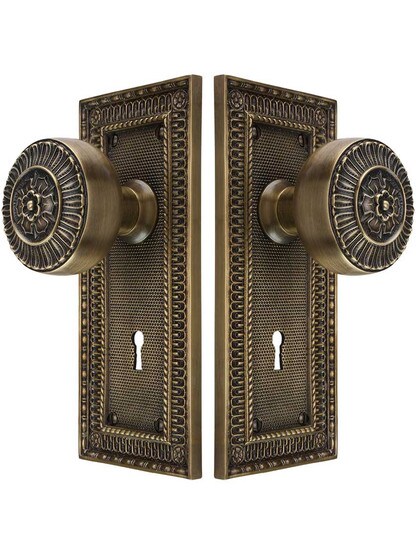

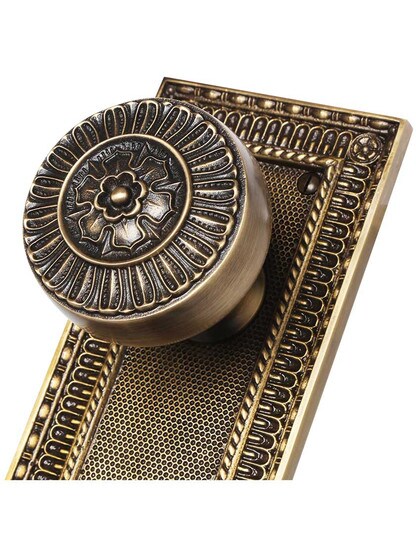

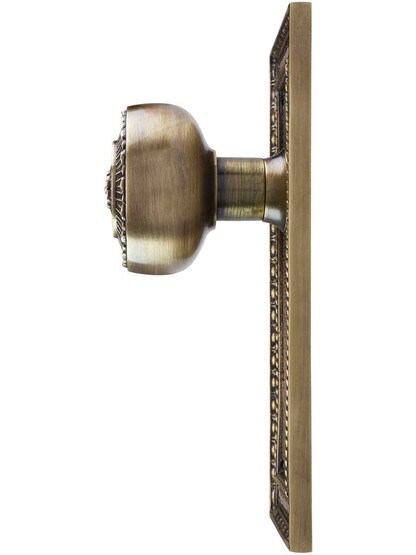

Pictured in Antique-By-Hand.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Mortise Lock: Old style box lock that is installed into a deep pocket or “mortise” in the edge of the door. Generally, the mortise lock houses both the latch and dead bolt in one unit.
