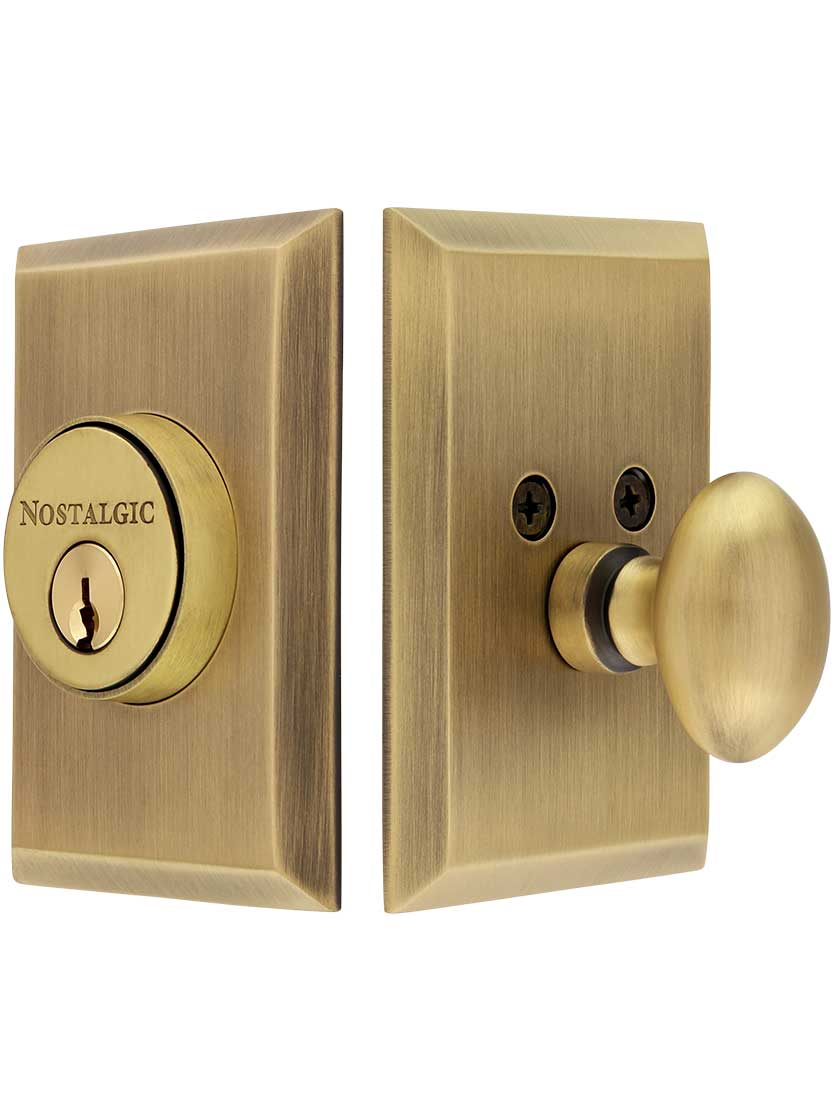

New York Style Single-Cylinder Deadbolt
Description
Tailored and understated, the classic "New York" deadbolt goes with everything. Whether your style is Victorian, Craftsman, or Mid-Century modern, these spare, beveled plates will fit right in. Our modern re-creation is made of forged brass and top-quality internal components for smooth, long-lasting performance. Pair it with one of our matching interior door sets in your favorite finish for the perfect entry.
Dimensions: 3 1/2" T x 2 1/2" W.
Projection: 9/16" Exterior, 1 5/8" Interior.
Bolt dimensions: Faceplate: 2 1/4" T x 1" W.
Strike Plate: 2 3/4" T x 1 1/8" W. Includes reinforcement plate and dust box.
Bolt throw: 1".
Schlage "C" keyway.
Standard 2 1/8" bore.
Door thickness: 1 3/4".
Dimensions: 3 1/2" T x 2 1/2" W.
Projection: 9/16" Exterior, 1 5/8" Interior.
Bolt dimensions: Faceplate: 2 1/4" T x 1" W.
Strike Plate: 2 3/4" T x 1 1/8" W. Includes reinforcement plate and dust box.
Bolt throw: 1".
Schlage "C" keyway.
Standard 2 1/8" bore.
Door thickness: 1 3/4".
Included Hardware
Pictured in Polished Brass. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Forged: Process of forming brass or other metals into a particular shape by heating the metal and hand pounding or cutting with high pressure dies. Items made in this way are very strong and heavy.
