Classic Rosette Mortise Lock Set with Largo Oval Knobs
Description
What a lovely and understated Victorian accent for your doors! Designed in the Flemish Renaissance style around 1910 (the "Largo" pattern by Yale & Town), these weighty and decorative Largo oval knobs are as pleasing to the hand as to the eye. Paired with elegant round rosettes and a traditional skeleton key lock, they'll give your home instant period style. The lock itself is made to the highest standards, to ensure you trouble-free operation and reliable privacy. Crafted entirely from durable, forged brass, with your choice of six classic finishes.
Door set dimensions: solid brass oval knobs measure 2 3/4" H x 1 3/4"W. Rosettes measure 2 1/2" diameter.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Door set dimensions: solid brass oval knobs measure 2 3/4" H x 1 3/4"W. Rosettes measure 2 1/2" diameter.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Skeleton Key | Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side. |
|
Included Hardware

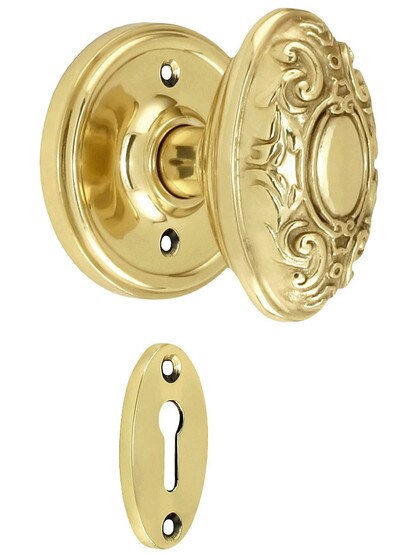

Pictured in Polished Brass. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Backset: On a lock or latch, it is the distance from the front of the face plate to the center of the knob hub. On the door, it is from the edge of the door to the center of the door knob.
