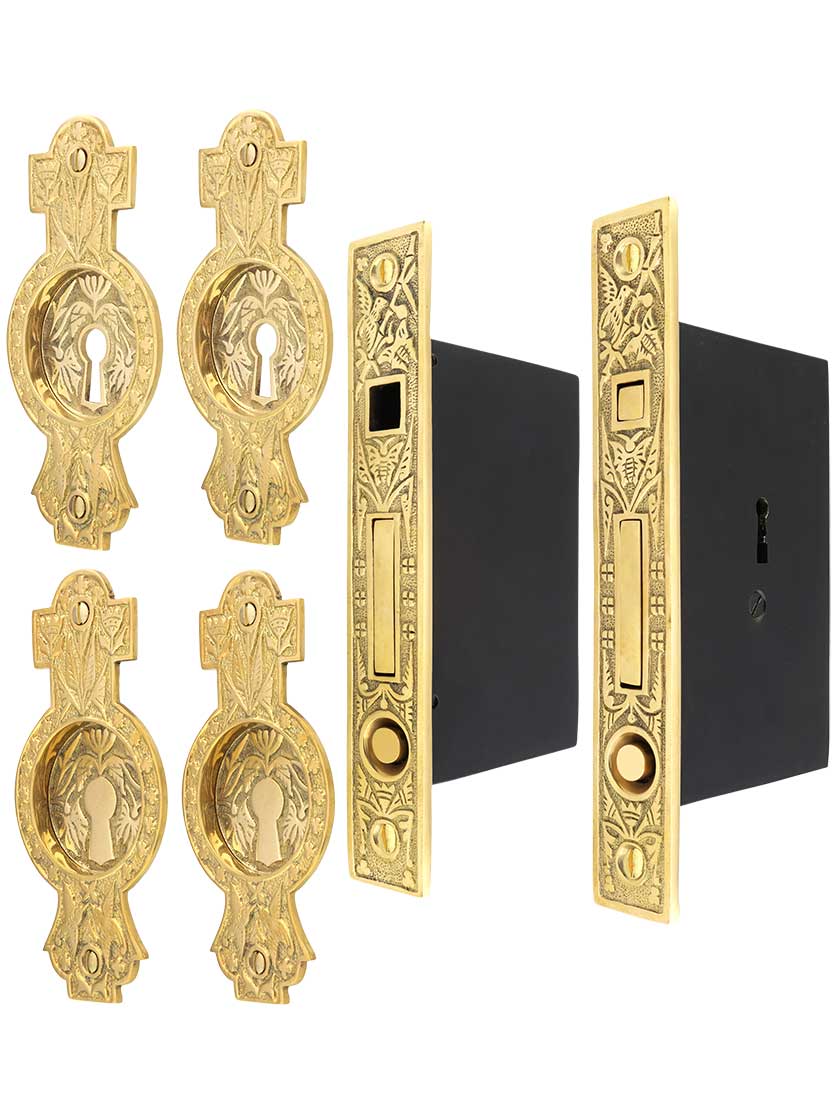

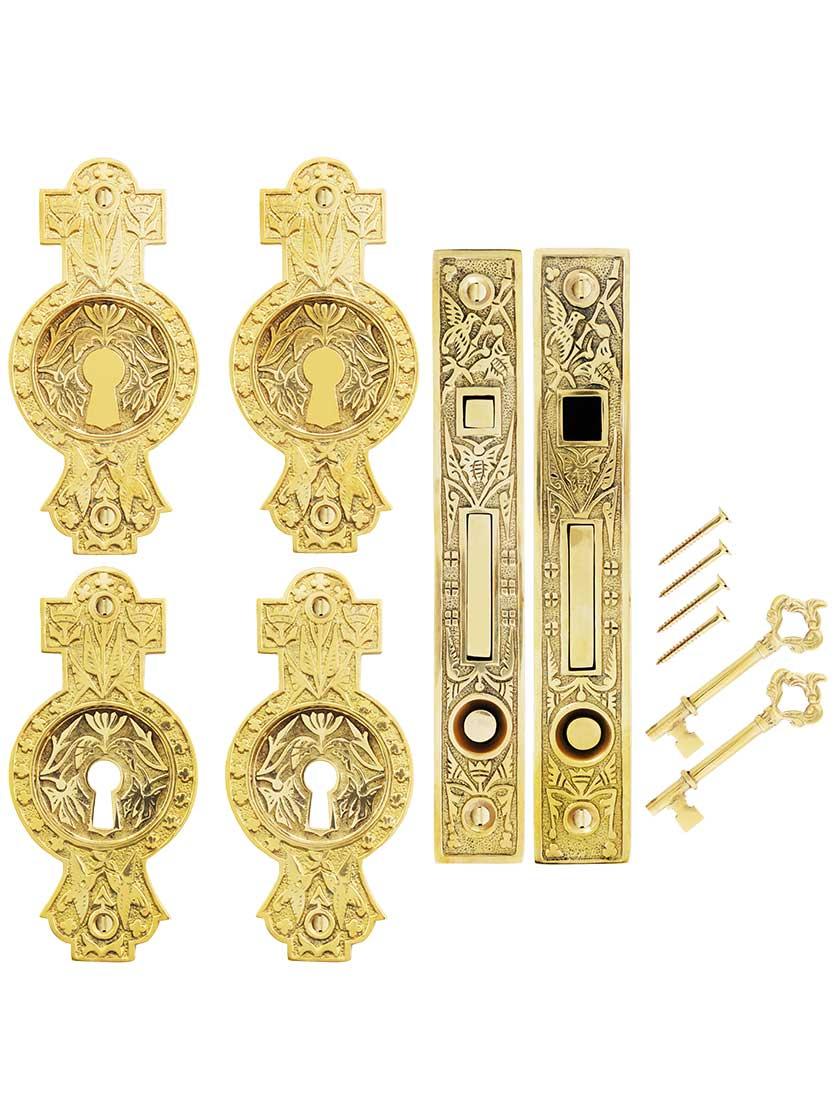

Hummingbird Bit-Key Double Pocket Door Mortise-Lock Set in Unlacquered Brass

The dynamic profile and flowing patterns of our Hummingbird Double Pocket Door Mortise-Lock Set with Hummingbird Pulls adds eye-catching style to your doors. This circa 1880's Eastlake design is reproduced in solid, cast brass and displays a delightful pattern of hummingbirds and butterflies. Left unlaquered, it will gradually develop highlights with use, just like period originals.

Door Thickness : Minimum 1 3/4"
Dimensions:
Pulls - Outer: 5 1/8" H x 2 1/2" W. Inner: 1 3/4" D
Mortise depth: 1/4"
Surface plate: 1/8" thickness
Keyhole: 7/8" H (one side only)
Screws: #6 x 1" wood.
Lock Case: 5 7/16" H x 3 1/2" W x 11/16" Thick
One case keyed with finger pull and latch, one case with finger pull and strike plate
Backset: 2 1/8"
Faceplates: 8" H x 1 3/16" W x 3/16" Thick
Finger Pull: 1 3/4" H x 1"W x 1/4" thick
Screws: #8 x 1 3/8" wood.
Skeleton key: Overall length: 3 3/4"
Barrel length (from bow to bit): 1 1/2"
Barrel diameter: 1/8"
Bit is 3/8" W x 1/2" H

The thickness of your pocket door must be greater than the sum of the mortise depth measurements for two pulls plus the thickness of the lock case.
