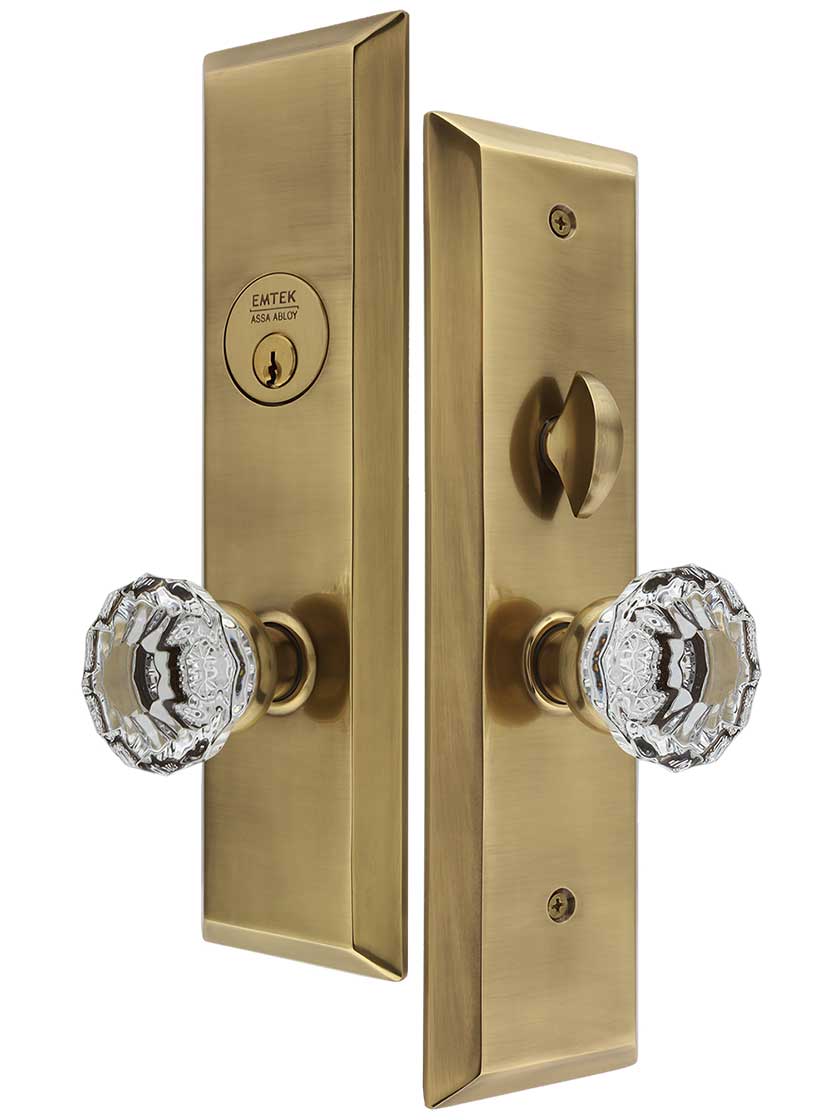

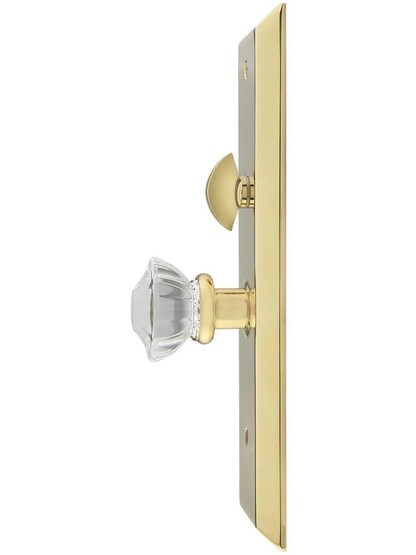

Harrison Mortise Entry Set with Astoria Crystal-Glass Knobs
Description
Give your door a traditional look with the Harrison Mortise Entry Set with Astoria Crystal-Glass Knobs. This sturdy design is made of forged-brass, and features enhanced, high-tech mechanics that promote silky smooth, trouble-free operation. Choose from a host of popular finish options.
Doorset dimensions:

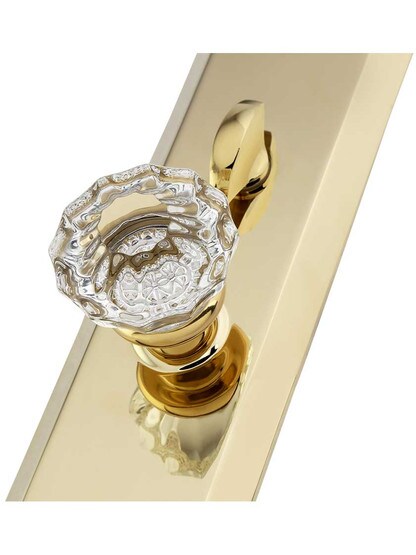

Astoria knob: 2" D
Backplates: 10" H x 2 11/16" W

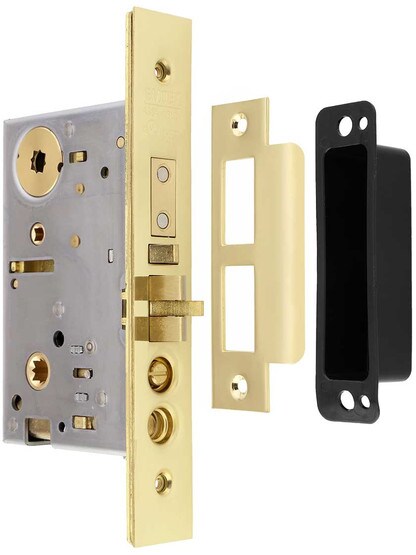

Mortise lock dimensions:
Backset: 2 1/2" or 2 3/4"
Lock case: 5 1/2" H x 3 1/4" W x 3/4" thick
Lock face plate: 8" H x 1 1/4" W
Strike plate: 4 7/8" H x 1 1/4" W
The lock includes a 1 3/8" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.
This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
Doorset dimensions:
Astoria knob: 2" D
Backplates: 10" H x 2 11/16" W
Mortise lock dimensions:
Backset: 2 1/2" or 2 3/4"
Lock case: 5 1/2" H x 3 1/4" W x 3/4" thick
Lock face plate: 8" H x 1 1/4" W
Strike plate: 4 7/8" H x 1 1/4" W
The lock includes a 1 3/8" cylinder and 2 standard keys.
Mortise lock box: ANSI F20 function with stop/release buttons.
This set is designed to fit standard exterior doors of 1 3/4" thickness that open inward. For reverse handed doors that open out, thicker doors, dummy sets, double cylinder option, or F13 function without stop/release buttons, please call for assistance.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Entry | Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware
Pictured in Polished Brass Lifetime. Your hardware will match the finish selected. Hardware not included with Dummy Sets.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Backset: On a lock or latch, it is the distance from the front of the face plate to the center of the knob hub. On the door, it is from the edge of the door to the center of the door knob.
Specs
Product Specifications
Dimensions, specifications and detailed product info
