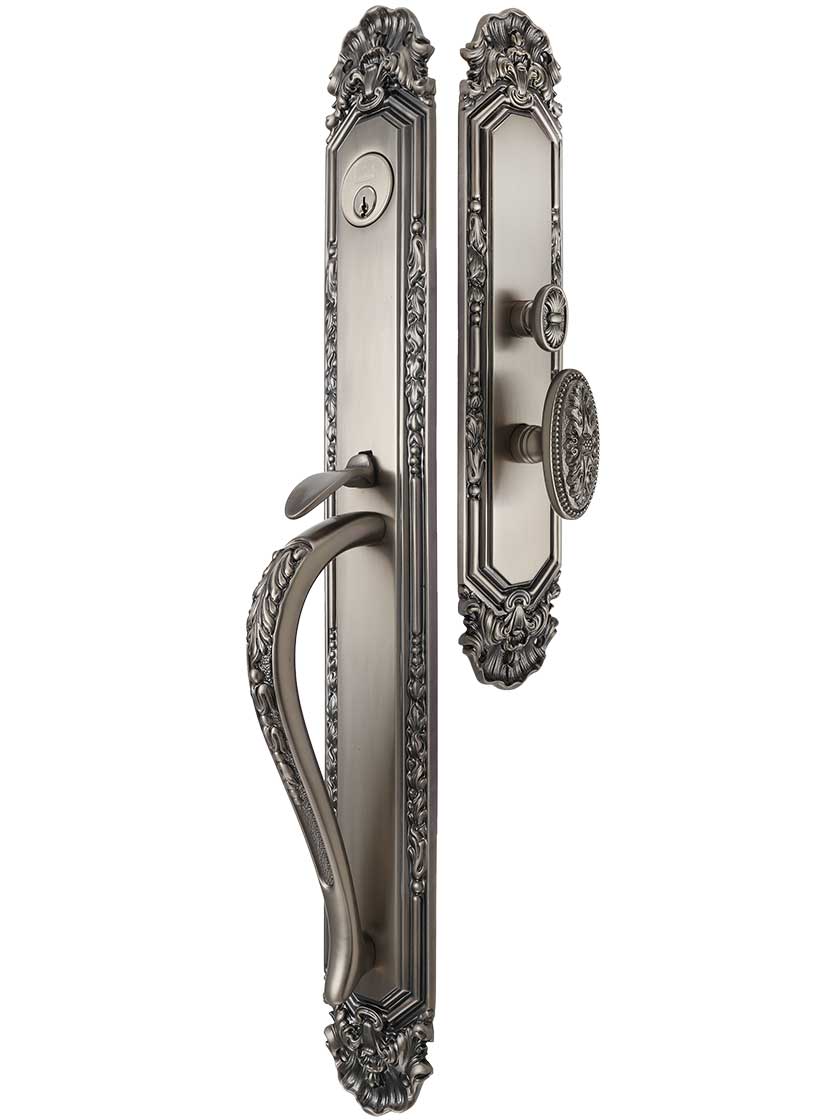

Antoinette Premium Thumb-Latch Mortise Entry Set
Description
With its stately, yet refined presence, our Antoinette Premium Thumb-Latch Mortise Entry Set lends authentic, mid 18th-century design. Crafted to exacting standards, its detailed motif is nothing short of exquisite. Modern, high-tech mechanics offer silky smooth operation, while its cast-brass construction delivers long-lasting beauty. A perfect choice for any formal style home, it comes in a variety of interior knob/lever options and an array of rich, hand-polished finishes. Made in Italy.
Door set dimensions: Exterior backplate: 21" H x 2 7/8" W. Interior backplate: 13 7/8" H x 2 7/8" W. Handle: 9" H x 2 5/8" projection.

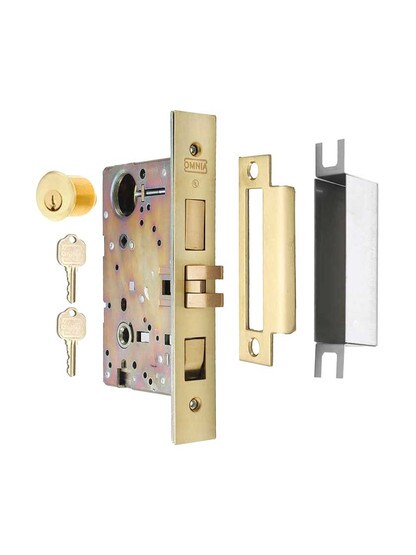

Mortise lock: 6 1/16" H x 3 5/8" (2 1/2" backset) x 15/16" W. Faceplate: 8" H x 1 1/4" W. Strike plate: 4 7/8" H x 1 1/4" W with 5/8" tongue projection.
This set is designed to fit 1 3/4" thick doors. For thicker doors or other keying options, please call for assistance.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
Door set dimensions: Exterior backplate: 21" H x 2 7/8" W. Interior backplate: 13 7/8" H x 2 7/8" W. Handle: 9" H x 2 5/8" projection.
Mortise lock: 6 1/16" H x 3 5/8" (2 1/2" backset) x 15/16" W. Faceplate: 8" H x 1 1/4" W. Strike plate: 4 7/8" H x 1 1/4" W with 5/8" tongue projection.
This set is designed to fit 1 3/4" thick doors. For thicker doors or other keying options, please call for assistance.
This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Entry | Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware

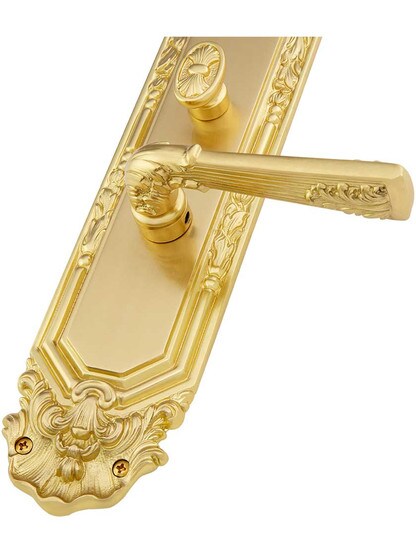

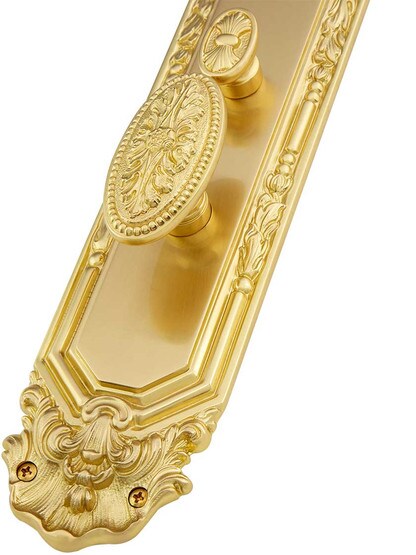

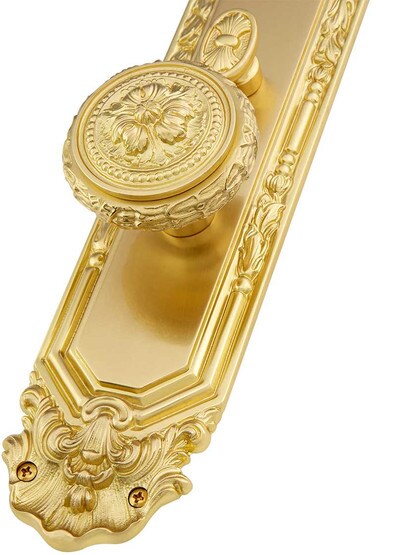

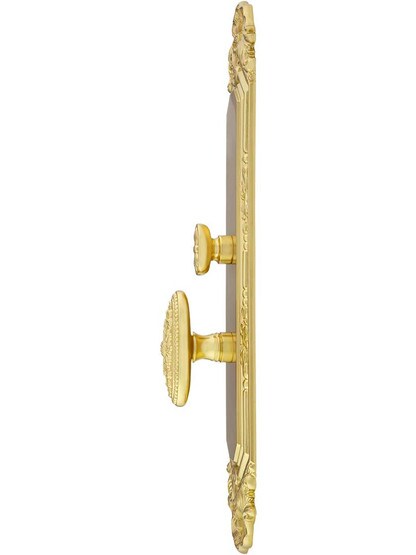

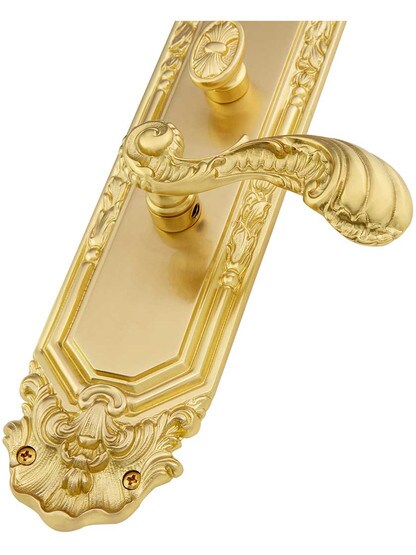

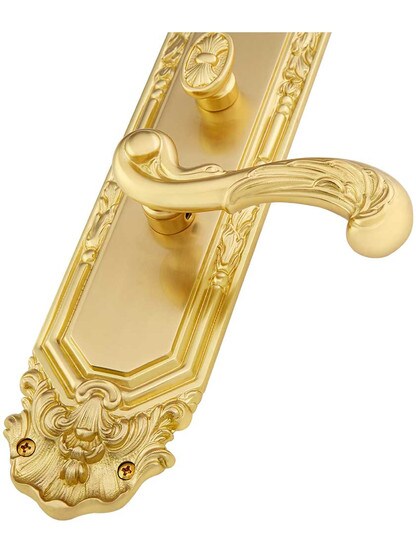

Pictured in Polished Brass. Your hardware will match the finish selected. Hardware not included with Dummy Sets.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Thumb latch: Usually refers to a thumbpiece above the door handle, which when depressed by the thumb, unlatches the door.
