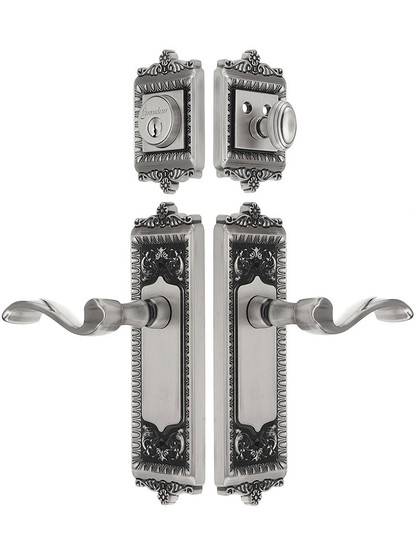

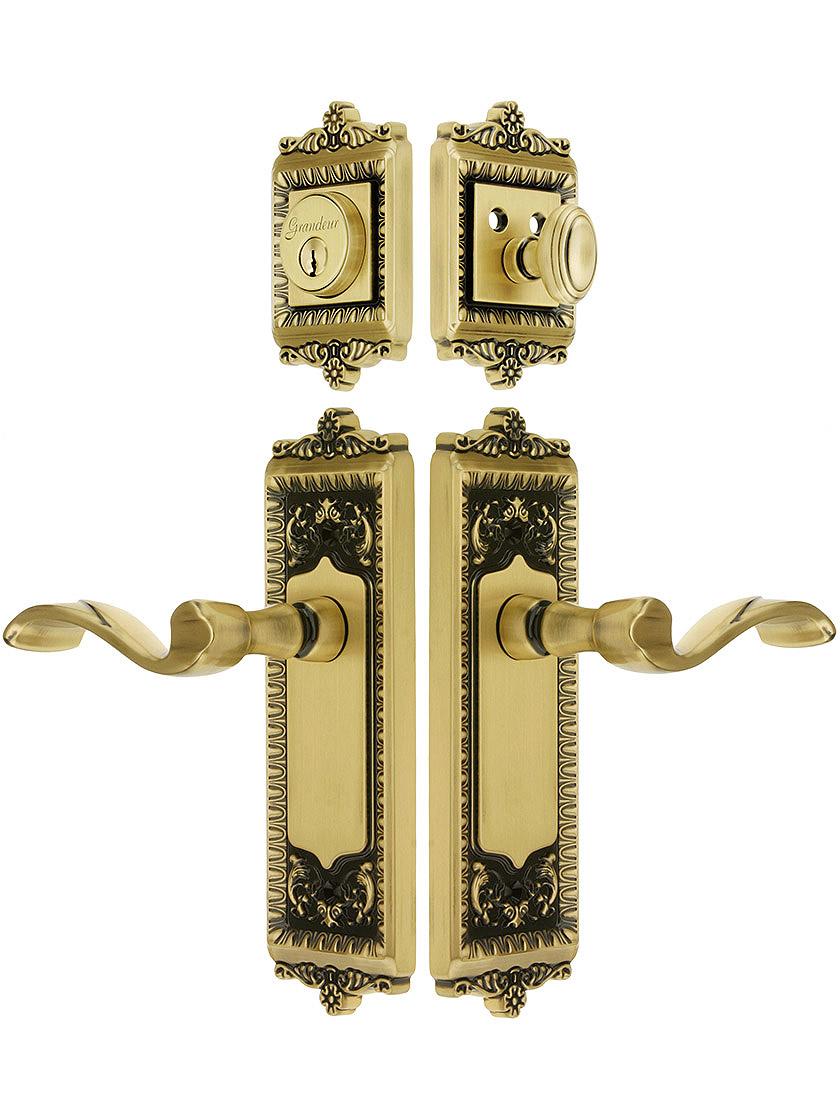

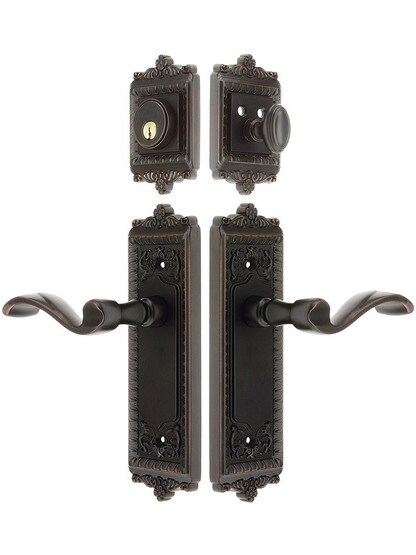

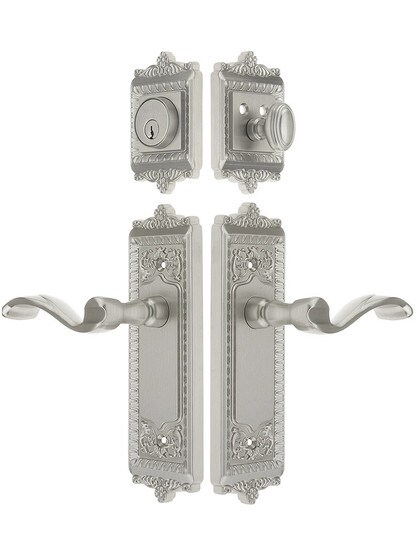

Grandeur "Windsor" Entry Door Set With Portofino Levers
Description
Imposing, yet refined, Grandeur's Windsor entrance set exudes Beaux Artes style. Inspired by P & F Corbin's "Mantua" pattern of 1905, the back plates are exquisitely detailed with neo-classical motifs. The graceful lever handles add a pleasingly modern touch, and are ADA compliant as well.
Grandeur's vintage designs are enhanced with high-tech mechanics, resulting in silky smooth, trouble-free operation unlike anything you've ever experienced. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals or home owners alike. Exceptional solid brass forgings and a 10 year warranty make Grandeur entry hardware the perfect choice for your fine home.
Door set dimensions: Portofino levers are 4 5/8" L. Backplates are 8 11/16" H x 2 5/8" W.
Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.
Deadbolt specs: Decorative face plates are 4 3/16" H x 2 5/8" W. The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order.
This set will fit doors from 1 3/4" - 2" in thickness, with a minimum 5 1/2" center to center boring for the latch and deadbolt. A "thick door kit" for doors up to 2 1/4" in thickness is available for a small fee. Please call for details.
Grandeur's vintage designs are enhanced with high-tech mechanics, resulting in silky smooth, trouble-free operation unlike anything you've ever experienced. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals or home owners alike. Exceptional solid brass forgings and a 10 year warranty make Grandeur entry hardware the perfect choice for your fine home.
Door set dimensions: Portofino levers are 4 5/8" L. Backplates are 8 11/16" H x 2 5/8" W.
Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.
Deadbolt specs: Decorative face plates are 4 3/16" H x 2 5/8" W. The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order.
This set will fit doors from 1 3/4" - 2" in thickness, with a minimum 5 1/2" center to center boring for the latch and deadbolt. A "thick door kit" for doors up to 2 1/4" in thickness is available for a small fee. Please call for details.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Entry | Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware

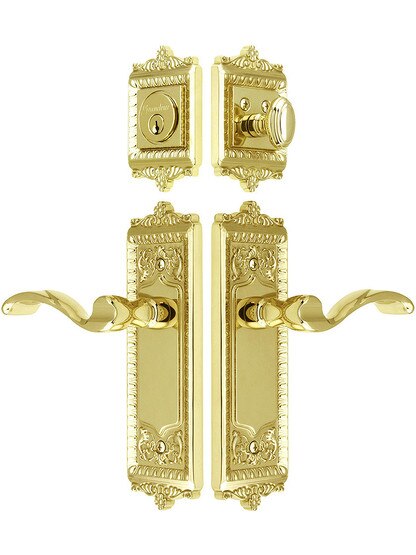

Pictured in PVD Finish. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Forged: Process of forming brass or other metals into a particular shape by heating the metal and hand pounding or cutting with high pressure dies. Items made in this way are very strong and heavy.
