Largo Design Mortise Lock Set With White Porcelain Door Knobs
Description

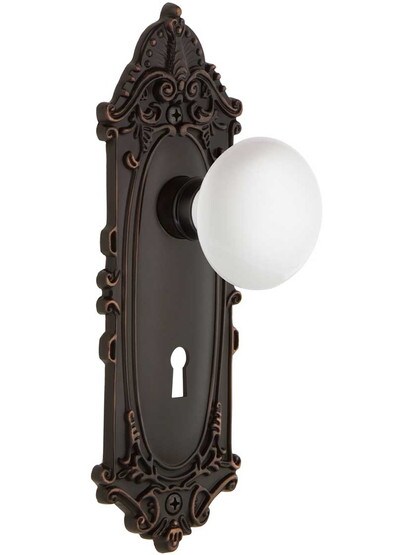

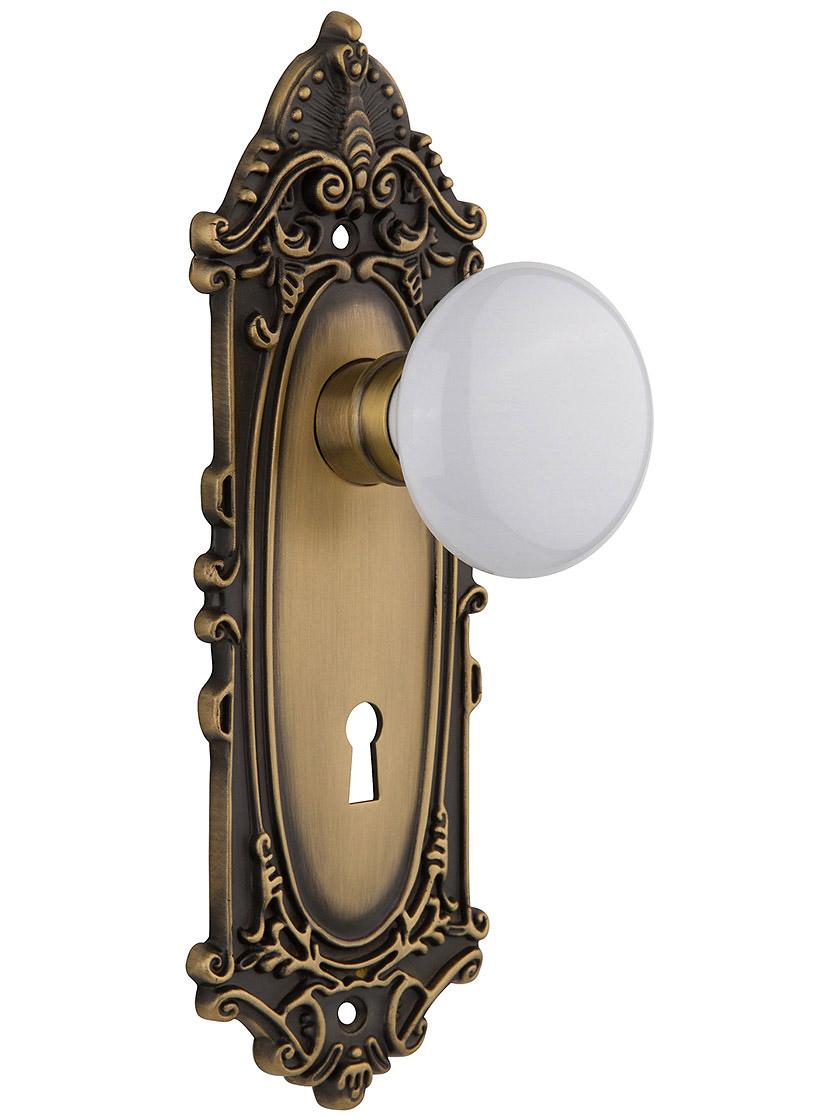

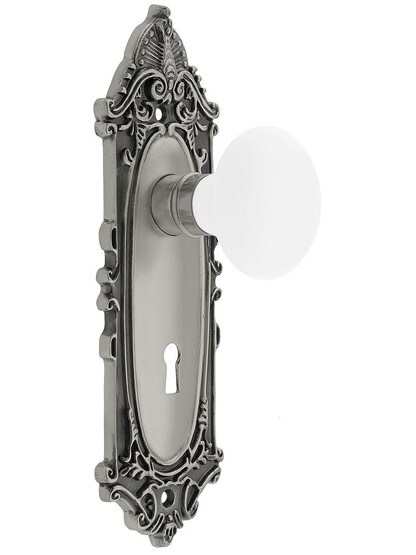

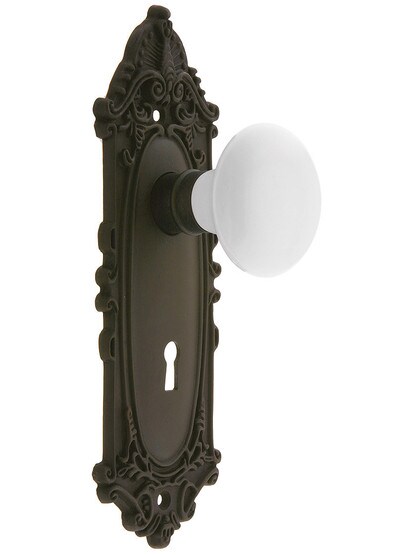

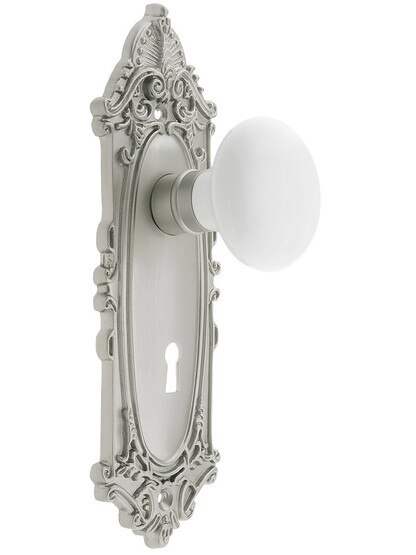

Austere porcelain knobs are an elegant foil for the elaborately decorated back plates of this lovely interior mortise lock set. Introduced by Yale & Town around 1910 as part of their popular Flemish Renaissance line, the "Largo" design is every bit as appealing today. A high quality mortise lock with two skeleton keys provides trouble-free performance and privacy. Finely crafted from solid, forged brass, the "Largo" door set will give you a lifetime of beauty and enjoyment.
Door set dimensions: White porcelain doorknobs measure 2 1/4" in diameter. Back plates are 8 1/4" H x 2 3/4" W.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Door set dimensions: White porcelain doorknobs measure 2 1/4" in diameter. Back plates are 8 1/4" H x 2 3/4" W.
Mortise lock dimensions: Backset is 2 1/4". Lock case: 4" H x 3" W x 5/8" thick. Lock face plate: 6" H x 7/8" W. Strike plate: 4" H x 7/8" W. Standard door range: 1 3/8" to 1 3/4" thick.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Skeleton Key | Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side. |
|
Included Hardware

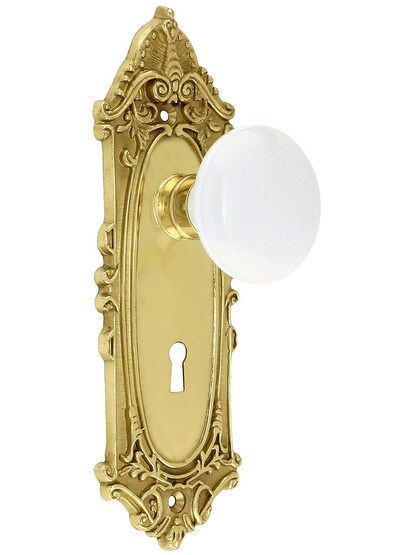

Pictured in Polished Brass. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Backset:On a lock or latch this is the distance from the front of the face plate to the center of the door knob hub.
