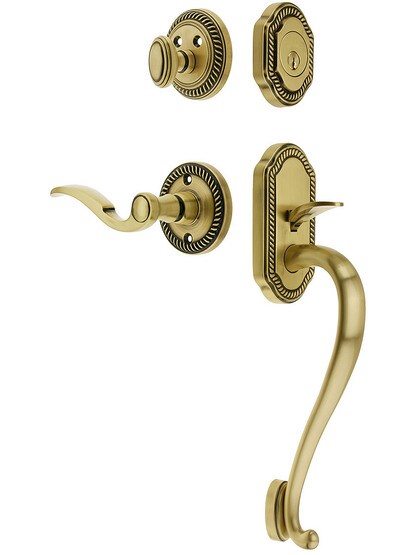

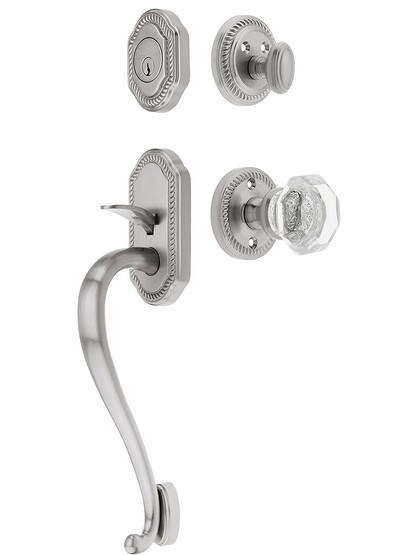

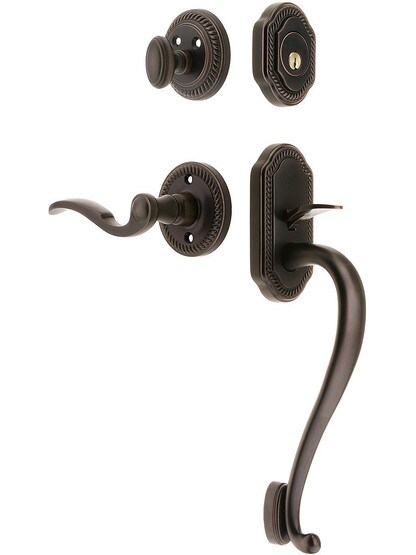

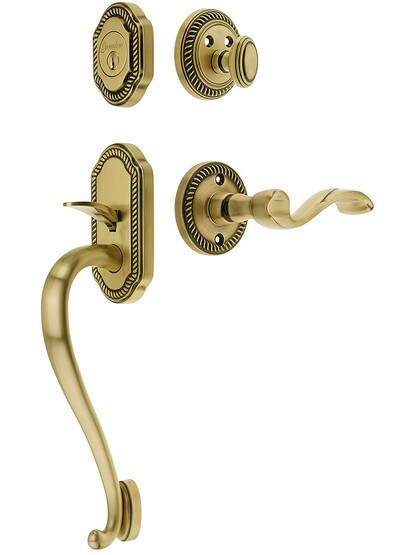

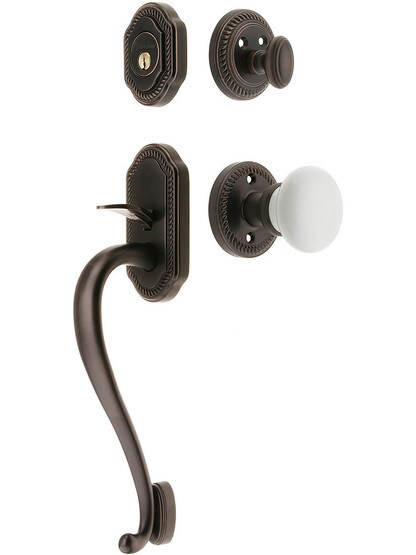

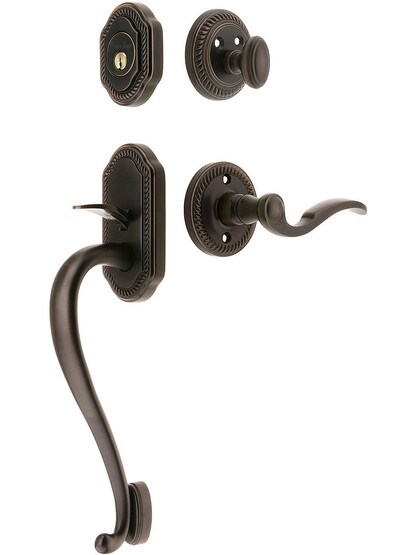

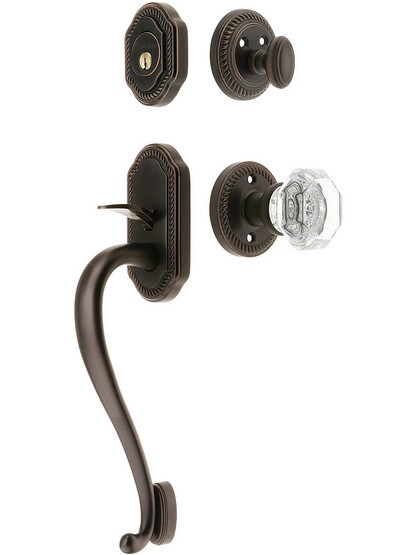

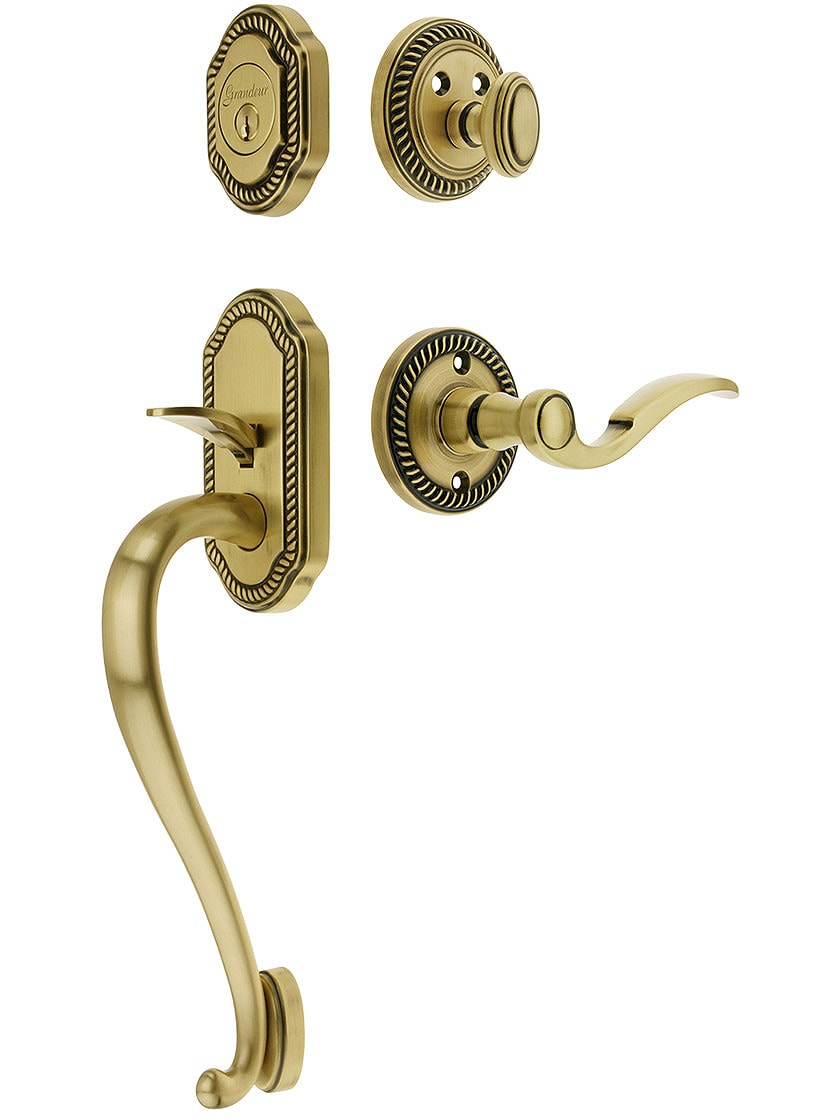

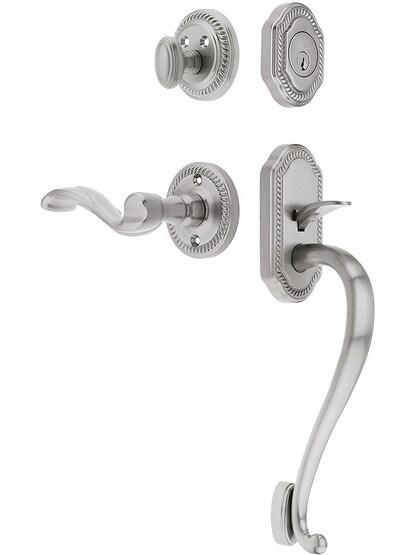

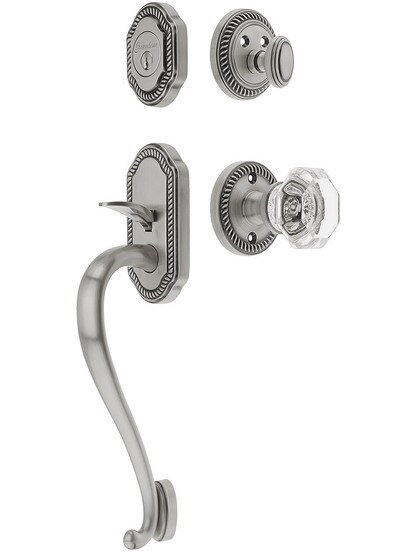

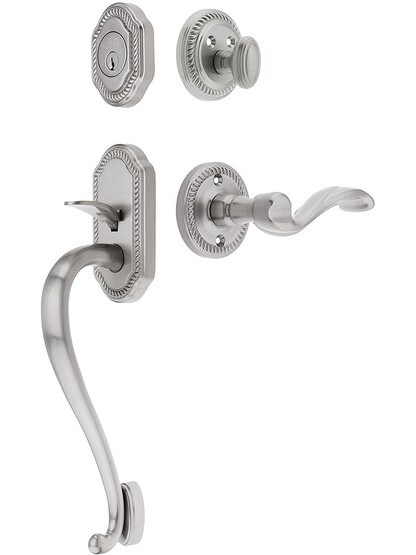

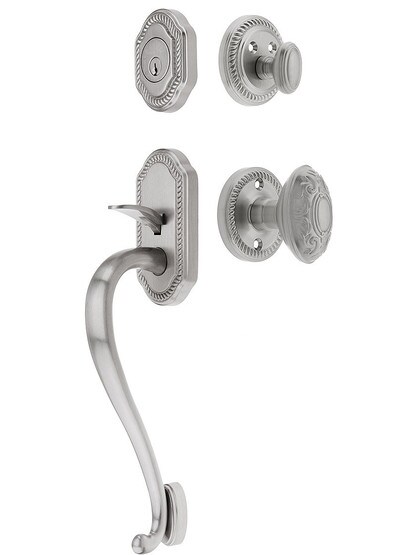

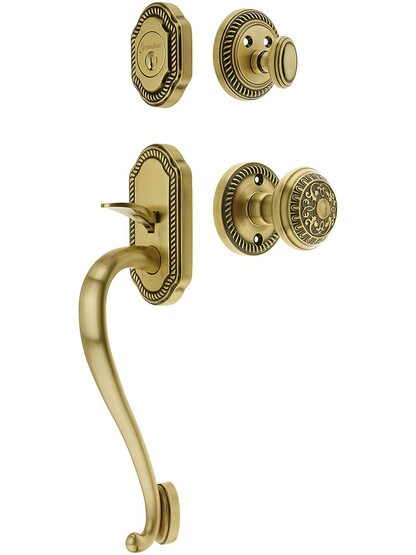

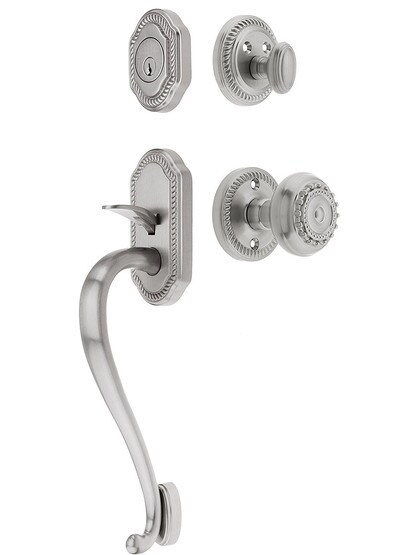

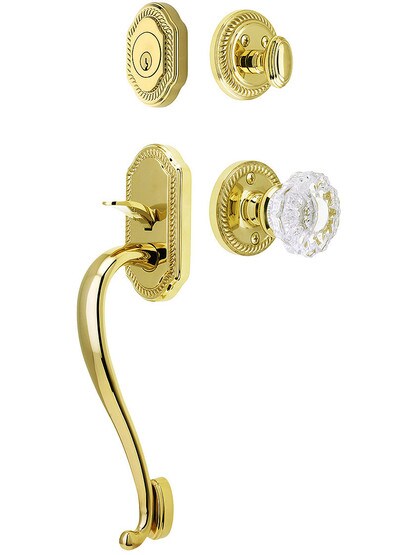

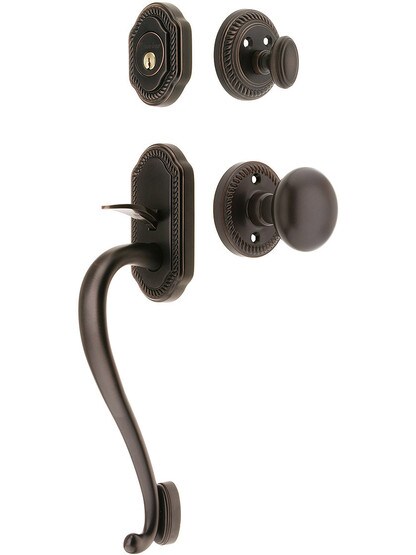

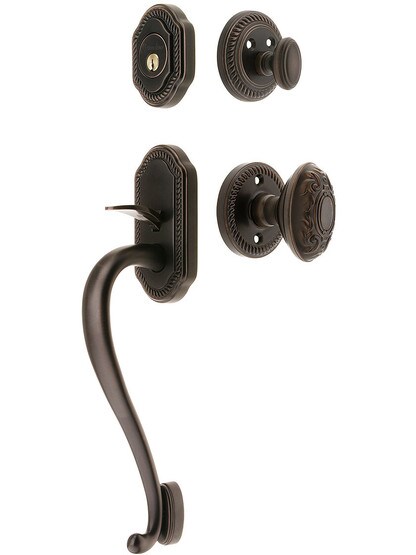

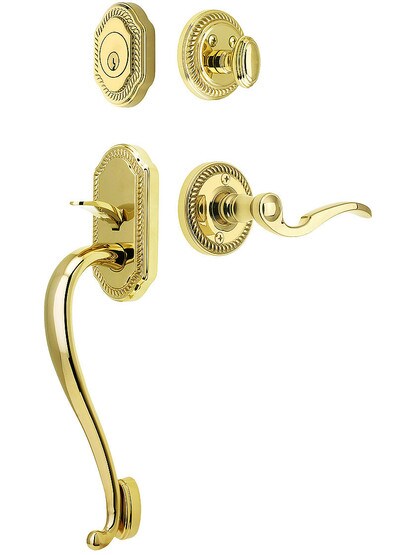

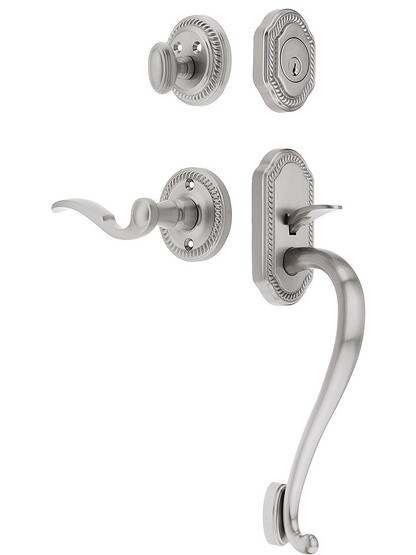

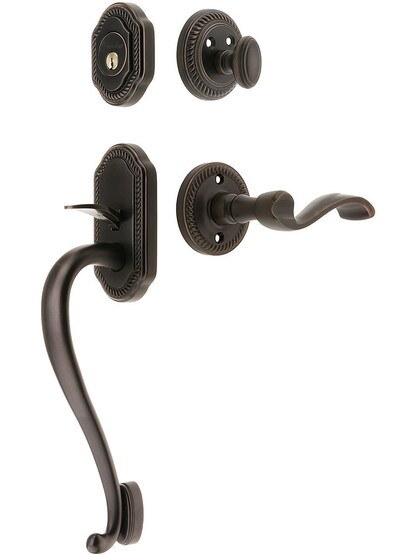

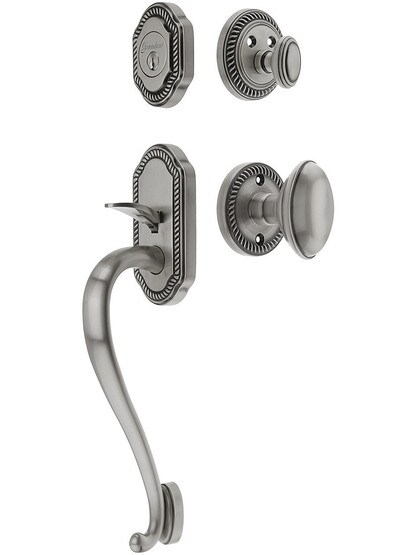

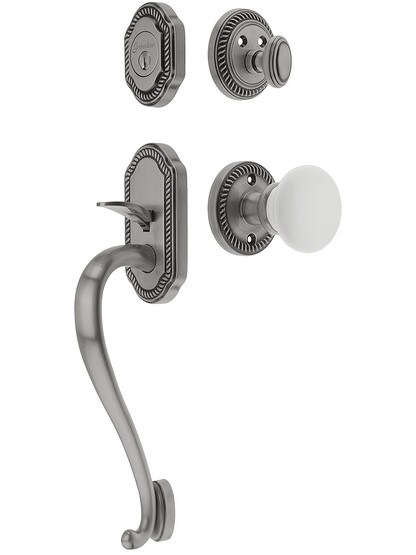

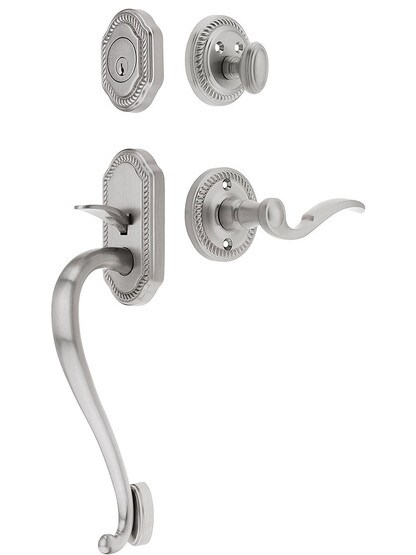

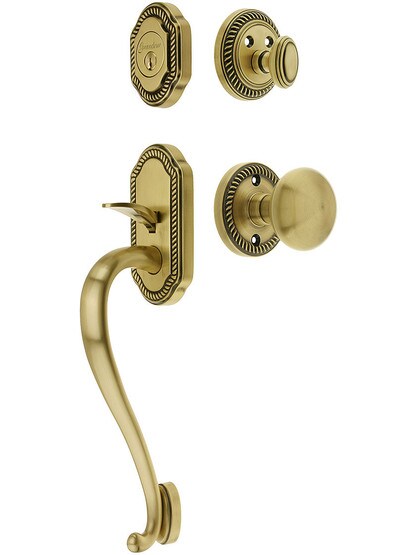

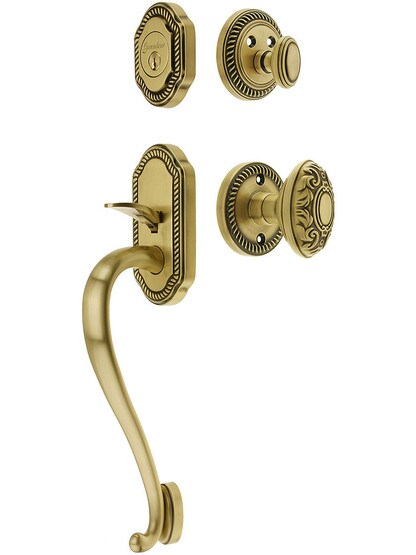

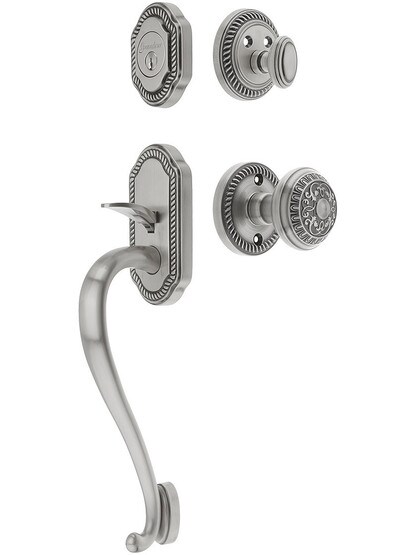

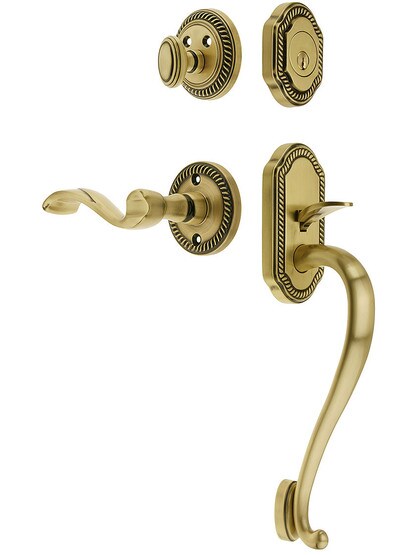

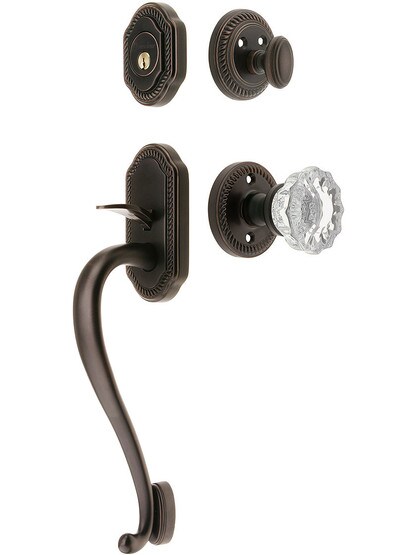

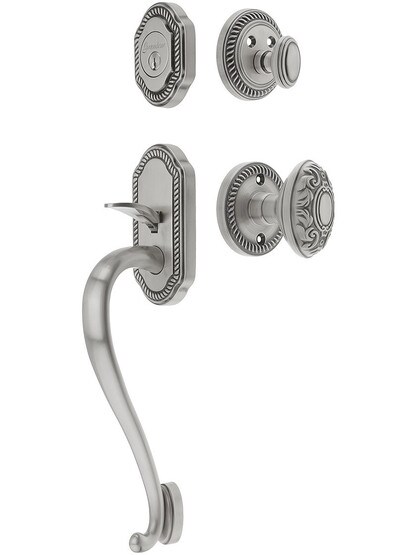

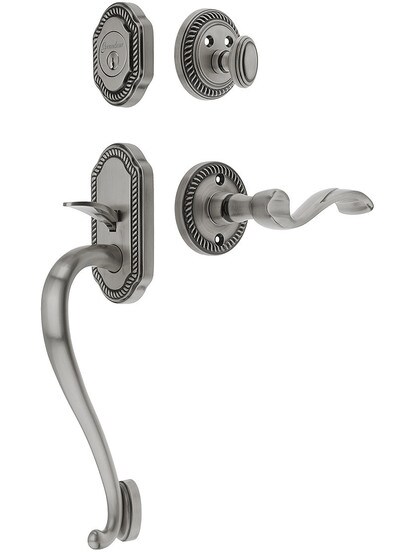

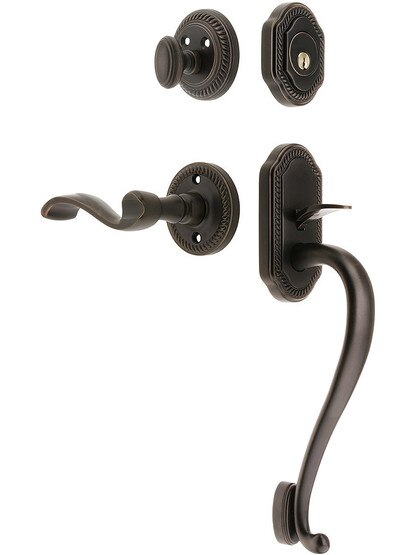

Grandeur "Newport" Thumblatch Entry Door Set With Newport Rosette Interior
Description
A traditional rope border gives the Newport entry set a timeless appeal. Crisp and tailored in appearance, this early 20th century colonial-revival design is still wonderfully fresh and versatile. And with 5 finishes and 10 interior knob / lever options, including solid brass, porcelain and crystal, you can personalize this set to reflect your unique style!
Grandeur's vintage-style doorsets are enhanced with high-tech mechanics, resulting in silky smooth, trouble-free operation unlike anything you've ever experienced. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals or home owners alike. Exceptional forgings, top quality materials, and a 10 year warranty make Grandeur entry hardware the perfect choice for your fine home.
Door set dimensions: Exterior handle is 9 1/2" H. Exterior handle backplate is 4 7/8" x 2 3/4". Interior rosette is 2 5/8" in diameter.
Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.
Deadbolt specs: Diameter of interior face plate is 2 5/8". Exterior faceplate: 3 1/4" H x 2 1/2" W. The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order. A double keyed cylinder is available upon request.
This set will fit doors from 1 3/4" - 2 1/4" in thickness, with a minimum 4 1/2" center to center boring for the latch and deadbolt. A "thick door kit" for doors up to 2 1/4" in thickness is available for a small fee. Other options, including dummy sets, split finishes, and additional knob and interior plate styles, are available by special order. Please call for details.
Grandeur's vintage-style doorsets are enhanced with high-tech mechanics, resulting in silky smooth, trouble-free operation unlike anything you've ever experienced. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals or home owners alike. Exceptional forgings, top quality materials, and a 10 year warranty make Grandeur entry hardware the perfect choice for your fine home.
Door set dimensions: Exterior handle is 9 1/2" H. Exterior handle backplate is 4 7/8" x 2 3/4". Interior rosette is 2 5/8" in diameter.
Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.
Deadbolt specs: Diameter of interior face plate is 2 5/8". Exterior faceplate: 3 1/4" H x 2 1/2" W. The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed alike unless otherwise requested. To key individually or to match a specific key number, please call to place your order. A double keyed cylinder is available upon request.
This set will fit doors from 1 3/4" - 2 1/4" in thickness, with a minimum 4 1/2" center to center boring for the latch and deadbolt. A "thick door kit" for doors up to 2 1/4" in thickness is available for a small fee. Other options, including dummy sets, split finishes, and additional knob and interior plate styles, are available by special order. Please call for details.
Door Sets
| Door Set Functions | ||
| Function | Description | Includes |
Entry | Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware

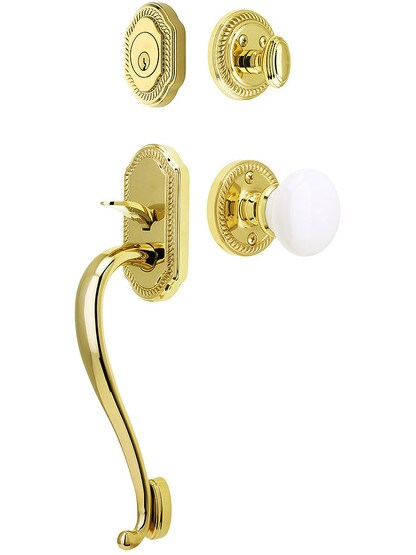

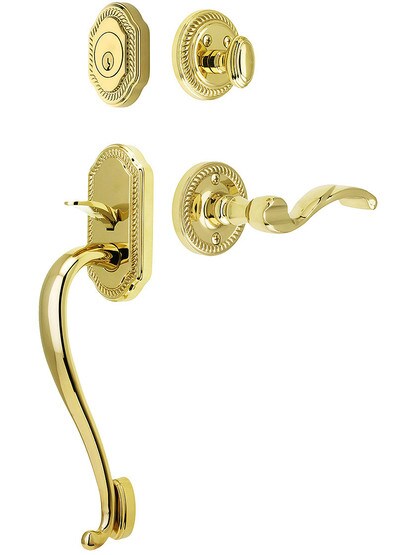

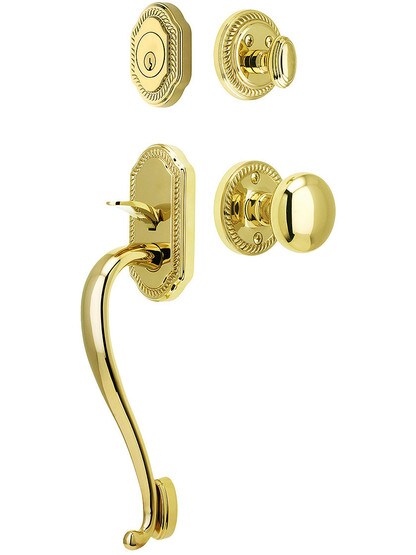

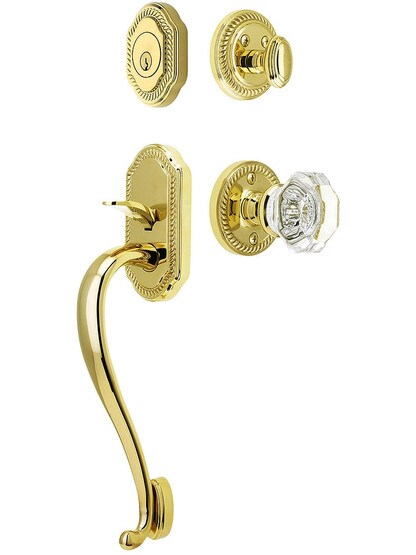

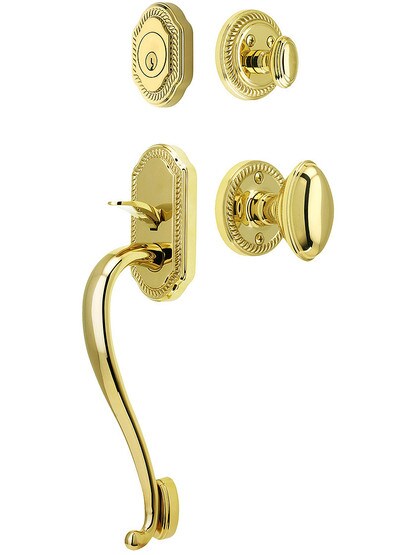

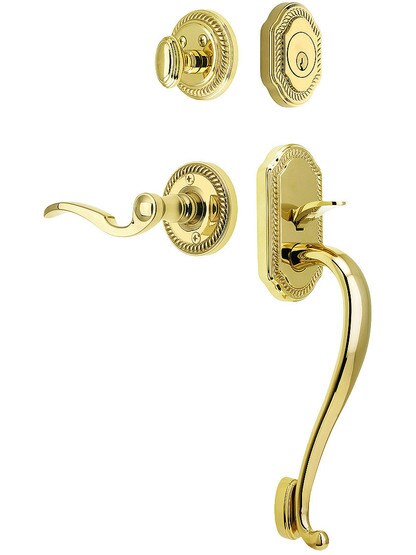

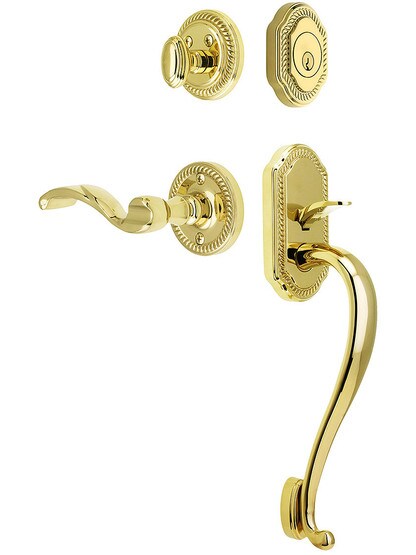

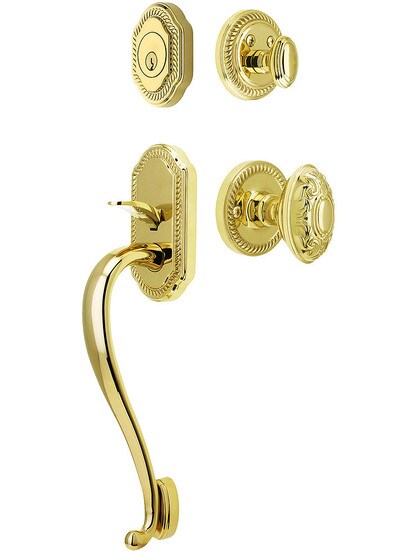

Pictured in PVD Finish. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Thumb latch: Usually refers to a thumbpiece above the door handle, which when depressed by the thumb, unlatches the door.
