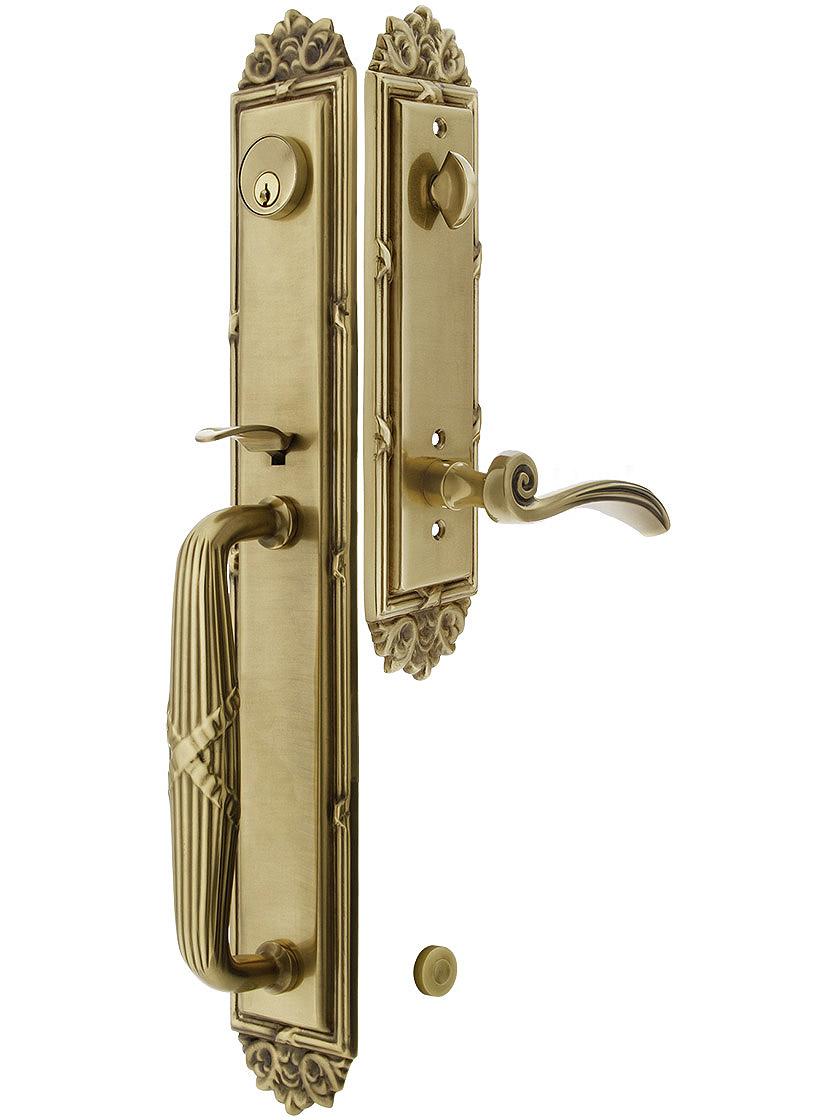

Imperial Style Tubular Handleset With Choice Of Interior Knob Or Lever
Description

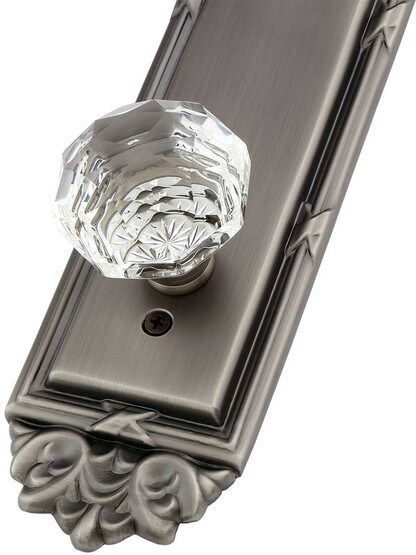

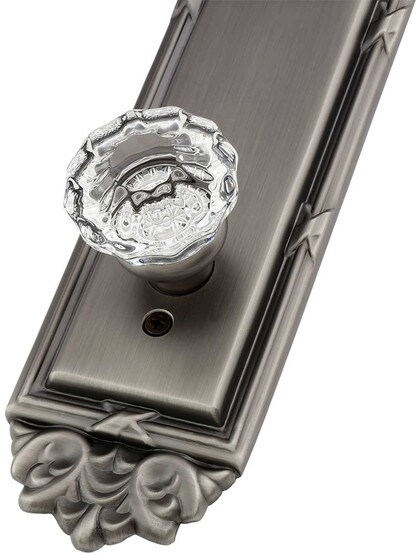

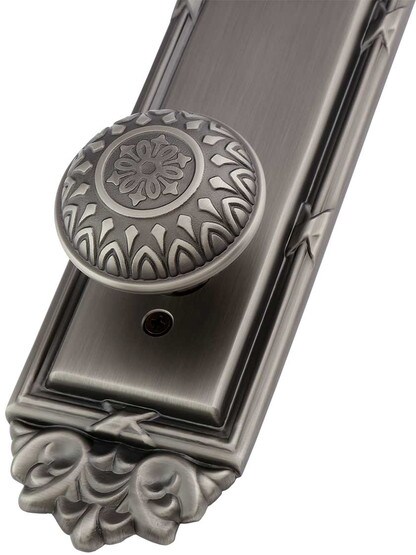

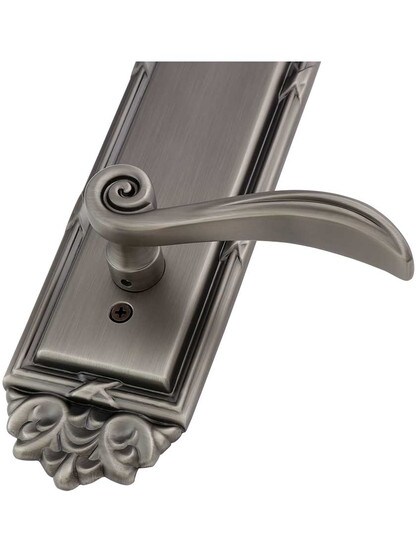

Elegant neoclassical styling with ribbon and reed motifs gives this Imperial thumb latch entrance set a timeless appeal. With six interior knobs or levers and an array of popular finishes to choose from, they'll work with any style of traditional decor. Choose from decorative levers and door knobs made of glittering lead crystal or solid brass - so many ways to express your unique style! These vintage-style doorsets are enhanced with high-tech mechanics, resulting in silky smooth, trouble-free operation unlike anything you've ever experienced. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals or home owners alike. Made of forged solid brass this entry doorset will last for years to come.
Door set dimensions: Exterior handle backplate is 18" x 3". Interior backplate is 12 3/16" H x 3" W.

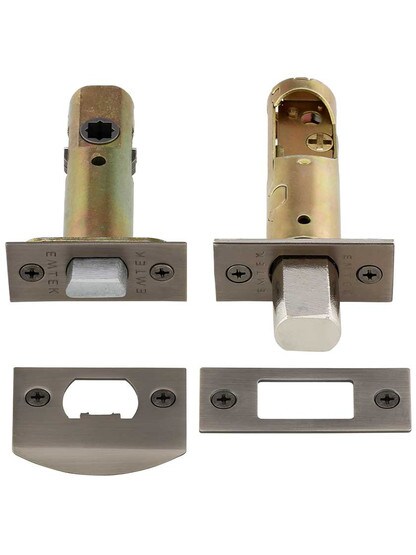

Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.
Deadbolt specs: Decorative face plates are 2 3/4" H x 1 1/8" W". The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed differently unless otherwise requested. To key alike or to match a specific key number, please call to place your order. A double keyed cylinder is available upon request.
This set will fit doors from 1 3/4" - 2 1/8" in thickness, with a 5 1/2" center to center boring for the latch and deadbolt. Extended version can be ordered for doors up to 3" in thickness, call for details. Other options, including dummy sets, split finishes, and additional knob and interior plate styles, are available by special order. Please call to order.
Door set dimensions: Exterior handle backplate is 18" x 3". Interior backplate is 12 3/16" H x 3" W.
Latch dimensions: Backset is 2 3/8" or 2 3/4" - specify when ordering. Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W.
Deadbolt specs: Decorative face plates are 2 3/4" H x 1 1/8" W". The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed differently unless otherwise requested. To key alike or to match a specific key number, please call to place your order. A double keyed cylinder is available upon request.
This set will fit doors from 1 3/4" - 2 1/8" in thickness, with a 5 1/2" center to center boring for the latch and deadbolt. Extended version can be ordered for doors up to 3" in thickness, call for details. Other options, including dummy sets, split finishes, and additional knob and interior plate styles, are available by special order. Please call to order.
Door Sets
Door Set Functions | ||
Function | Description | Includes |
Entry | Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware

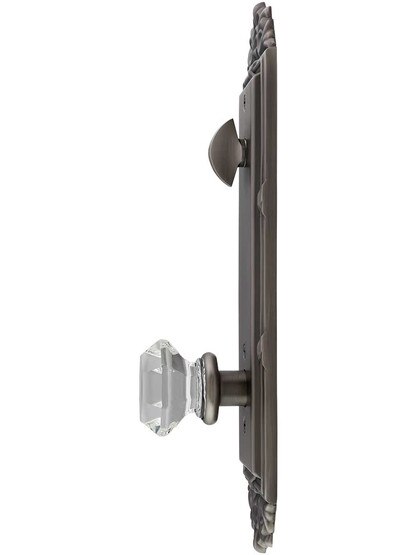

Pictured in PVD Finish. Your hardware will match the finish selected.
Installation
Installation Instructions
How to install this product in a typical situation.
Hardware Tip
Thumb latch: Usually refers to a thumbpiece above the door handle, which when depressed by the thumb, unlatches the door.
