Warwick Rosette & Knob Mortise Entry Set With Black Lacquer Finish

Your Selection:

$841.90 Sold Out
Quantity discounts available
QuantityPrice
Item #: RS-05AH-WTJBIX

Description

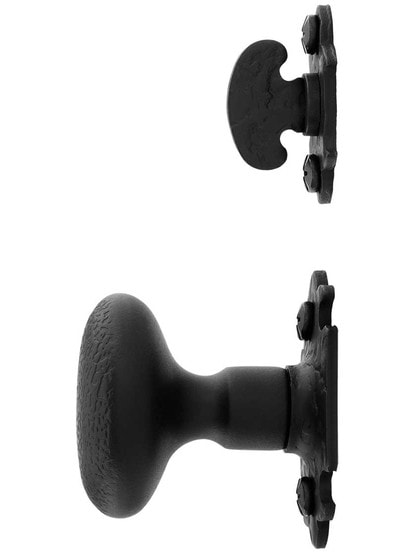

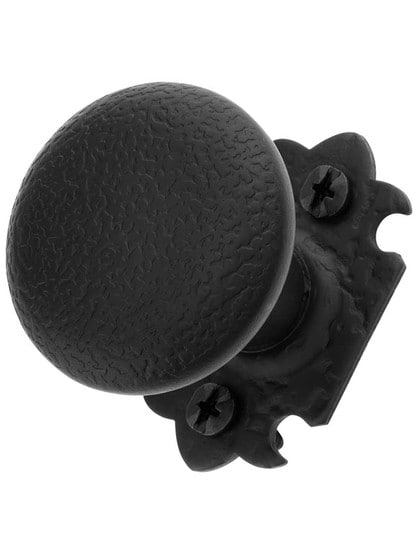

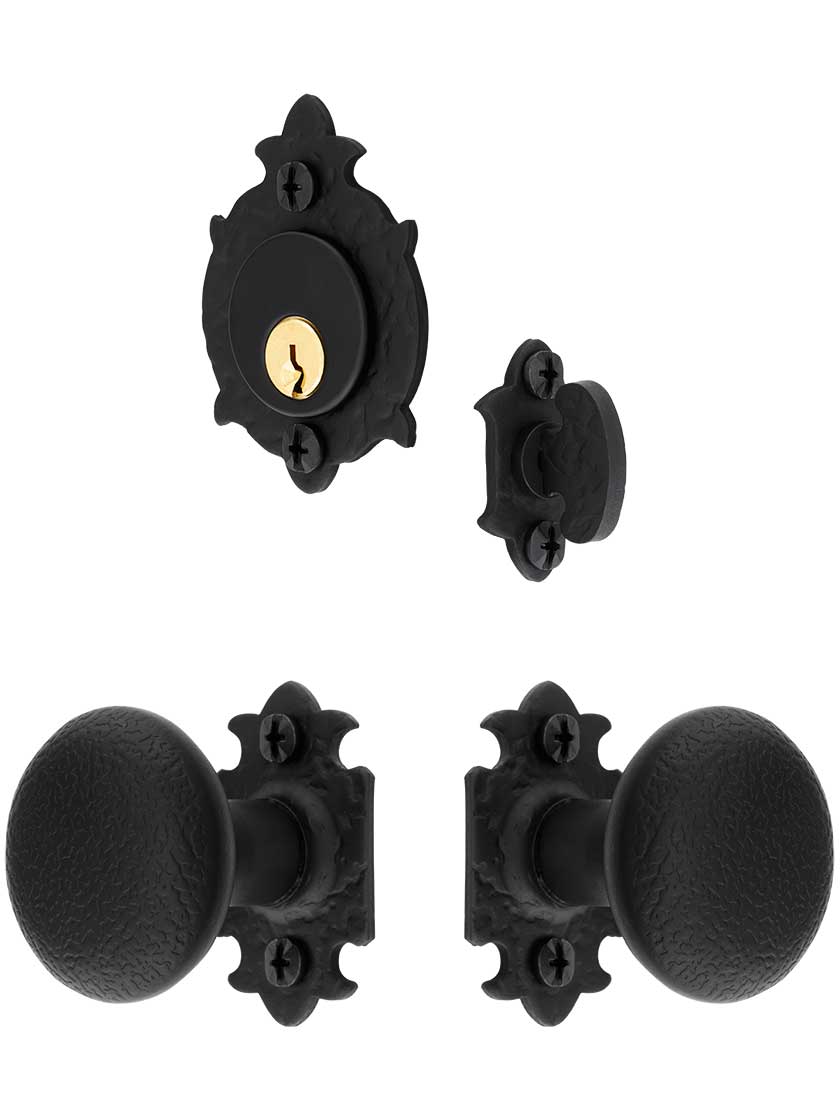

Inspired by European hardware of the 16th century, this charming and understated entry set is ideal for English Tudor, French Country, or other romantic styles of home. The fanciful rosettes and petite knobs are made of heavy duty forged iron with a rustic surface texture. A durable black lacquer finish makes the knobs smooth to the touch and protects each piece from the elements. Set includes a top quality, American made mortise lock with auxillary privacy function (lock is handed, please specify door swing when ordering).

Dimensions. Knobs: 2" diameter, 1 7/8" projection. Rosettes: 2 1/2" H x 1 1/2" W. Thumbturn: 1 3/4" H x 1 1/8" W. Cylinder ring: 2 7/8" H x 2 1/8" W. Mortise lock backset: 2 1/2". Lock case: 6" H x 3 5/8" W x 15/16" T. Lock face plate: 8" H x 1 1/4" W. Strike plate: 4 7/8" H x 1 1/4" W. The lock includes a 1 1/8" cylinder and 2 standard keys.
This set is designed to fit 1 3/4" thick doors.
Handing is required for this set. For questions about handing, for thicker doors or a double keyed option, please call for assistance.

This lock has egress and can cause lock outs if the stop button is not disengaged when exiting the door.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a knob/lever on the exterior and on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 2 Knobs/levers
  • 2 Back plates/rosettes
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys

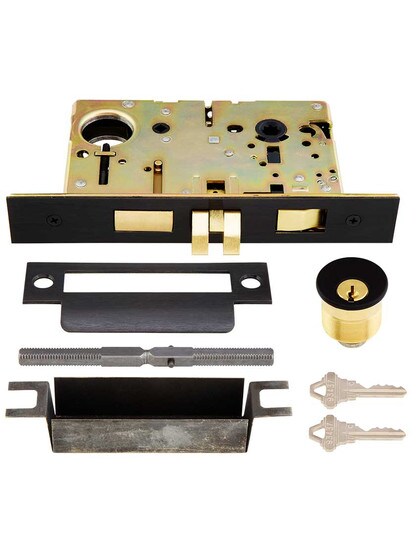

  • 1 Entry mortise lock
  • 1 Matching lock strike plate
  • Matching screws
  • All necessary mounting accessories

Included Hardware

Pictured in Matte Black.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Entry Mortise Lock: A large mortise lock that is operated by knobs, levers or thumb latches and has either a modern keyed cylinder or a skeleton key operated deadbolt.
