Solid Bronze Angular Thumb-Latch Tubular Entry Set

Your Selection:

Select Your Knobs - Handing:


$1,108.00 Sold Out
Quantity discounts available
QuantityPrice
Item #: RS-05AN-AGTUB-50X

Description

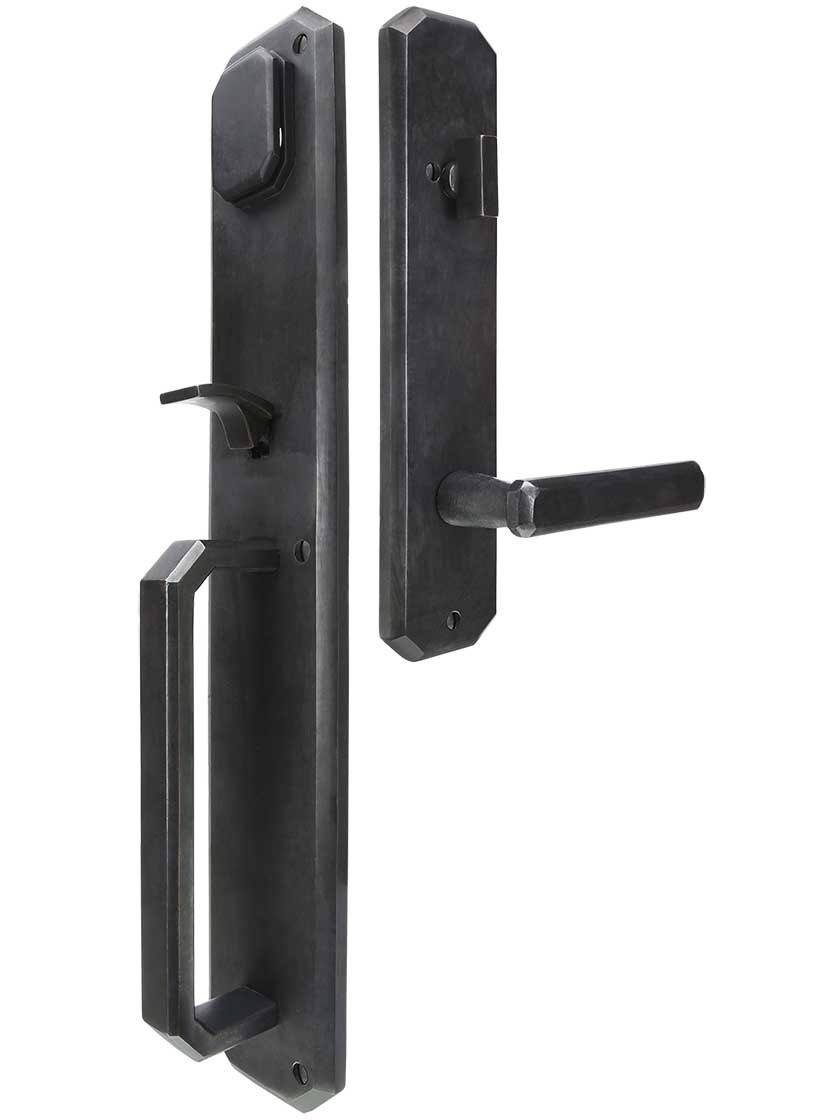

With its rustic, yet refined presence, our Solid Bronze Angular Thumb-Latch Tubular Entry Set suits a variety of styles, from Traditional to Urban. The hand-applied finish ages gracefully, with frequently touched areas exposing the natural shades of the bronze, while other areas oxidize further. The result? An elegant and timeless display of contrasting color variations. Handcrafted from the finest-quality materials, each piece has its own, unique character. This entry set boasts high-tech mechanics, resulting in silky smooth, trouble-free operation and zero lever sag. Created expressly for modern, pre-drilled doors, installation is quick and easy for professionals and home owners alike.

Door set dimensions:
Artemis Lever: 4 7/8" L overall (4 1/2" to center) x 2" projection.
Alessa Lever: 4 7/8" L overall (4 1/2" to center) x 2 1/8" projection.
Backplates: Exterior handle is 8" H. Exterior handle backplate is 18 1/8" H x 3" W. Interior backplate is 11" H x 2 1/2" W x 3" Bottom to lever center.

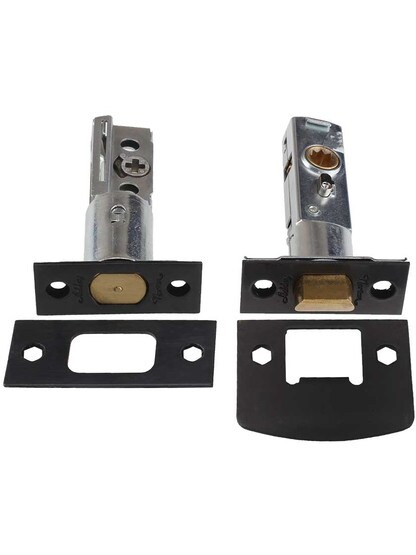

Latch dimensions: Latch case: 7/8" diameter. Face plate: 2 1/4" H x 1" W. Full liped strike: 2 1/4" H x 2 1/4" W.
Standard door range: 1 3/4" thick.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Entry
Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside.
  • 1 Grip handle with thumbpiece and backplate
  • 1 Knob/Lever
  • 1 Interior backplate/rosette
  • 1 Lock cylinder with matching backplate
  • 1 Thumbturn with matching backplate
  • 2 Keys
  • 1 Passage latch with matching face plate
  • 1 Deadbolt with matching face plate
  • 1 Matching latch strike plate
  • 1 Matching deadbolt strike with reinforcer
  • Matching screws
  • All necessary mounting accessories

Included Hardware

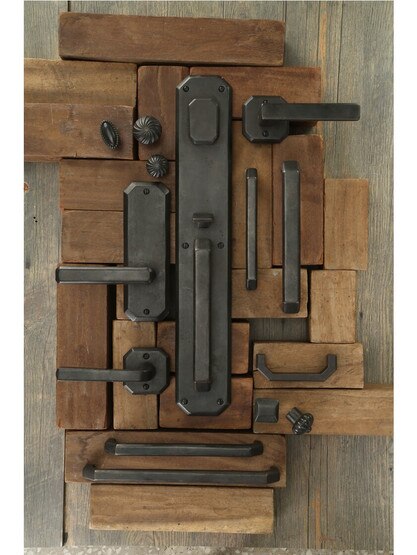

Pictured in Dark Bronze Finish.

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Backset: On a lock or latch, it is the distance from the front of the face plate to the center of the knob hub. On the door, it is from the edge of the door to the center of the door knob.
