Solid Brass Scroll Rim Lock Set with White Porcelain Knobs

Your Selection:

Select Your Finish:


$182.90 Sold Out
Quantity discounts available
QuantityPrice
Item #: R-01HH-1033-WHT-AB

Description

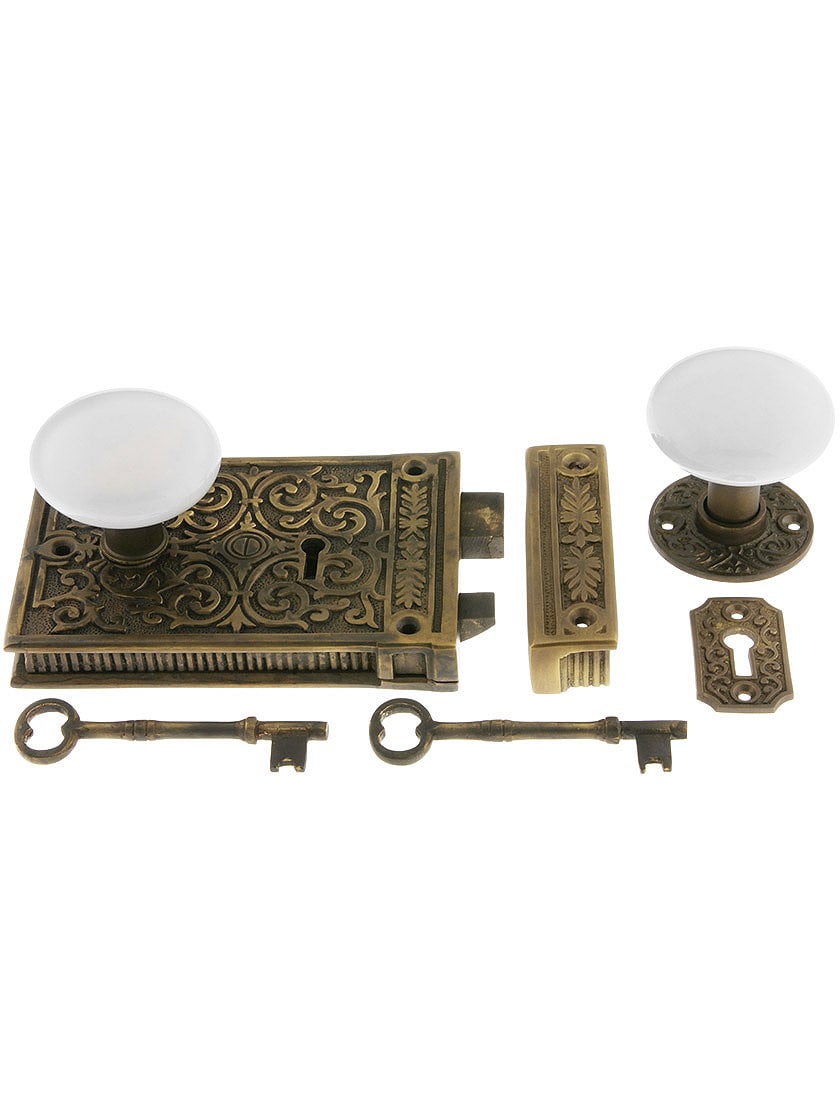

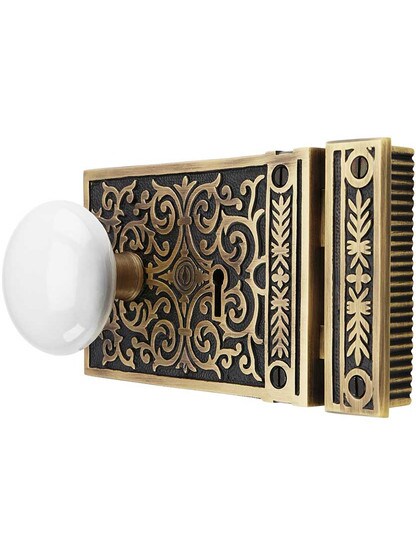

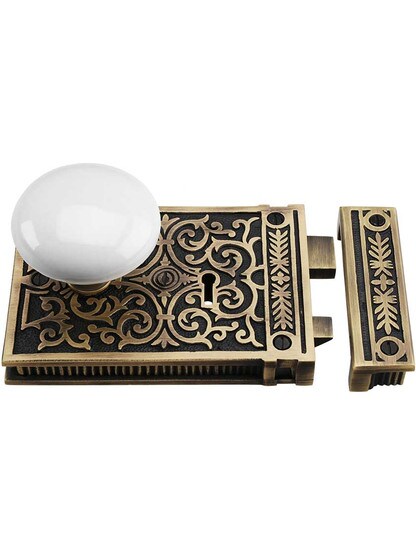

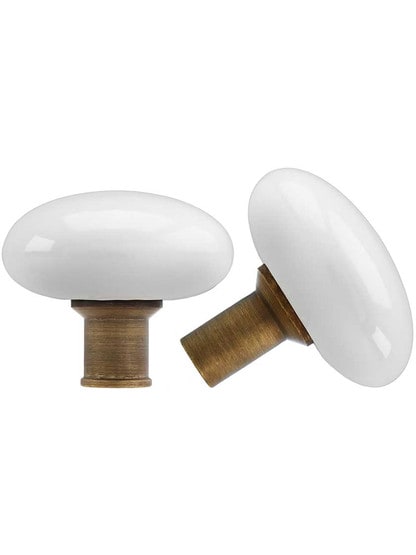

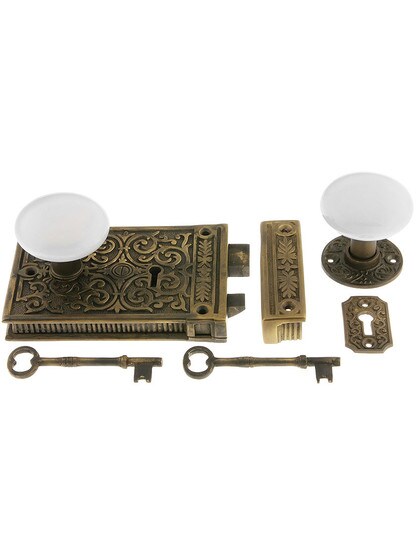

Exquisite in every detail, this complete Victorian rim lock set will please the most discerning restorer. Dating from the 1870s, the ornate design is carefully recreated in cast brass with a lovely antique finish. As functional as it is beautiful, the set features gleaming white porcelain knobs, mostly brass interior parts and a key-operated deadbolt. It also includes a rosette, keyhole cover and two skeleton keys. Easily reversible for right or left handed doors.

Dimensions: Lock body: 5 1/8" W x 3 1/2" H x 3/4" Thick. Keeper: 3/4" W x 4 3/4" H x 13/16" Thick. Backset: 3 7/8". Knobs: 2 3/8" diameter. Rosette: 2" diameter. Keyhole cover: 1 15/16" H x 1 1/8" W.

Door Thickness: 1" to 1 3/4". Spindles: Includes 3 1/2" & 4" lengths both 20 TPI and 9/32" W. Use 3 1/2" spindle for 1" to 1 1/2" thick doors, use 4" for 1 5/8" to 1 3/4" thick. Includes an Allen wrench and set screws for mounting knobs to spindle.

Door Sets

Door Set Functions
FunctionDescriptionIncludes
Skeleton Key
Latch and skeleton key lock - The knobs turn and operate a latch. A skeleton key is used to lock and unlock the door. Typically found on vintage interior doors that can be locked and unlocked from either side.
  • 2 Knobs
  • 1 Rosette and 1 keyhole cover
  • 1 Skeleton key rim lock
  • 1 Matching rim keeper
  • Matching screws
  • 1 Spindle and 2 keys

Installation

Installation Instructions

How to install this product in a typical situation.

Hardware Tip

Rim locks are attached to the surface of a door operated by a knob or lever. Rim locks are mounted on in-swing doors on the inside of a room with a skeleton key and/or privacy bolt to lock.
