Description
In the late Victorian era, Renaissance Revival style entry sets graced some of America's finest homes. This stunning recreation of Russell & Erwin's "Bramante" pattern is loaded with classical details, from the fanciful dolphin crest to the corucopia-laden base. The exterior features an elegant curved handle, while the interior offers knobs or levers. Made of premium cast brass, with your choice of 4 classic finishes.
Door set dimensions. Exterior plate: 25 1/2" H x 3 5/8" W . Interior plate: 18" H x 3 5/8" W. Scroll levers: 4" L x 2 3/4" P. Crystal Levers: 4 7/8" L x 2 7/8" P. Maltesia Knobs: 2 1/2" D x 3" P. Octagon crystal knobs: 2 1/4" D x 2 3/4" P. Projection for all knobs & levers includes back plate thickness.
Latch dimensions. Latch face plate: 2 1/4" H x 1" W. Latch case: 7/8" D. Backset: 2 3/8" or 2 3/4". Strikeplate: 2 3/4" H x 1 1/8" W. Tongue: 1/2".
Deadbolt specs. Double and single cylinder options are available and must be specified when ordering. Deadbolt faceplate: 2 1/4" H x 1" W". Latch case: 1" D. Strikeplate: 2 3/4" H x 1 1/8" W. The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed differently unless otherwise requested. To key alike or to match a specific key number, please call to place your order.
This set will fit doors 1 3/4" in thickness, with a 5 1/2" center to center boring for the latch and deadbolt. For thicker doors or other options, including dummy sets, split finishes, and additional knob and interior plate styles, are available by special order. Please call to order.
Door set dimensions. Exterior plate: 25 1/2" H x 3 5/8" W . Interior plate: 18" H x 3 5/8" W. Scroll levers: 4" L x 2 3/4" P. Crystal Levers: 4 7/8" L x 2 7/8" P. Maltesia Knobs: 2 1/2" D x 3" P. Octagon crystal knobs: 2 1/4" D x 2 3/4" P. Projection for all knobs & levers includes back plate thickness.
Latch dimensions. Latch face plate: 2 1/4" H x 1" W. Latch case: 7/8" D. Backset: 2 3/8" or 2 3/4". Strikeplate: 2 3/4" H x 1 1/8" W. Tongue: 1/2".
Deadbolt specs. Double and single cylinder options are available and must be specified when ordering. Deadbolt faceplate: 2 1/4" H x 1" W". Latch case: 1" D. Strikeplate: 2 3/4" H x 1 1/8" W. The deadbolt has a pick-resistant Schlage C keyway and a 1" throw. Multiple sets on one order will be keyed differently unless otherwise requested. To key alike or to match a specific key number, please call to place your order.
This set will fit doors 1 3/4" in thickness, with a 5 1/2" center to center boring for the latch and deadbolt. For thicker doors or other options, including dummy sets, split finishes, and additional knob and interior plate styles, are available by special order. Please call to order.
Door Sets
Door Set Functions | ||
Function | Description | Includes |
Entry | Latch and lock - The door is opened by a thumb latch on the exterior and by a knob/lever on the interior. The locking deadbolt is operated by a key from the outside and by a thumbturn on the inside. |
|
Included Hardware

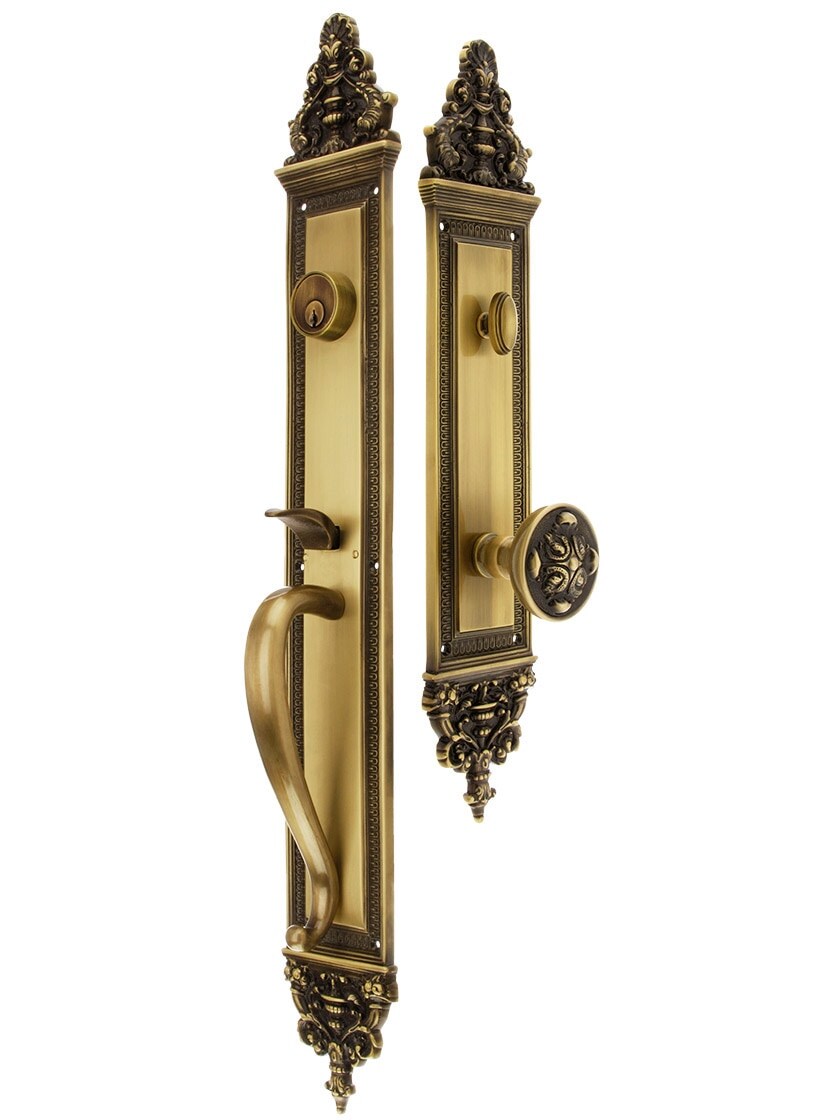

Pictured in AB Finish. Your hardware will match the finish selected.
Hardware Tip
Thumb latch: Usually refers to a thumbpiece above the door handle, which when depressed by the thumb, unlatches the door.
