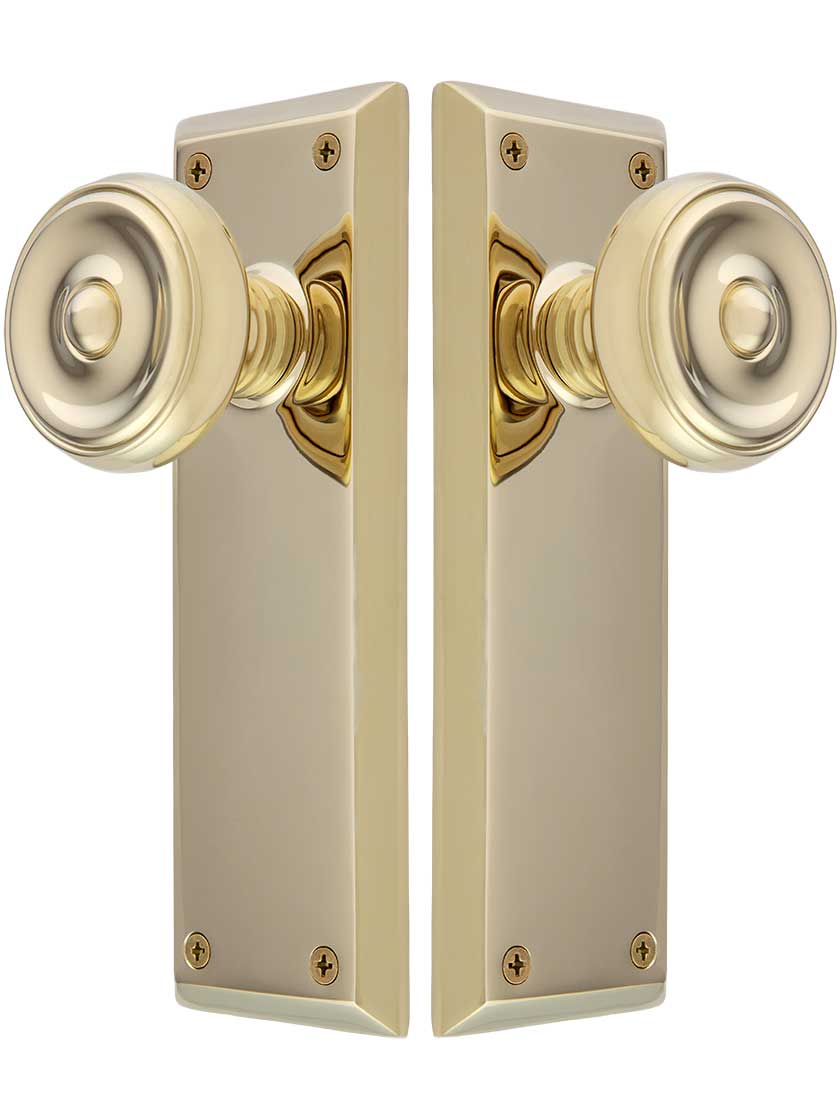

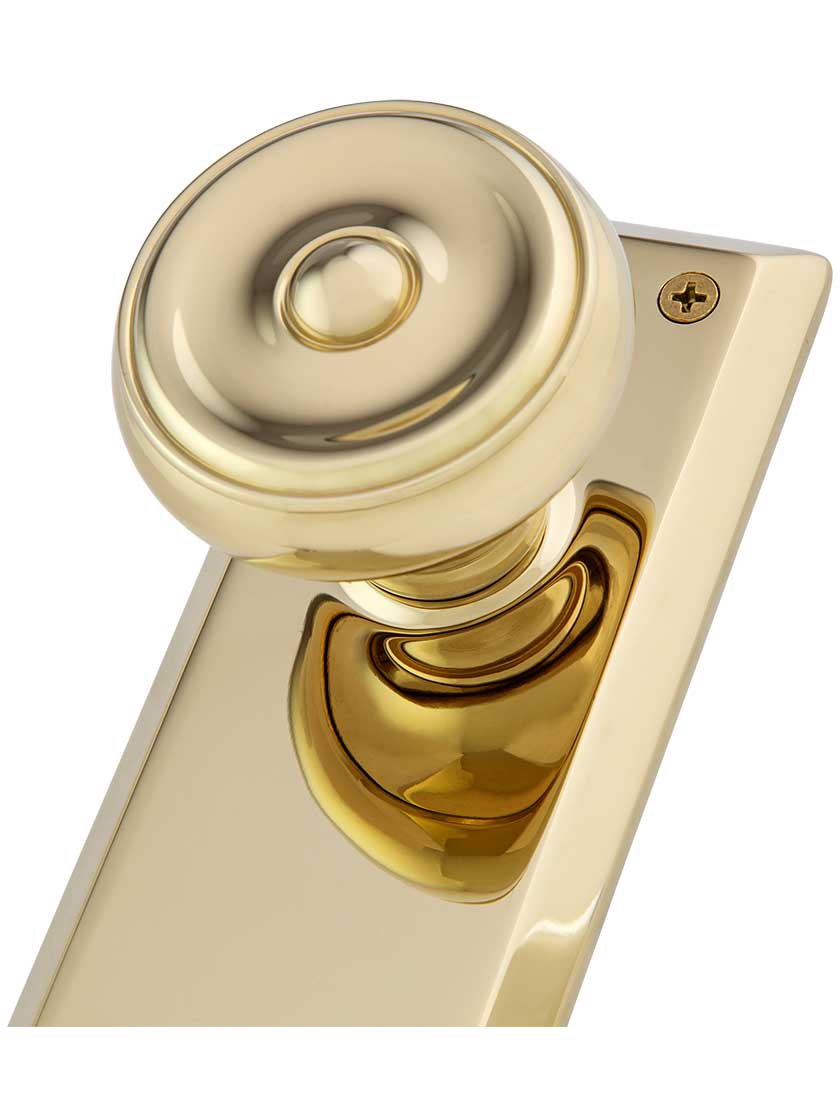

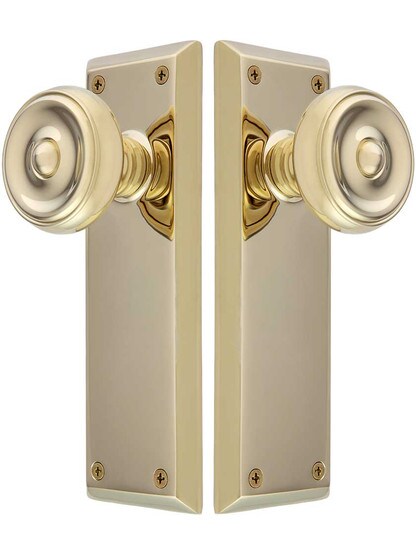

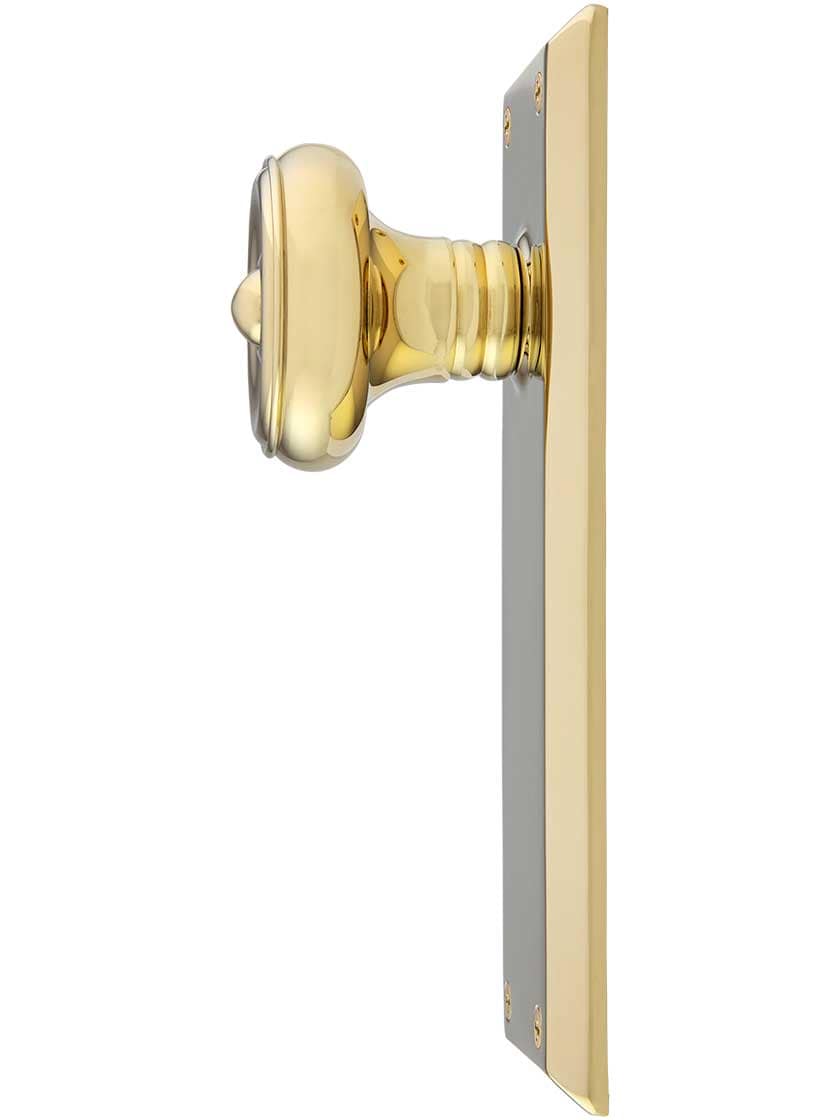

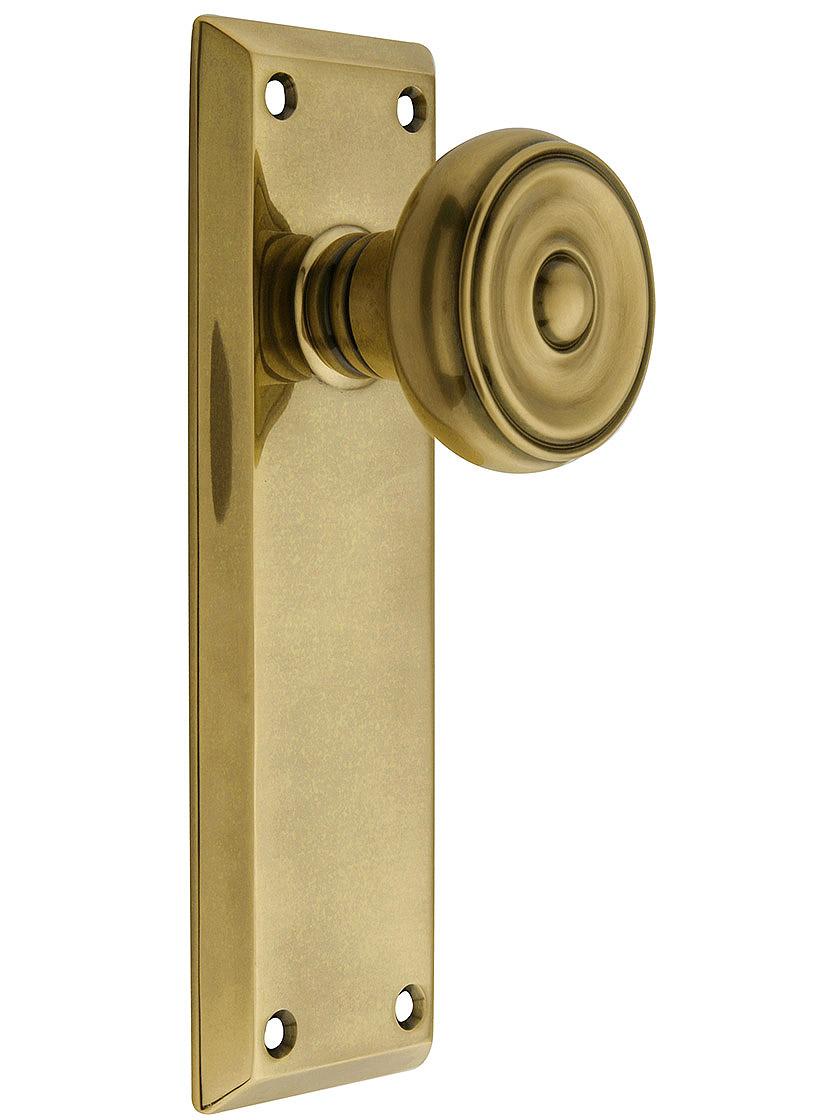

Spare, yet elegant, the Quincy door set exudes early 20th century style. We've updated this classic design with a modern tubular latch to accommodate pre-drilled doors and make installation quick and easy. Heavy-duty spring assisted knobs provide incredibly smooth turning action, giving you vintage style without the "rattle". Finely crafted from solid forged brass, the Quincy door set guarantees you a lifetime of beauty and superior performance.
Door set dimensions: Brass knobs measure 2 1/4" in diameter. Back plates measure 7 1/8" H x 2 3/8" W.

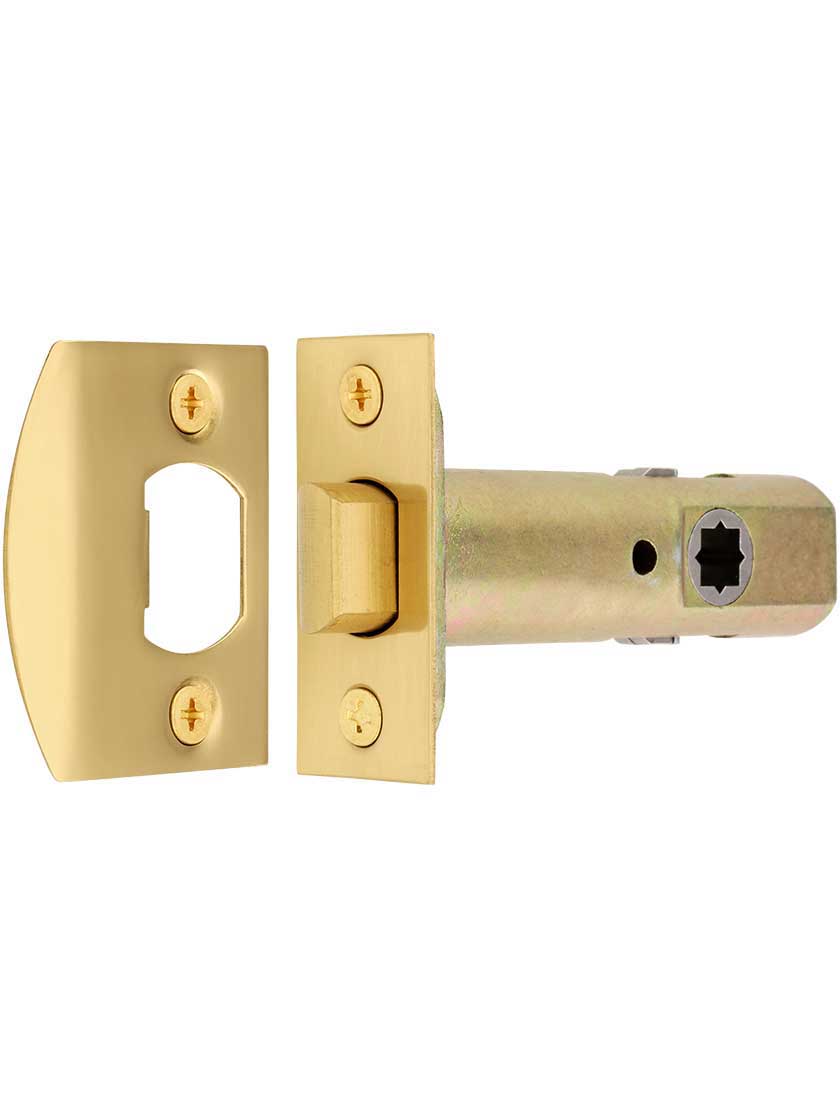

Latch dimensions: Backset: 2 3/8" (non-standard 2 3/4" backset available; call for details). Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W.
Forged: Process of forming brass or other metals into a particular shape by heating the metal and hand pounding or cutting with high pressure dies. Items made in this way are very strong and heavy. Learn about hardware >
Click here or on the section header to hide this section.
Door Set Functions
Function
Description
Includes
Double Dummy
No latch or lock - the knobs on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door.
2 Knobs
2 Backplates
Matching Screws
All necessary mounting accessories
Passage
Latch but no lock - The knobs turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt.
2 Knobs
2 Backplates
1 Passage Latch with matching face plate
1 Matching strike plate
Matching screws
All necessary mounting accessories
Privacy
Latch and lock - This set has a privacy pin next to the knob which is pushed to lock and pulled to unlock. The door can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors.
2 Knobs
2 Backplates
1 Privacy Latch with matching face plate and privacy pin
