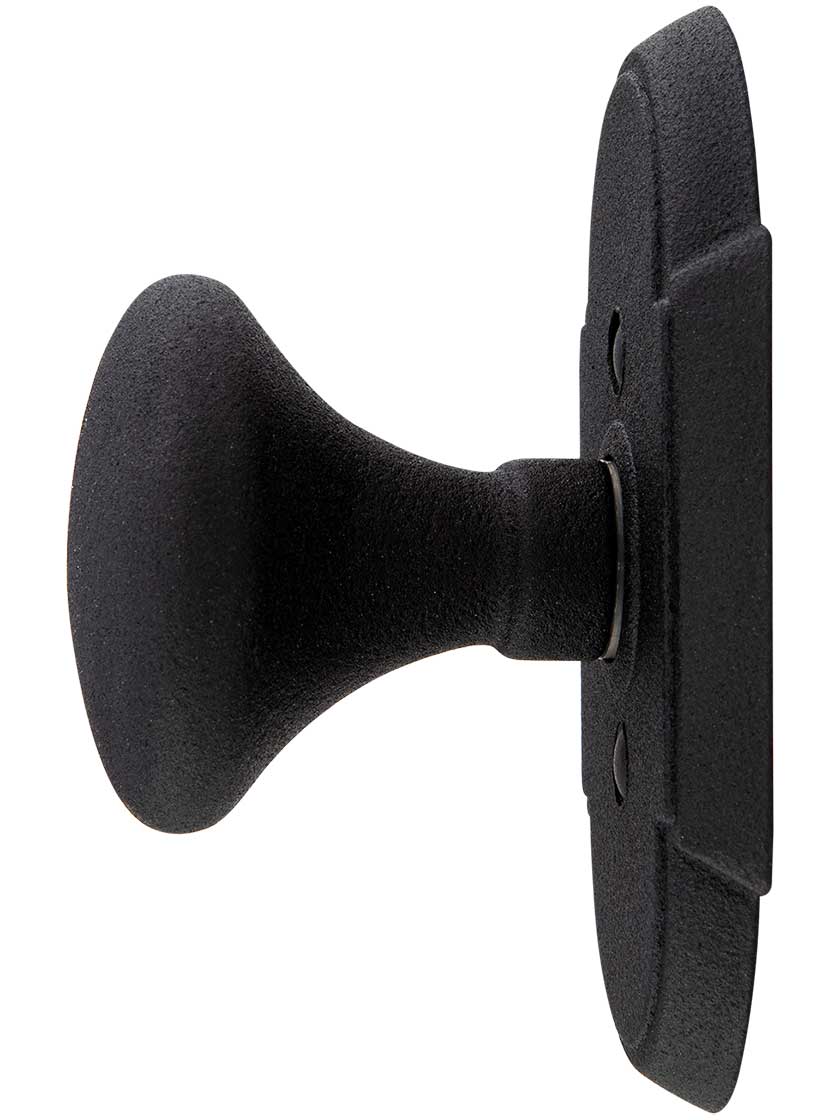

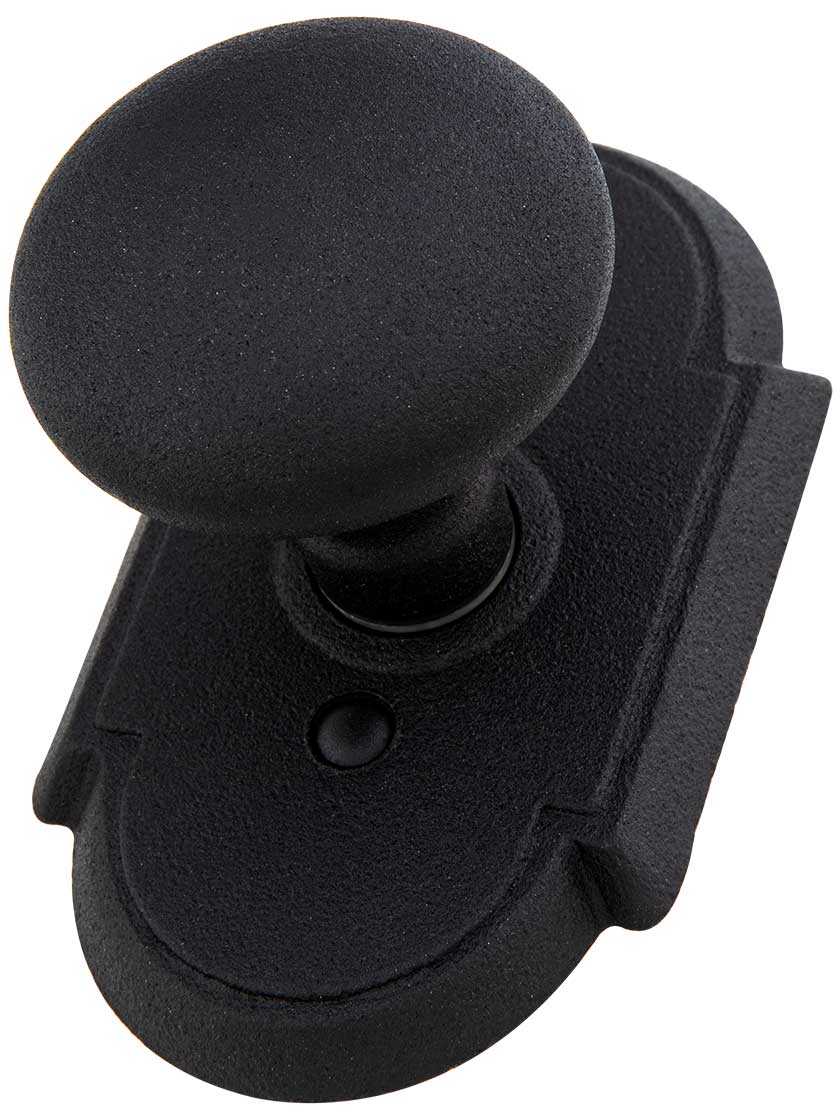

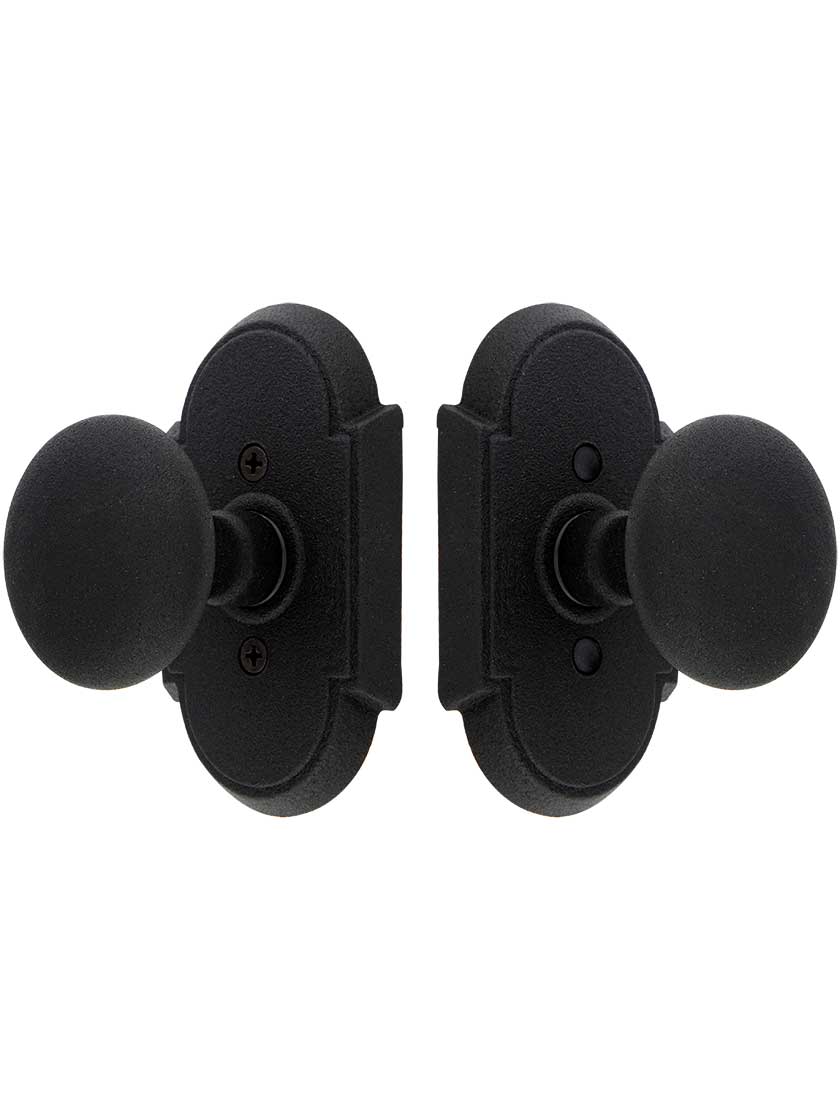

With its rugged texture and weathered finishes, this arch top door set is a perfect choice for your colonial, Tudor or other rustic style of home. The wrought steel handles and rosettes are hot forged, distressed and relieved to achieve an appearance of graceful wear. Equipped with heavy-duty spring assisted mechanics, this unique set will give you a lifetime of quality performance.
Door set dimensions: Round steel knobs are 2 1/8" in diameter. Rosettes measure 4 3/8" H x 2 9/16" W.
Latch dimensions: Backset: 2 3/8" (non-standard 2 3/4" backset available; call for details). Latch case: 7/8" diameter. Latch face plate: 2 1/4" H x 1" W
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. Learn about hardware >
Click here or on the section header to hide this section.
Door Set Functions
Function
Description
Includes
Double Dummy
No latch or lock - the knobs on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door.
2 Knobs
2 Rosettes
Matching Screws
All necessary mounting accessories
Passage
Latch but no lock - The knobs turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt.
2 Knobs
2 Rosettes
1 Passage Latch with matching face plate
1 Matching strike plate
Matching screws
All necessary mounting accessories
Privacy
Latch and lock - This set has a privacy pin next to the knob which is pushed to lock and pulled to unlock. The door can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors.
2 Knobs
2 Rosettes
1 Privacy Latch with matching face plate and privacy pin
