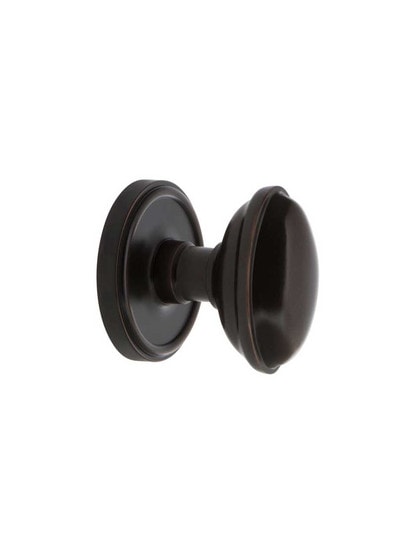

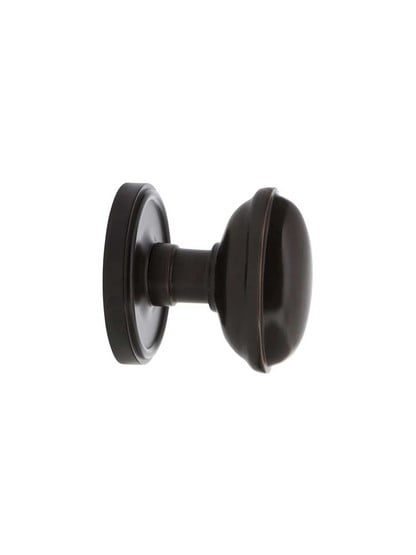

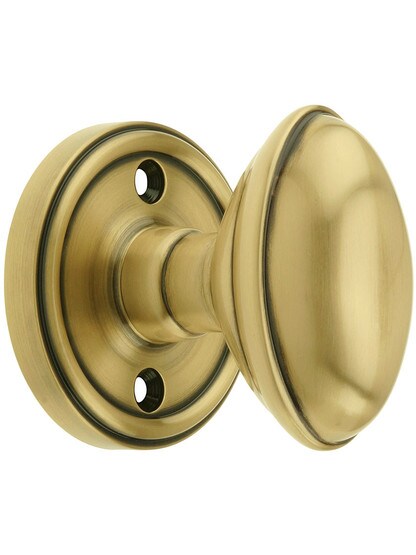

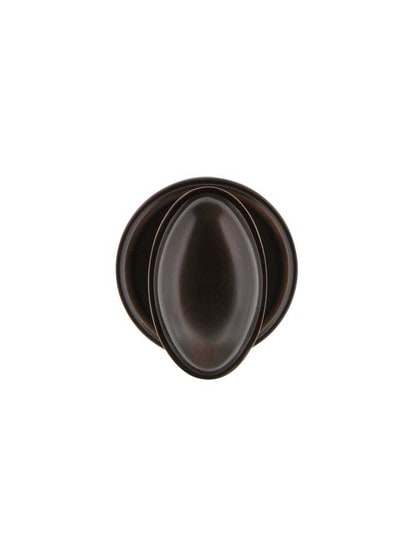

"Refined simplicity" defines the timeless style and charm of Grandeur's Georgetown rosette set with oval knobs. Grandeur’s vintage designs are enhanced with high-tech mechanics, resulting in silky smooth, trouble-free operation unlike anything you’ve ever experienced. Easy and quick installation makes restoration or new construction efficient and exact for professional builders or home owners alike. Superior quality solid brass castings and a lifetime guarantee make Grandeur the perfect choice for your fine home.
Doorset dimensions: Oval brass doorknobs measure 2 11/16" H x 1 5/8" W. Georgetown rosettes are 2 5/8" in diameter.
Latch dimensions: Backset is 2 3/8". Latch case: 1" diameter. Latch face plate: 2 1/4" H x 1" W. Non-standard 2 3/4" backset latch, radius corner latch face plate, radius corner strike plate, and drive-in tubular latch options are available at no additional charge. A "thick door kit" for doors over 1 7/8" in thickness is available for a small fee. Please call for details.
Tubular Latch: A cylindrical door latch that is installed into the edge of the door and is operated by a knob or lever via the spindle. Learn about hardware >
Click here or on the section header to hide this section.
Door Set Functions
Function
Description
Includes
Double Dummy
No latch or lock - the knobs on this doorset don't turn or operate a latch. Typically found on closet doors or the passive door in a set of double doors. This set can't be installed on a pre-drilled door.
2 Knobs
2 Backplates
Matching Screws
All necessary mounting accessories
Passage
Latch but no lock - The knobs turn and operate a latch but there is no locking ability. Typically found on interior doors that don't need to lock, or doors with a separate deadbolt.
2 Knobs
2 Backplates
1 Passage Latch with matching face plate
1 Matching strike plate
Matching screws
All necessary mounting accessories
Privacy
Latch and lock - This set has a privacy pin next to the knob which is pushed to lock and pulled to unlock. The door can also be unlocked from the outside by pushing a small screwdriver through the emergency release hole. Typically found on bedroom or bathroom doors.
2 Knobs
2 Backplates
1 Privacy Latch with matching face plate and privacy pin
